Gigabyte B860M AORUS ELITE WIFI6E ICE Intel LGA1851 ATX DDR5 Motherboard
R4768.00 Incl. Vat
Or as low as KEY FEATURES:
– ATX Form Factor
– Intel B860 Chipset, Socket LGA 1851
– Supports Intel Core Ultra Series 2 Processors
– 4x DDR5 DIMM Slots, Supports Up To 256GB (4x64GB)
– Supports Up to DDR5-9200 (OC)
– 1x PCIe 5.0 x16 Slot (x16 Physical)
– 1x PCIe 4.0 x4 Slots (x16 Physical)
– 1x M.2 PCIe 5.0 x4 NVMe SSD Slot
– 2x M.2 PCIe 4.0 x4 NVMe SSD Slot
– 4x SATA 3.0 Connectors
– 1x USB 4 Type-C port (DisplayPort)
– 4x USB 2.0/1.1 ports, 4x USB 3.2 Gen 1 ports
– 2x USB 3.2 Gen 2 Type-A ports
– 1x DisplayPort, 1x HDMI port, 1x RJ-45 port
– 2x Antenna Connectors (2T2R), 2x audio jacks
– 1x Optical S/PDIF Out Connector
– 802.11ax Tri-Band 160MHz WiFi 6E
– Realtek 2.5 Gigabit Ethernet LAN
– Bluetooth v5.3
– Digital Twin 12+1+2 Phases VRM Solution
– AI Perfdrive – Optimal and Customized BIOS Preset Profiles
– Sensor Panel Link
– VRM Thermal Armor Advanced
– 3 Year Warranty
Description

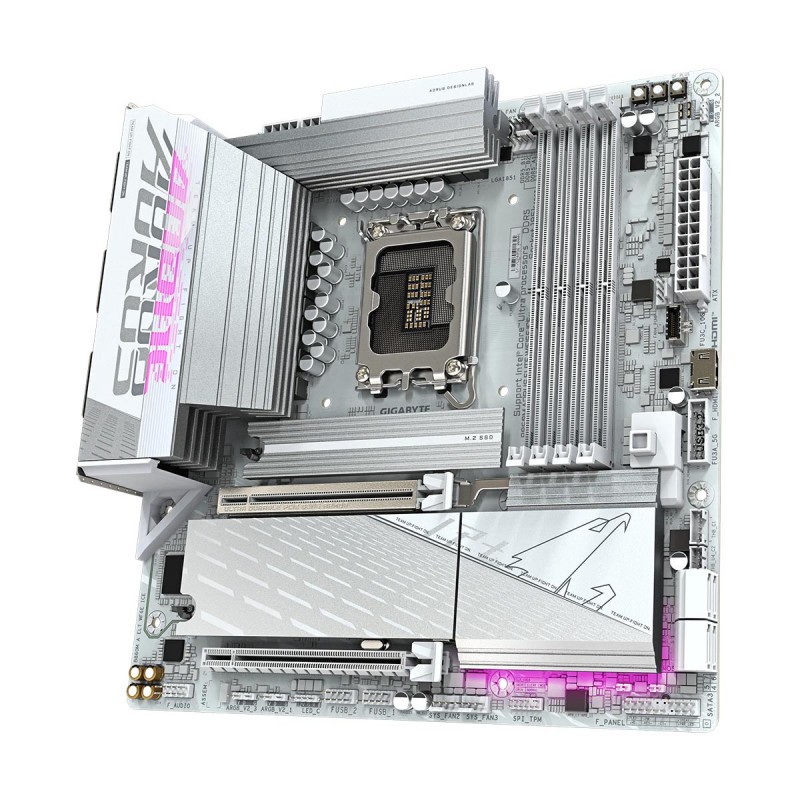

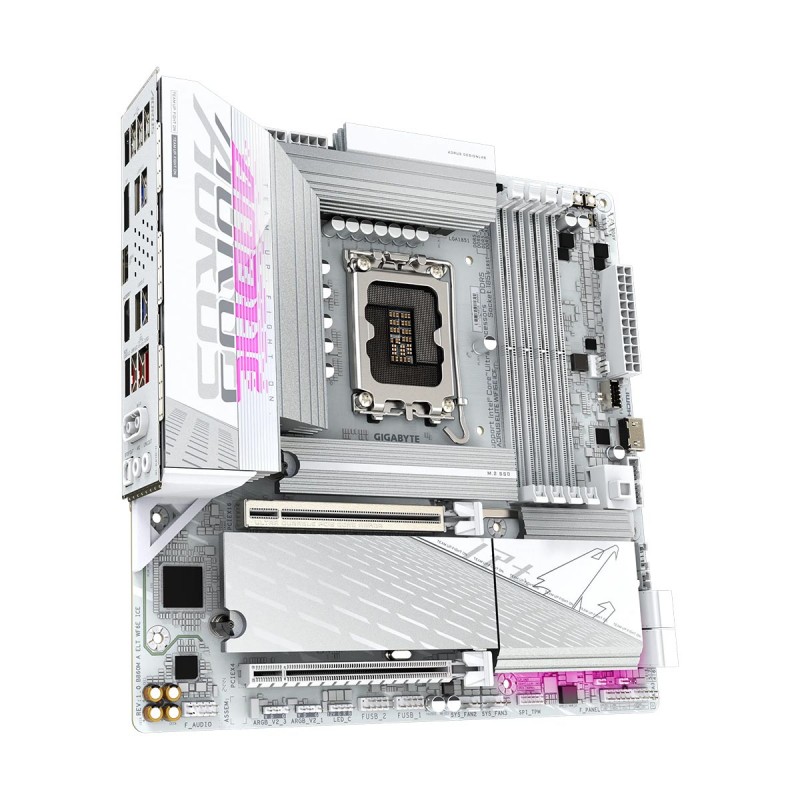

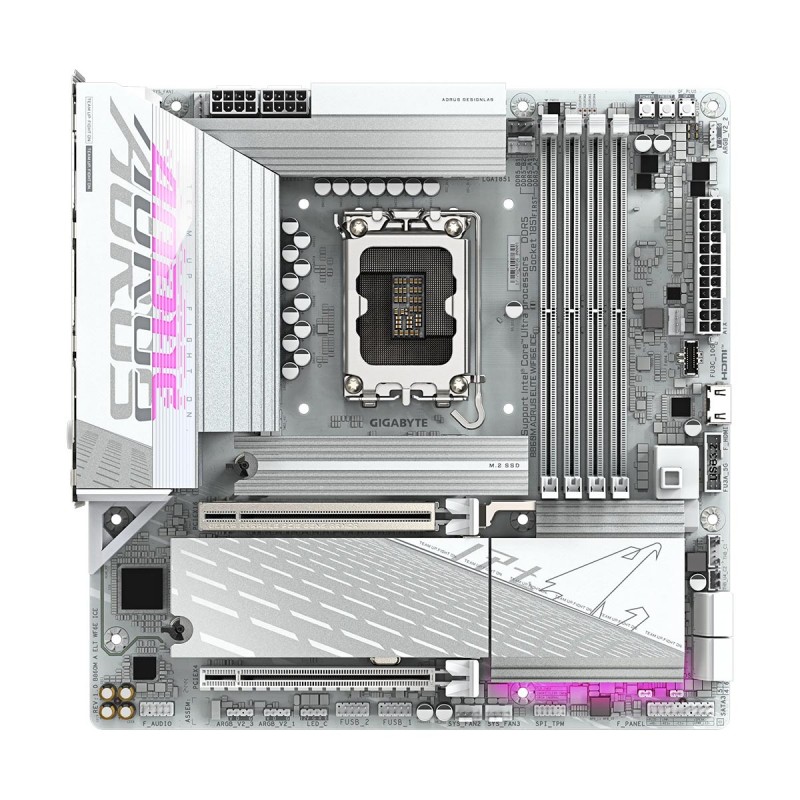

Gigabyte B860M AORUS ELITE WIFI6E ICE Intel LGA1851 ATX DDR5 Motherboard
GA-B860M-A-ELT-WF6E-ICE
Premium Performance with Elegant Aesthetics
The Gigabyte B860M AORUS ELITE WIFI6E ICE combines powerful hardware with a sleek, white ATX design. Built for Intel LGA 1851, this motherboard supports the latest Core Ultra (Series 2) CPUs and offers advanced features like DDR5 memory with D5 Bionic Corsa for seamless overclocking and AI-enhanced BIOS tuning.
Equipped with PCIe 5.0 x16, three M.2 slots (one PCIe 5.0 + two PCIe 4.0), and wired plus wireless connections (including Wi-Fi 6E and 2.5 GbE LAN), it sets a new standard for compact high-performance builds.
Why it Stands Out
-
Robust Power Delivery — Features a 12+1+2 twin digital VRM, 6-layer 2× copper PCB, and solid “UD” power connectors for maximum stability under load.
-
Optimized Memory Performance — Utilizes D5 Bionic Corsa technology for near-instant DDR5 speed enhancements and AI PerfDrive BIOS for smart profile tuning.
-
Future-Ready Expansion — Includes PCIe 5.0 x16, three M.2 slots, Smart Fan 6 thermal support, and solid connectors.
-

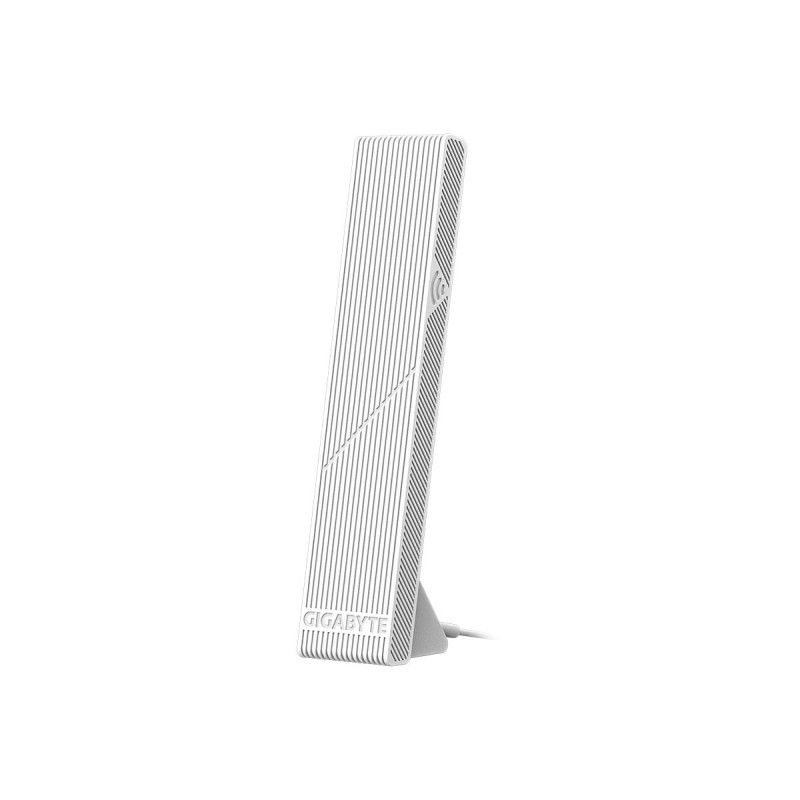

Comprehensive Connectivity — USB4 with DP-Alt, Wi-Fi 6E with ultra-high gain antenna, 2.5 GbE LAN, HDMI, DisplayPort, and full USB suite.
-
User-Friendly Features — EZ-Latch Plus (PCIe & M.2), Q-Flash Plus, Sensor Panel Link, and an easy-to-use BIOS with multi-theme and auto-scanning features.
SPECIFICATIONS |
|
| Brand | Gigabyte |
| Series | AORUS ELITE |
| Model | B860M AORUS ELITE WIFI6E ICE |
| CPU | LGA1851 socket: Support for Intel Core Ultra Processors |
| (Go to GIGABYTE’s website for the latest CPU support list.) | |
| L3 cache varies with CPU | |
| Chipset | Intel B860 Express Chipset |
| Memory | Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules |
| 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.) | |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: |
| – 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz | |
| * Support for DisplayPort 2.1 version. | |
| – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz | |
| * Support for DisplayPort 2.1 version. | |
| – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz | |
| * Support for HDMI 2.1 version and HDCP 2.3. | |
| – 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz | |
| * Support for HDMI 1.4 version.(Graphics specifications may vary depending on CPU support.) | |
| Support for up to quad-display at the same time | |
| Audio | Realtek Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| Support for S/PDIF Out | |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication Module | Intel Wi-Fi 6E AX211 (PCB rev. 1.0) |
| – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
| – BLUETOOTH 5.3 | |
| – Support for 11ax 160MHz wireless standard | |
| Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1) | |
| – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
| – BLUETOOTH 5.3 | |
| – Support for 11ax 160MHz wireless standard | |
| (Actual data rate may vary depending on environment and equipment.) | |
| Expansion Slots | CPU: |
| – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) | |
| * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| Chipset: | |
| – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
| Storage Interface | CPU: |
| – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) | |
| Chipset: | |
| – 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) | |
| – 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0×4/x2 SSD support) (M2N_SB) | |
| – 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| USB | CPU: |
| – 1 x USB4 USB Type-C port on the back panel | |
| Chipset: | |
| – 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header | |
| – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| – 2 x USB 3.2 Gen 1 ports available through the internal USB header | |
| Chipset+USB 3.2 Gen 1 Hub: | |
| – 4 x USB 3.2 Gen 1 ports on the back panel | |
| Chipset+2 USB 2.0 Hubs: | |
| – 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 2 x 8-pin ATX 12V power connectors | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 3 x system fan headers | |
| 1 x system fan/water cooling pump header | |
| 3 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 3 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB Type-C header, with USB 3.2 Gen 2 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 2 x Thunderbolt add-in card connectors | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1 x HDMI port* | |
| 1 x power button | |
| 1 x reset button | |
| 1 x Q-Flash Plus button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
| * Actual support may vary by CPU. | |

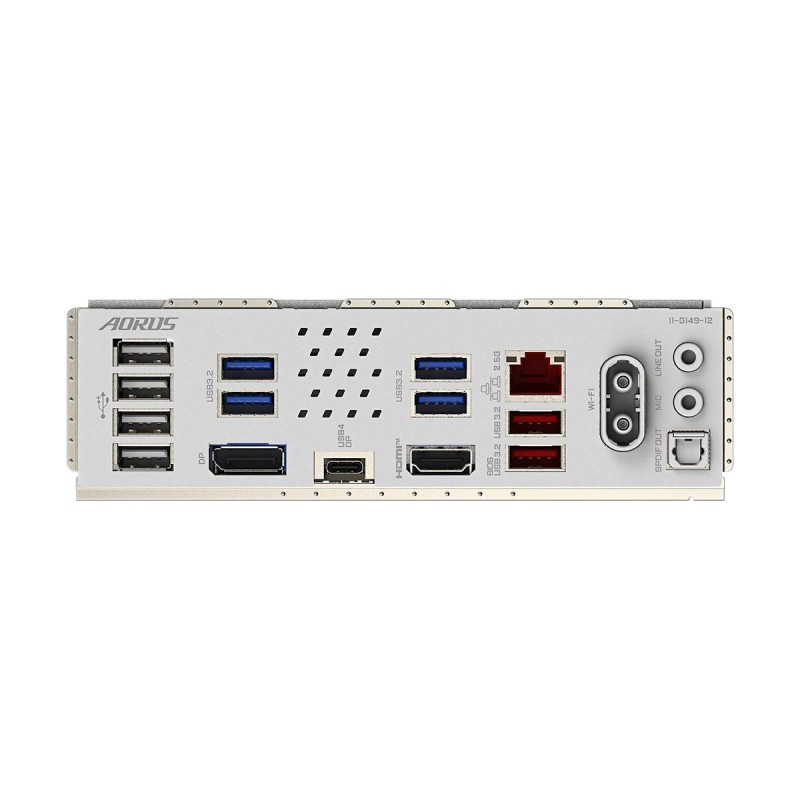

| Back Panel Connectors | 4 x USB 2.0/1.1 ports |
| 4 x USB 3.2 Gen 1 ports | |
| 1 x DisplayPort* | |
| 1 x USB4 USB Type-C port (DisplayPort*) | |
| 1 x HDMI port* | |
| 1 x RJ-45 port | |
| 2 x USB 3.2 Gen 2 Type-A ports (red) | |
| 2 x antenna connectors (2T2R) | |
| 2 x audio jacks | |
| 1 x optical S/PDIF Out connector | |
| * Actual support may vary by CPU. | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor |
| 24.4cm x 24.4cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
