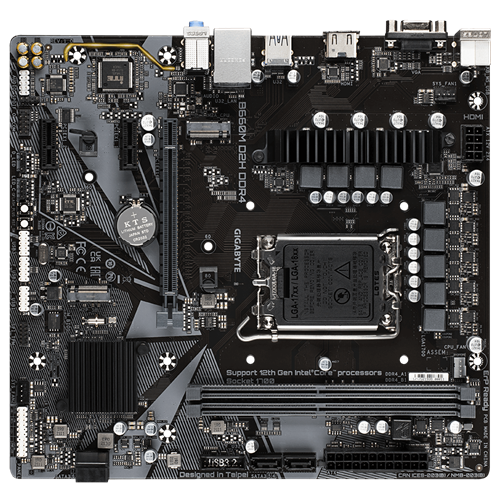

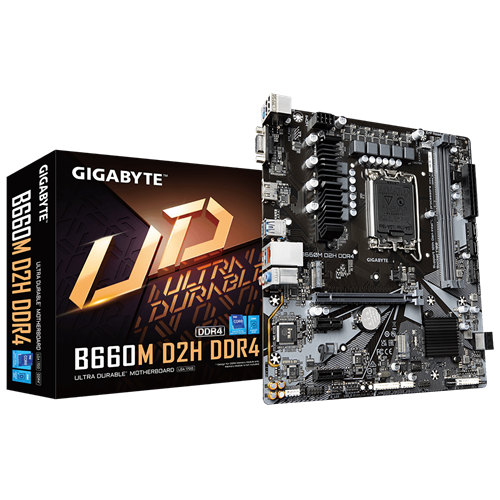

Description
Part numberGA-B660M-D2H-DDR4
-
- Supports 12th Gen Intel® Core™ Series Processors
-
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
-
- 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink
-
- Fast 2.5 GbE GAMING LAN with Bandwidth Management
-
- Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2
-
- High Quality Audio Capacitors and Audio Noise Guard
-
- RGB FUSION 2.0 supports Addressable LED & RGB LED Strips
-
- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
-
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
SPECIFICATIONS |
|
| Brand | Gigabyte |
| Series | B660M Series |
| Model | GA-B660M-D2H-DDR4 |
| CPU Support | Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel B660 Express |
| Memory | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz Memory Modules |
| 2x DDR4 DIMM Sockets Supporting up to 64 GB (32GB Single DIMM Capacity) of System Memory | |
| Dual Channel Memory Architecture | |
| Support for Extreme Memory Profile (XMP) Memory Modules | |
| Display | |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: |
| 1x VGA D-Sub port, supporting a maximum resolution of 1920×1200 @ 60 Hz | |
| 1x HDMI 2.1 port, supporting a maximum resolution of 4096×2160@60 Hz | |
| NOTE: Graphics specifications may vary depending on CPU support. | |
| Support for up to 3 displays at the same time | |
| HDCP Support | Yes, HDCP 2.3 compliant |
| Audio | |
| Codec | Realtek Audio CODEC |
| Features | High Definition Audio |
| 2/4/5.1/7.1-channel | |
| NOTE: 7.1-channel Audio requires changing driver settings. Consult the motherboard manual for more information. | |
| Networking | |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| WiFi | N/A |
| Bluetooth | N/A |
| Expansion | |
| PCI Express | 1x PCIe 4.0 x16 physical, x16 electrical slot |
| 2x PCIe 3.0 x1 slots | |
| Storage | |
| CPU Direct | 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
| Intel B660 Chipset | 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
| 4 x SATA 6Gb/s connectors | |
| Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 | |
| Intel Optane Memory Ready | |
| * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset. | |
| USB Connectivity | |
| Intel B660 Chipset | 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) | |
| 3rd Party Chipset | 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal Connectivity | |
| Internal I/O | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x CPU fan header | |
| 2x system fan headers | |
| 1x addressable LED strip header | |
| 1x RGB LED strip header | |
| 2x M.2 Socket 3 connectors | |
| 4x SATA 6Gb/s connectors | |
| 1x front panel header | |
| 1x front panel audio header | |
| 1x S/PDIF Out header | |
| 1x USB 3.2 Gen 1 header | |
| 3x USB 2.0/1.1 headers | |
| 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1x serial port header | |
| 1x Q-Flash Plus button | |
| 1x reset button | |
| 1x reset jumper | |
| 1x Clear CMOS jumper | |

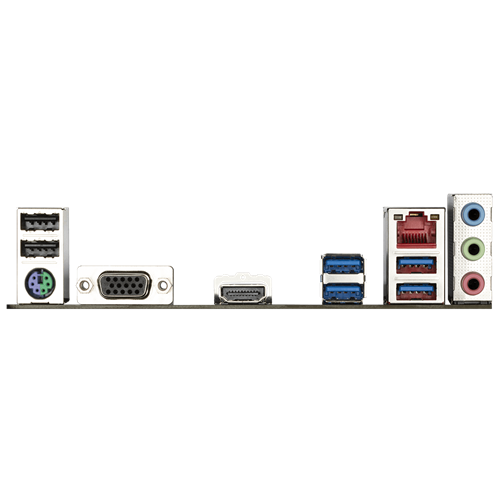

| Back Panel Connectors | 1x PS/2 keyboard/mouse port |
| 1x D-Sub port | |
| 1x HDMI port | |
| 4x USB 3.2 Gen 1 ports | |
| 2x USB 2.0/1.1 ports | |
| 1x RJ-45 port | |
| 3x audio jacks | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Fan fail warning | |
| Fan speed control (4-Pin PWM) | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Operating System | Support for Windows 11 64-bit |
| Support for Windows 10 64-bit | |
| Form Factor | Micro ATX Form Factor |
| 244mm x 225mm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
