Description
Part numberGV-N3050EAGLE OC-6GD
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features two unique blade fans, alternate spinning and 3D active fan, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
ULTRA DURABLE
ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | Eagle Series |

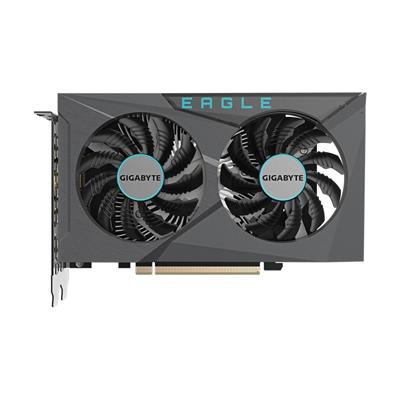

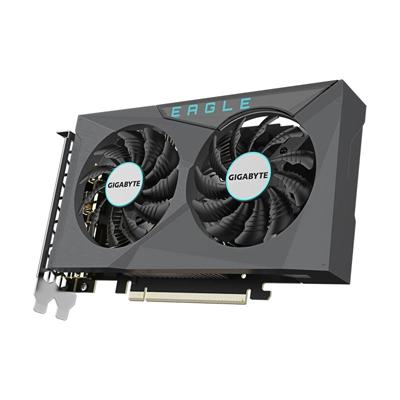

| Model | GeForce RTX 3050 EAGLE OC 6G (GV-N3050EAGLE-OC-6GD) |
| Chipset | |
| GPU | GeForce RTX 3050 |
| Chipset Manufacturer | NVIDIA |
| Interface | PCIe 4.0 x16 |
| Base Clock | 1042 MHz |
| Boost Clock | Up to 1500 MHz |
| CUDA Cores | 2304 |
| GPU Architecture | NVIDIA Ampere |
| Memory | |
| Effective Memory Clock | 14 Gbps |
| Memory Size | 6GB |
| Memory Interface | 96-bit |
| Memory Type | GDDR6 |
| 3D API | |
| DirectX | Microsoft DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Vulkan | Vulkan RT API |
| Connectivity | |
| Ports | 2x HDMI 2.1 Ports (Up to 8K @ 60Hz) |
| 2x DisplayPort 1.4a Port (Up to 8K @ 30Hz) | |
| HDCP Support | HDCP 2.3 |
| Multi-Monitor Support | 4x simultaneous |
| Maximum Digital Resolution | 7680 x 4320 |
| VR Ready | Yes |
| General | |
| SLI Support | N/A |
| Features | WINDFORCE 2X Cooling System with Alternate Spinning 3D Active Fans |
| Bus Powered | |
| Gigabyte Control Center Software | |
| Micro-ATX Friendly Compact Design | |
| 2nd Gen Ray Tracing Cores | |
| 3rd Gen Tensor Cores | |
| PCI Express Gen 4 | |
| Real-Time Ray Tracing Technology | |
| NVIDIA DLSS | |
| NVIDIA GeForce Experience | |
| NVIDIA Ansel | |
| NVIDIA FreeStyle | |
| NVIDIA ShadowPlay | |
| NVIDIA Highlights | |
| NVIDIA G-SYNC | |
| Game Ready Drivers | |
| NVIDIA Studio Drivers | |
| NVIDIA GPU Boost | |
| NVIDIA Encoder, 7th Generation | |
| NVIDIA Decoder, 5th Generation | |
| Power Requirements | |
| Total Graphics Power (TGP) | 75W |
| Recommended Power Supply | 300W |
| Power Connector | N/A, slot powered |
| Physical Aspects | |
| Form Factor | ATX |
| Slot Width | 2 Slot |
| Dimensions | 192 x 117 x 36mm (L x W x H) |
| Warranty Information | |
| Warranty | 3 Year Warranty |
