Description

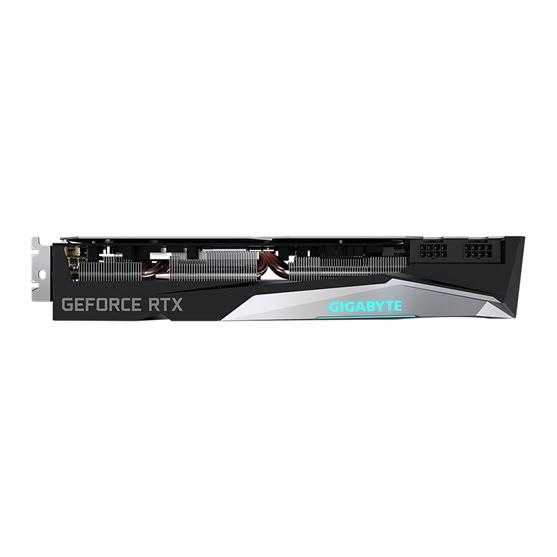

Part numberGV-N306TXGAMING-OC-8GD
WINDFORCE 3X Cooling System
The WINDFORCE 3X cooling system features 3X80mm unique blade fans, alternate spinning, 5 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
Alternate Spinning
Reduce the turbulence of adjacent fans and increase air pressure.
Smooth Airflow
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D Active Fan
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
Unique Blade Fan
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
Graphene Nano Lubricant
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
Screen Cooling
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
Heat Pipes Direct Touch
The shape of the pure copper heat pipe maximises the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
RGB Fusion
With 16.7M customizable colour options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER
Metal Back Plate
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
Friendly PCB Design
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Extreme Durability and Overclocking
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
Gigabyte Control Center
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | Gaming OC Series |
| Model | Geforce RTX 3060 Ti GAMING OC D6X 8G (GV-N306TXGAMING-OC-8GD) |
| Chipset | |
| GPU | GeForce RTX 3060 Ti |
| Chipset Manufacturer | NVIDIA |
| Interface | PCIe 4.0 x16 |
| Base Clock | 1410MHz |
| Boost Clock | 1755 MHz |
| CUDA Cores | 4864 |
| GPU Architecture | NVIDIA Ampere |
| Memory | |
| Effective Memory Clock | 19 Gbps |
| Memory Size | 8GB |
| Memory Interface | 256-bit |
| Memory Type | GDDR6X |
| 3D API | |
| DirectX | Microsoft DirectX 12 Ultimate |
| OpenGL | 4.6 |
| Vulkan | Vulkan RT API |
| Connectivity | |
| Ports | 2x DisplayPort 1.4a |
| 2x HDMI 2.1 | |
| Multi-Monitor Support | 4 |
| Maximum Digital Resolution | 7680 x 4320 @60Hz |
| HDCP | v2.3 |
| VR Ready | Yes |
| General | |
| SLI Support | N/A |
| Features | WINDFORCE 3X Cooling System |
| Gigabyte RGB Fusion 2.0 | |
| Direct Touch Heatpipes | |
| Gigabyte Control Center Utility | |
| 2nd Gen Ray Tracing Cores | |
| 3rd Gen Tensor Cores | |
| PCI Express Gen 4 | |
| Real-Time Ray Tracing Technology | |
| NVIDIA DLSS | |
| NVIDIA GeForce Experience | |
| NVIDIA Ansel | |
| NVIDIA FreeStyle | |
| NVIDIA ShadowPlay | |
| NVIDIA Highlights | |
| NVIDIA G-SYNC | |
| Game Ready Drivers | |
| NVIDIA Studio Drivers | |
| NVIDIA GPU Boost | |
| NVIDIA Encoder, 7th Generation | |
| NVIDIA Decoder, 5th Generation | |
| Recommended Power Supply | 750W |
| Power Connector | 2x 8-Pin PEG Connectors |
| Physical Aspects | |
| Form Factor | ATX |
| Slot Width | 2.5 Slot |
| Dimensions | 286 x 115 x 51mm (W x H x D) |
| Warranty Information | |
| Warranty | 3 Year Warranty |
