Description
Part numberGV-N3080EAGLE-12GD
Prepare yourself for an unforgettable gaming experience with the Gigabyte RTX 3080 Eagle 12GB GPU, powered by the all-new NVIDIA GeForce Ampere architecture boasting 2nd Generation RT cores and 3rd Generation Tensor Cores to bring you the biggest graphical performance leap of the modern era. The RTX 3080 Eagle features the renowned WindForce 3x cooling system to keep all that power in check with its alternate spinning unique bladed fans to give you whisper quiet unprecedented high efficiency heat dissipation. A protective metal backplate not only enhances the aesthetics of the card but also enhances the structure to provide full protective coverage and with support for RGB Fusion 2.0 you have access to 6.7M customisable colour options and numerous lighting effects, you can choose lighting effects or synchronise with other AORUS devices. Welcome to the future of gaming with GeForce 3080 12GB.
1440 MHz Core Clock
1710 MHz Boost Clock
12GB GDDR6X Memory
Expert Cooling like No Other

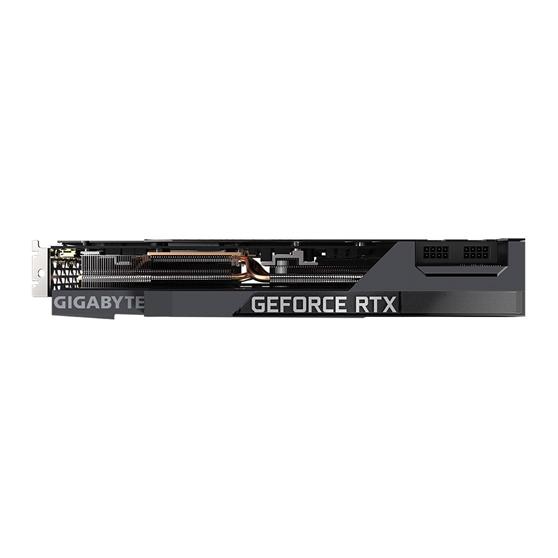

The WINDFORCE 3X cooling system features 2 x 90mm and 1 x 80mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate direct touch GPU and 3D active fan and Screen cooling, which together provide high efficiency heat dissipation. The Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure. The adjacent fans turn in the opposite direction so that the airflow direction between the two fans is the same. The 3D Active Fan offers semi-passive cooling, and the fans remain off when the GPU is in a low load or low power game.
Made to Last for Years to Come
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface. Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation
LARGE COPPER PLATE & HEAT-PIPE
With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.
Create Ambience inside your PC
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
Expert Protection for Superior Longevity

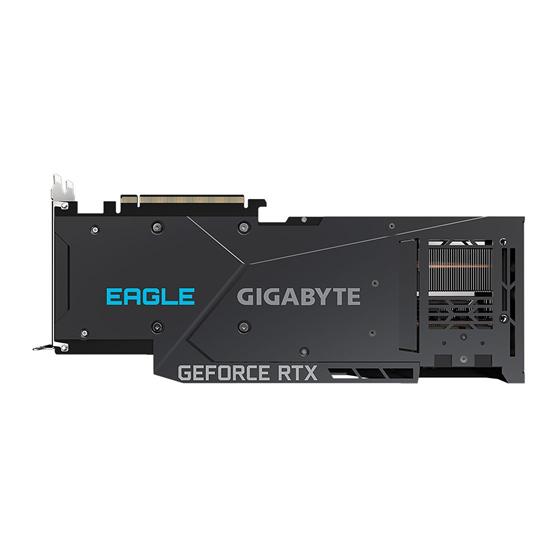

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and a longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Fine-Tune Every Setting with Ease
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
NVIDIA Ampere Architecture
3RD GEN TENSOR CORES UP TO 2X THROUGHPUT
NEW SM 2X FP32 THROUGHPUT
DLSS AI Acceleration
NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has arrived to gaming.
Ultimate Ray Tracing And AI
Only NVIDIA’s RTX platform includes dedicated RT Cores for ray tracing and Tensor Cores for AI that enable groundbreaking technologies at breakthrough speed. Experience today’s biggest blockbusters like never before. RTX. It’s On.
NVIDIA Reflex Dynamically Reduces System Latency
NVIDIA Reflex delivers the ultimate competitive advantage. The lowest latency. The best responsiveness. Powered by GeForce RTX™ 30 Series GPUs and NVIDIA® G-SYNC® monitors. Acquire targets faster, react quicker, and increase aim precision through a revolutionary suite of technologies built to optimise and measure system latency for competitive games.
Create as Fast as your Imagination
Take your creative projects to a new level with GeForce RTX 30 Series GPUs. Delivering AI-acceleration in top creative apps. Backed by the NVIDIA Studio platform of dedicated drivers and exclusive tools. And built to perform in record time. Whether you’re rendering complex 3D scenes, editing 8K video, or livestreaming with the best encoding and image quality, GeForce RTX GPUs give you the performance to create your best.
Transform any Room Into your Home Studio
Live streamers can now level up their game even further with the new NVIDIA Broadcast app. It upgrades any room into a home broadcast studio by transforming standard webcams and microphones into smart devices through the power of AI. The Broadcast app offers three AI-powered features which are: Noise Removal, Virtual Background and Auto frame so the focus always remains on you.
DirectX Raytracing Allows Incredibly Realistic Graphic Effects
DIRECTX 12 ULTIMATE OFFERS FEATURES LIKE RAY TRACING AND VARIABLE RATE SHADING
DirectX Raytracing allows games to simulate how light works in real life, providing incredibly realistic and beautiful graphics effects like global illumination, reflections, and shadows.
NVIDIA has partnered closely with Microsoft to enable full DXR support on GeForce GPUs. GeForce RTX GPUs were designed from the start for the extreme demands of ray-tracing workloads. Specialised RT cores, found only on GeForce RTX graphics cards, provide billions of rays per second of performance, and up to 3X the frame rates with DXR games and applications. This makes ray tracing at real-time frame rates possible for the first time.
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | GeForce RTX 30 Series |
| Model | GV-N3080EAGLE-12GD |
| Chipset | |
| GPU | GeForce RTX 3080 |
| Chipset Manufacturer | NVIDIA |
| Interface | PCI-E 4.0 x16 |
| Base Clock | 1260MHz |
| Boost Clock | 1710MHz |
| CUDA Cores | 8960 |
| GPU Architecture | NVIDIA Ampere Architecture |
| Memory | |
| Effective Memory Clock | 19000MHz |
| Memory Size | 12GB |
| Memory Interface | 384-bit |
| Memory Type | GDDR6X |
| 3D API | |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Connectivity | |
| Ports | 3x DisplayPort 1.4a |
| 2x HDMI 2.1 | |
| HDCP Support | |
| Multi-Monitor Support | 4x Displays |
| Maximum Digital Resolution | 7680×4320 |
| VR Ready | Yes |
| General | |
| Features | NVIDIA Ampere Streaming Multiprocessors |
| 2nd Generation RT Cores | |
| 3rd Generation Tensor Cores | |
| NVIDIA Ampere Architecture | |
| Real-Time Ray Tracing Technology | |
| NVIDIA DLSS Ground-breaking AI Rendering Technology | |
| Windforce 3x Cooling System | |
| Gigabyte RGB Fusion 2.0 Technology | |
| Protective Metal Back Plate | |
| Power Requirements | |
| Recommended Power Supply | 750W |
| Power Connector | 2x 8-Pin |
| Physical Aspects | |
| Form Factor | ATX |
| Slot Width | 2.5 Slot |
| Dimensions | 320 x 128 x 56mm |
| Warranty Information | |
| Warranty | 3 Year Warranty |
