Description
Part numberGV-N4090GAMING-24GD
Hyperrealistic, Hyperfast
The Ada architecture unleashes the full glory of ray tracing, which simulates how light behaves in the real world. With the power of RTX 40 Series and third-gen RT Cores, you can experience incredibly detailed virtual worlds like never before.
The Performance Multiplier, Powered by AI
DLSS is a revolutionary breakthrough in AI-powered graphics that massively boosts performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional high-quality frames.
Victory Measured in Milliseconds
NVIDIA Reflex and GeForce RTX 40 Series GPUs deliver the lowest latency and best responsiveness for the ultimate competitive advantage. Built to optimise and measure system latency, Reflex provides faster target acquisition, quicker reaction times, and the best aim precision for competitive games.
Your Ideas, Accelerated by NVIDIA Studio
Take your creative projects to the next level with NVIDIA Studio. Powered by new dedicated hardware, RTX 40 Series unlocks unmatched performance in 3D rendering, video editing, and graphic design. Experience feature-rich RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.

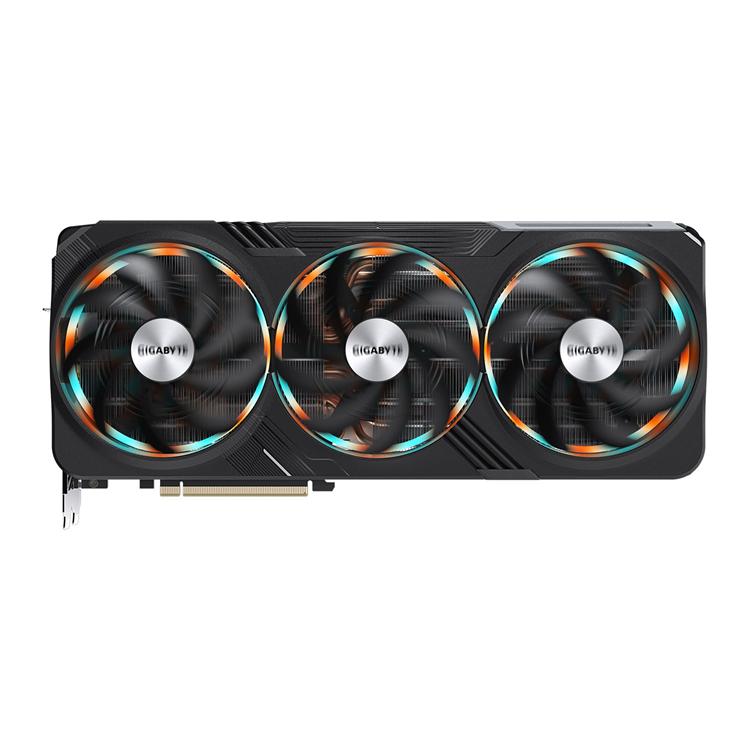

WINDFORCE Cooling System
The WINDFORCE cooling system features three 110mm unique blade fans, alternate spinning, 10 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
Alternate Spinning
Reduce the turbulence of adjacent fans and increase airflow pressure.
Part number3D Active Fan
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
Unique Blade Fan
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
Graphene Nano Lubricant
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
Screen Cooling
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
Large Vapor Chamber & Heat-Pipe
The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
RGB Fusion
The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronise with other devices in GIGABYTE CONTROL CENTER.

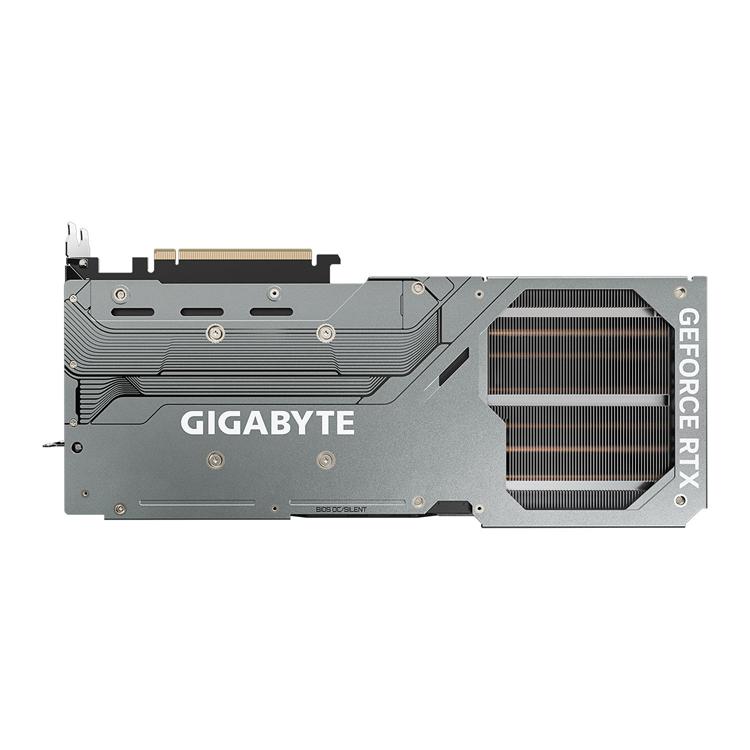

Protection Metal Back Plate
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
Dual BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
Anti-Sag Bracket
The new anti-sag bracket is tailored to each graphics card. It provides optimal reinforcement and better overall visual appearance.
Ultra Durable
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS (on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
Friendly PCB Design
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Gigabyte Control Center
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | Gaming |
| Model | GV-N4090GAMING-24GD |
| Chipset | |
| GPU | GeForce RTX 4090 |
| Chipset Manufacturer | NVIDIA |
| Interface | PCIe 4.0 x16 |
| Base Clock | 2235MHz |
| Boost Clock | 2520MHz |
| CUDA Cores | 16384 |
| GPU Architecture | NVIDIA Ada Lovelace |
| Memory | |
| Effective Memory Clock | 21.2 Gbps |
| Memory Size | 24GB |
| Memory Interface | 384-Bit |
| Memory Type | GDDR6X |
| 3D API | |
| DirectX | 12 Ultimate (12_2) |
| OpenGL | 4.6 |
| Vulkan | 1.3 |
| Connectivity | |
| Ports | 1x HDMI 2.1 |
| 3x DisplayPort 1.4a | |
| HDCP Support | 2.3 |
| Multi-Monitor Support | 4 |
| Maximum Digital Resolution | 7680 x 4320 @60Hz |
| VR Ready | Yes |
| General | |
| SLI Support | No |
| Features | NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency |
| 4th Generation Tensor Cores: Up to 2X AI performance | |
| 3rd Generation RT Cores: Up to 2X ray tracing performance | |
| NVIDIA DLSS 3.0 | |
| NVIDIA Reflex | |
| WINDFORCE cooling system | |
| RGB Fusion | |
| Dual BIOS | |
| Protection metal back plate | |
| Anti-sag bracket | |
| Power Requirements | |
| Recommended Power Supply | 1000W |
| Power Consumption | 450W |
| Power Connector | 1x 16-Pin |
| Physical Aspects | |
| Form Factor | ATX |
| Slot Width | 4-Slot |
| Dimensions | 340 x 150.2 x 75.2 mm |
| Warranty Information | |
| Warranty | 3 Year Warranty |
