Gigabyte GeForce RTX 4090 Windforce 24GB GDDR6X 384-Bit PCIe 4.0 Graphics Card

Gigabyte GeForce RTX™ 4090 WINDFORCE 24G – Apex Of Cooling

• • NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency

• • 4th Generation Tensor Cores: Up to 2X AI performance

• • 3rd Generation RT Cores: Up to 2X ray tracing performance

• • Powered by GeForce RTX™ 4090

• • Integrated with 24GB GDDR6X 384-bit memory interface

• • WINDFORCE cooling system

• • Dual BIOS

• • Protection metal back plate

WINDFORCE Cooling System
The WINDFORCE cooling system features three 100mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

Alternate Spinning
Reduce the turbulence of adjacent fans and increase airflow pressure.

Smooth Airflow
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

3D Active Fan
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

Unique Blade Fan
The airflow is split by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

Double Ball Bearing
The double ball bearing structure has better heat endurance and efficiency than sleeve structure.

Screen Cooling
Extended heatsink design allows air flow to pass through, providing better heat dissipation.

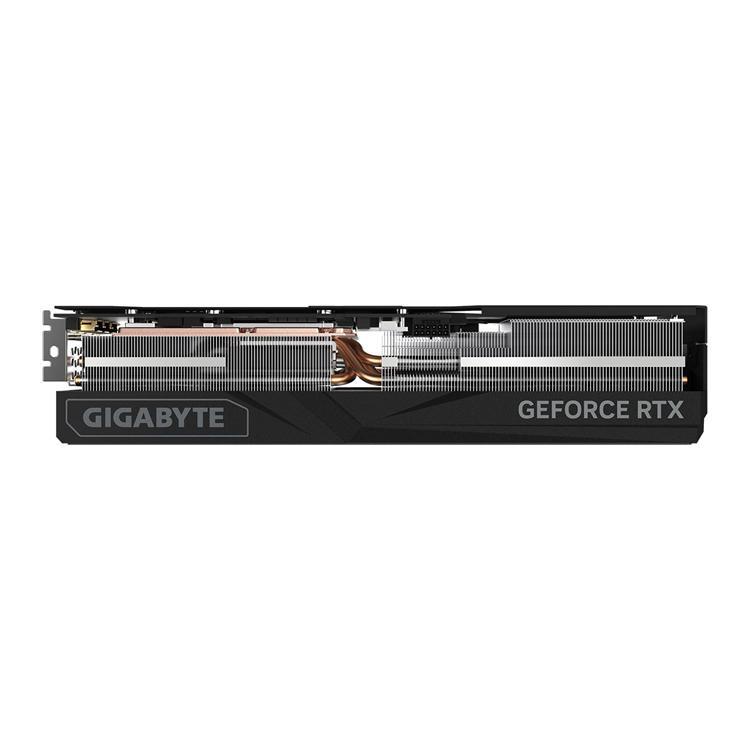

Large Vapor Chamber & Heat-pipe
The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

Dual BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.

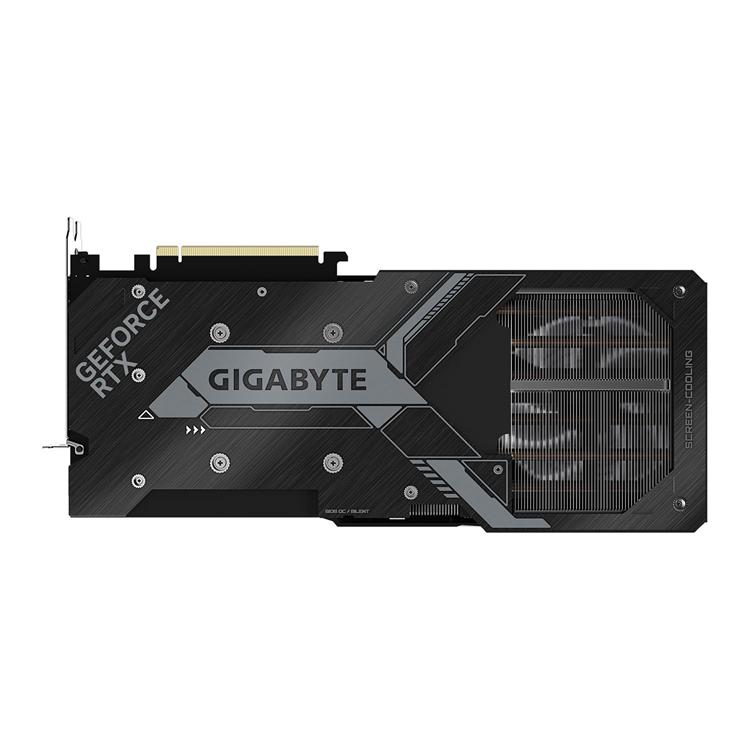

Protection Metal Back Plate
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

Power Indicators
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.

Ultra Durable
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

Friendly PCB Design
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

Gigabyte Control Center
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Learn More

Additional Information:

Visit the Manufacturer Product Web Page for Full Details
System Requirements

• • Supported OS: Windows®

• • PCI Express 4.0 x16 slot

• • Recommended 850W power supply with 1 x 16-pin PCI-E power connector

Make and Model	Gigabyte GeForce RTX™ 4090 WINDFORCE 24G Graphics Card
Part Number	GV-N4090WF3-24GD
Chipset	GeForce® RTX™ 4090
CUDA Cores	16384
Core Clock	2520 MHz
Memory	24GB GDDR6X
Memory Clock	21 Gbps
Memory Interface	384-bit
Memory Bandwidth	N/A
Bus Interface	PCI Express 4.0
SLI Capable	N/A
Cooler	WINDFORCE Cooling System w/ 3x 100mm fans
Lighting	RGB lighting w/ RGB Fusion
Resolution & Refresh Rate	Up to 7,680 x 4,320
Max. Display Support	4
Output	3 x DisplayPort 1.4 1 x HDMI 2.1
HDCP Support	Yes
DirectX Support	12 Ultimate
OpenGL Support	4.6
Power Consumption	N/A
Power Connectors	1 x 16-pin power connector
Dimensions	331 x 150 x 70 mm
Weight	N/A

• • Gigabyte GeForce RTX™ 4090 WINDFORCE 24G PCI-E Graphics Card

• • One 16-pin to Four 8-pin Power Adapter

• • VGA Holder

• • Warranty Information
