Description

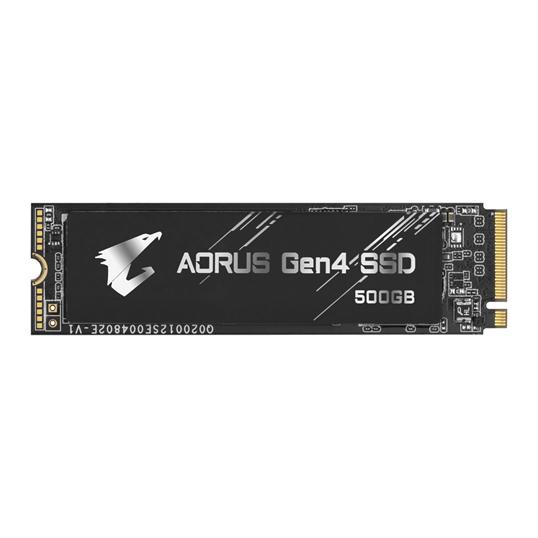

500GB AORUS M.2 NVMe Gen4 Solid State Drive
BRINGING FORTH THE PCIE 4.0 ERA
The fourth Generation PCI-Express 4.0 AORUS SSD can drastically improve loading times of your PC in the NVMe M.2(2280) Form factor. The Phison PS5016-E16 controller, made by 28nm manufacturing technology offers excellent performance and endurance at a great value and is ideal for faster and smoother gaming, streaming, and graphics intensive rendering. The SSD tool box also helps provide ways to increase longeivity and get the most from your SSD. This is all backed by an impressive 5 year warranty for the extra peace of mind.
500GB M.2 PCIe 4.0 NVMe Storage 2280
5000 / 2500 MBs Maximum Read / Write
400K / 550K IOPS Random Read / Write
500GB M.2 PCIe 4.0 NVMe Storage 2280
5000 / 2500 MBs Maximum Read / Write
400K / 550K IOPS Random Read / Write
World First PCIe 4.0×4 Controller
ADOPTING THE LATEST 3D TLC NAND FLASH
Introducing the World First PCIe 4.0×4 Controller, Phison PS5016-E16 controller, made by 28nm manufacturing technology. The cutting-edge fabrication process guarantees PS5016-E16 has enough compute power for ECC processing when implementing the latest 3D TLC NAND flash. PS5016-E16 also features eight NAND channels with 32 CE targets, DDR4 DRAM caching, and a PCIe 4.0×4 interface. As for features, the chip supports the NVMe 1.3 protocol, LDPC error correction, and Wear Leveling, Over-Provision technologies to improve reliability and durability of SSDs.
NAND Flash Selected for High Quality and Performance
SELECTED HIGH SPEED 3D TLC NAND FLASH
The selected and high quality NAND Flash optimizes circuitry and architecture by increasing to 96 layers for higher storage space per unit area. 800MT/s throughput on the AORUS Gen 4 SSD far exceeds that of PCIe 3.0×4 devices for superior storage performance.
Xtreme Storage Performance
FASTER AND MORE RESPONSIVE GAMEPLAY
With the new PCIe 4.0 controller, AORUS Gen 4 SSD delivers blazing speeds: up to 5,000 MB/s for sequential read, and up to 4,400MB/s sequential write. Sequential Read performance of PCIe 4.0 SSDs is up to 40% faster than PCIe 3.0 SSDs. Get ready to enter the next generation of computing with faster and smoother, gaming, streaming, and graphics intensive rendering.
Check your SSD’s Health Using the Tool Box
MONITOR THE SSD’S STATUS WITH EASE
The freshly restructured SSD Tool Box is an innovative application that assists users by monitoring SSD Status, providing general information such as model name, FW version, health condition, and it also identifies sensor temperature. Furthermore, users can clear all the data with the Secure Erase function.
Guaranteed Quality from High Standard Testing
5 YEAR LIMITED WARRANTY FOR PEACE OF MIND
• Form Factor: M.2 2280
• Interface: PCI-Express 4.0×4, NVMe 1.3
• Total Capacity: 2000GB*
• Sequential Read Speed : up to 5000 MB/s**
• Sequential Write speed : up to 4400 MB/s**
• Wear Leveling, Over-Provision technologies
• TRIM & S.M.A.R.T supported
*Note: 1GB = 1 billion bytes. Actual useable capacity may vary.
**Speeds based on internal testing. Actual performance may vary.
| Specifications | |
|---|---|
| Capacity | 500GB |
| Edition | AORUS |
| Form Factor | M.2 (2280) |
| Height | |
| Interface | PCIe 4.0 (x4) |
| Host Controller Interface | NVMe 1.3 |
| Controller | |
| Flash Memory Type | TLC 3D NAND |
| Max. Read | 5000 MB/s |
| Max. Write | 2500 MB/s |
| DRAM Cache Memory | 512MB |
| DRAM Cache Memory Type | DDR4 |
| Max. Random Read 4K | 400,000 IOPS |
| Max. Random Write 4K | 550,000 IOPS |
| Latency | N/A |
| Special Features |
|
| Power Consumption (active) | 5.9W (Read), 4.5W (Write) |
| Max. Endurance Rating | |
| MTBF | 1,770,000 Hours |
| Max. Operating Vibration | |
| Max. Non-operating Vibration | |
| Max. Operating Shock | |
| Max. Non-operating Shock | |
| Connectivity | 1 x M.2 (PCIe) |
| OS Support | |
| Bracket | N/A |
| Dimensions | |
| Weight | |
| Package Type | Retail |
