July 18, 2023Gigabyte H510M H Motherboard
R1750,00 Incl. Vat
KEY FEATURES:
– Micro-ATX Form Factor
– AMD H510 Chipset
– Socket LGA1200
– 2x DDR4 DIMM Slots, Supports Up to 64GB
– 1x PCIe 4.0 x16, 1x PCIe 3.0 x1 Slots
– 4x SATA 6Gb/s Ports, 1x M.2 Slot
– 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1
– 1 x D-Sub Port, 1 x HDMI Port
– Realtek GbE LAN chip (1 Gbit/100 Mbit)
– Realtek Audio CODEC
– 3 Year Warranty

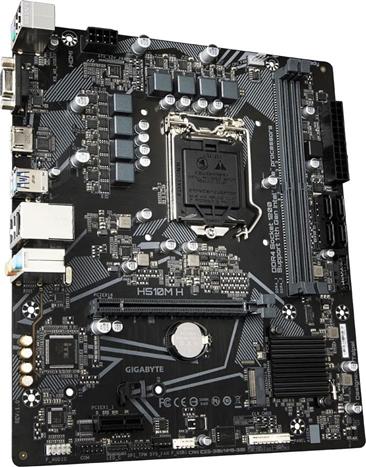

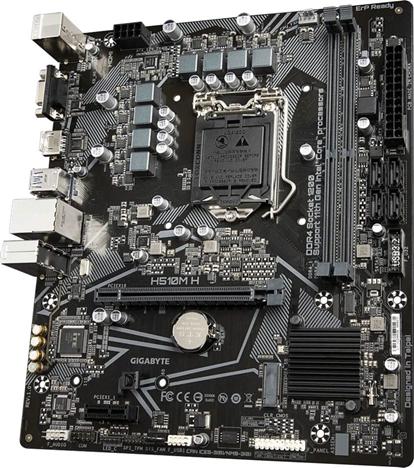

Gigabyte H510M H Motherboard
GA-H510M-H
Gigabyte H510 Intel Gaming Motherboard. Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
-
- 6+2 Phases Low RDS(on) MOSFETs
-
- Solid capacitors to improve transient response and minimize oscillation.
-
- 8-pin Solid Pin CPU Power Connector.
Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.
Exclusive Realtek 8118 Gaming LAN
High-Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users with the most comprehensive features and the fastest and smoothest Internet experience.
Solid Pin Power Connectors
H510 Gaming Motherboard features solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
-
- Larger contact area for electricity
-
- More metal quantity to sustain higher power and generated heat
-
- Ultra-durable and longer lifespan
BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
SPECIFICATIONS | |
Brand | Gigabyte |
Series | Socket LGA1200 |
Model | H510M H |
CPU | LGA1200 package: |
1) 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors | |
2) 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors* | |
* Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family. | |
3) L3 cache varies with CPU | |
Chipset | Intel H510 Express Chipset |
Memory | 1) 11th Generation Intel Core i9/i7/i5 processors: |
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules | |
2) 10th Generation Intel Core i9/i7 processors: | |
Support for DDR4 2933/2666/2400/2133 MHz memory modules | |
3) 10th Generation Intel Core i5/i3/Pentium/Celeron processors: | |
Support for DDR4 2666/2400/2133 MHz memory modules | |
4) 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory | |
5) Dual channel memory architecture | |
6) Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
7) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
8) Support for Extreme Memory Profile (XMP) memory modules | |
Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: |
1) 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz | |
2) 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz | |
* Support for HDMI 1.4 version and HDCP 2.3. | |
(Graphics specifications may vary depending on CPU support.) | |
Audio | 1) Realtek Audio CODEC |
2) High Definition Audio | |
3) 2/4/5.1/7.1-channel | |
To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software. | |
LAN | Realtek GbE LAN chip (1 Gbit/100 Mbit) |
Expansion Slots | 1) 1 x PCI Express x16 slot, running at x16 (PCIEX16) |
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)* | |
* Supported by 11th Generation processors only. | |
2) 1 x PCI Express x1 slot (PCIEX1_1) | |
(The PCIEX1 slot conforms to PCI Express 3.0 standard. | |
Storage Interface | Chipset: |
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) | |
4 x SATA 6Gb/s connectors | |
* Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors. | |
USB | Chipset: |
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) | |
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) | |
Internal I/O Connectors | 1 x 24-pin ATX main power connector |
1 x 8-pin ATX 12V power connector | |
1 x CPU fan header | |
1 x system fan header | |
1 x RGB LED strip header | |
1 x M.2 Socket 3 connector | |
4 x SATA 6Gb/s connectors | |
1 x front panel header | |
1 x front panel audio header | |
1 x USB 3.2 Gen 1 header | |
1 x USB 2.0/1.1 header | |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
1 x serial port header | |
1 x Clear CMOS jumper | |

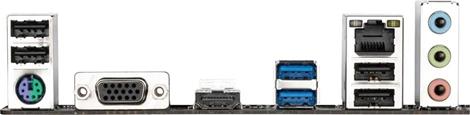

Back Panel Connectors | 1 x PS/2 keyboard/mouse port |
1 x D-Sub port | |
1 x HDMI port | |
2 x USB 3.2 Gen 1 ports | |
4 x USB 2.0/1.1 ports | |
1 x RJ-45 port | |
3 x audio jacks | |
I/O Controller | iTE I/O Controller Chip |
BIOS | 1 x 256 Mbit flash |
Use of licensed AMI UEFI BIOS | |
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Form Factor | Micro ATX Form Factor |
24.4cm x 21.0cm | |
Warranty Information | |
Warranty | 3 Year Warranty |
CPU Socket Type | |
---|---|
CPU Cooling Socket Support | |
Memory Type | |
Motherboard Brand | |
Motherboard Category | |
Form Factor | |
Motherboard Socket Type | |
Motherboard Chipset | |
Motherboard Form Factor | |
Motherboard Ram Support |
