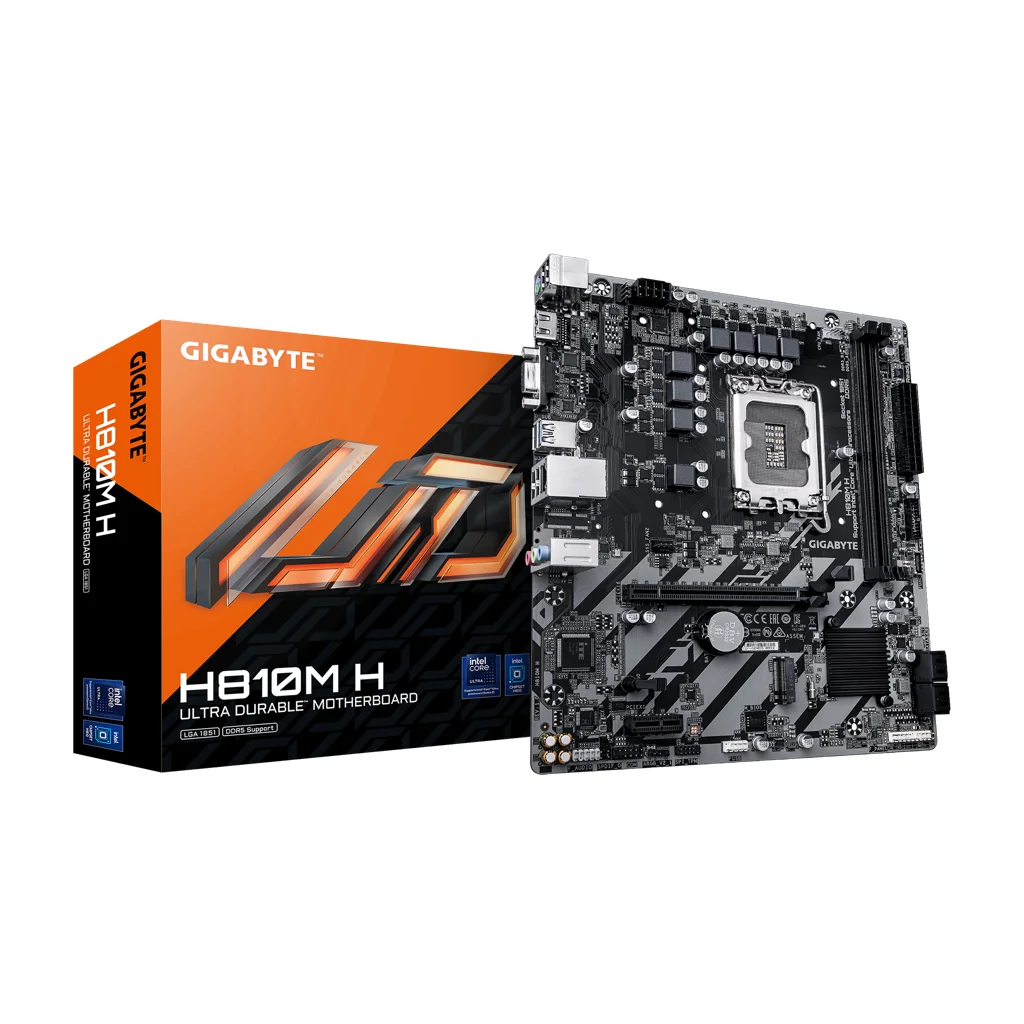

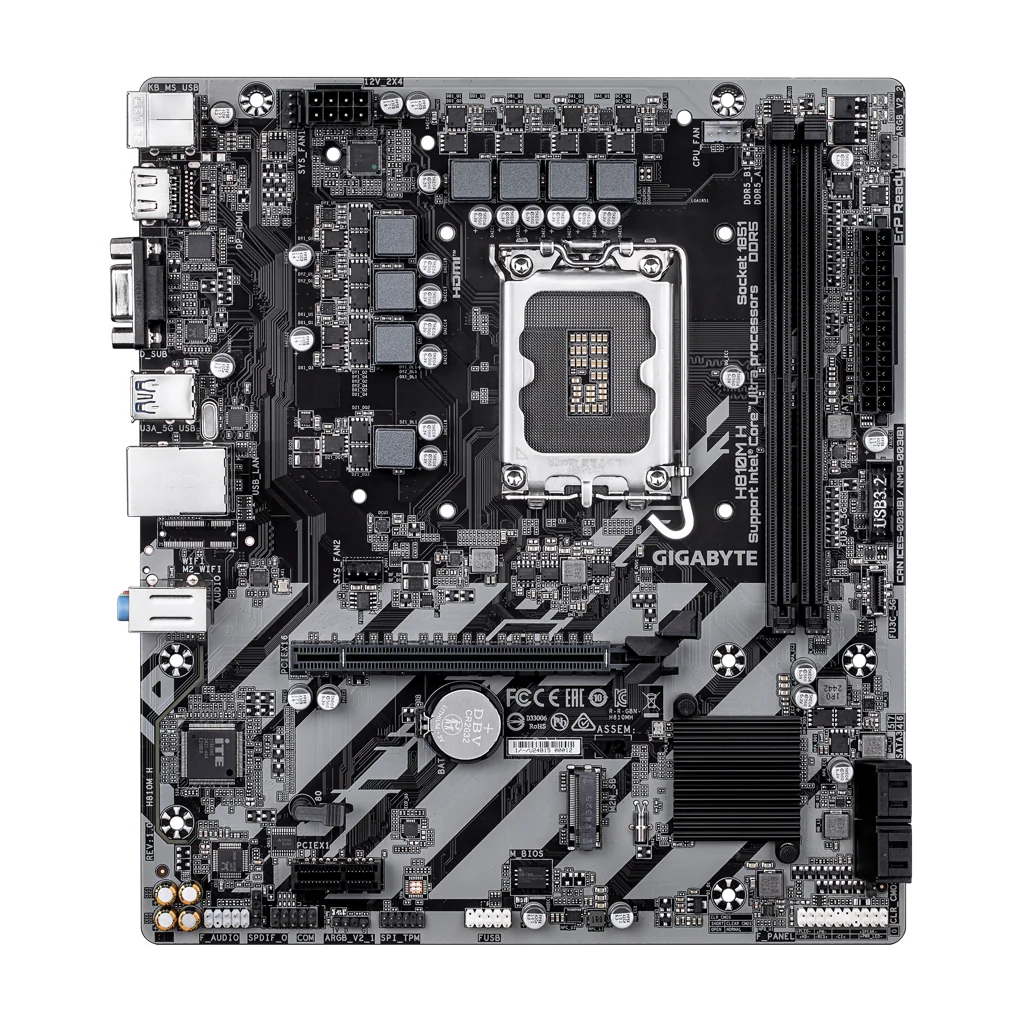

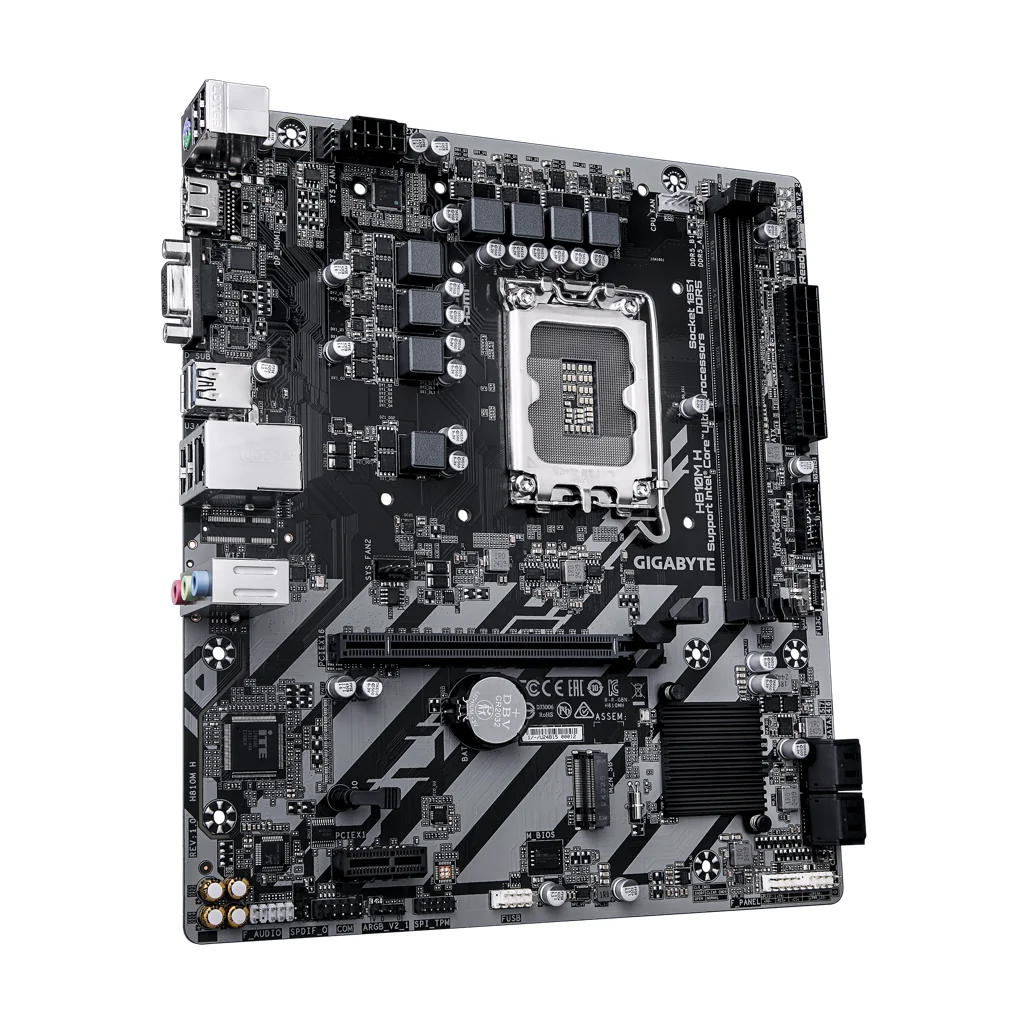

GIGABYTE H810M H Intel H810 LGA1851 Micro-ATX Motherboard
R1947.00 Incl. Vat
Or as low as KEY FEATURES:
– Intel H810 Chipset • Entry-level reliable platform
– LGA1851 Socket • Intel Core Ultra (Series 2) ready
– DDR5 Memory • Up to 6400MT/s performance
– PCIe 5.0 x16 • Modern GPU compatibility
– M.2 PCIe 4.0 • Fast NVMe storage support
– Gigabit LAN • Stable wired networking
– HDMI + D-Sub • Flexible display outputs
– Q-Flash • Easy BIOS updates
– 3 Year Warranty
Description
GIGABYTE H810M H Intel H810 LGA1851 Micro-ATX Motherboard
GA-H810M-H
The GIGABYTE H810M H is designed to deliver stable and efficient performance for Intel’s latest Core Ultra (Series 2) processors on the LGA1851 platform. Built on the Intel H810 chipset, it offers essential features for users looking to build a reliable and budget-friendly system.
Supporting DDR5 memory up to 6400MT/s, this motherboard ensures improved efficiency and responsiveness compared to previous-generation platforms. It features a PCIe x16 slot with support for PCIe 5.0 when paired with compatible CPUs, allowing for modern graphics card compatibility.
Storage is handled via a PCIe 4.0 M.2 slot for fast NVMe SSDs, along with four SATA ports for additional storage expansion. Connectivity includes Gigabit LAN for reliable networking, multiple USB ports, and display outputs including HDMI and D-Sub for versatile monitor support.
GIGABYTE’s Ultra Durable design, Smart Fan 6 cooling, and Q-Flash BIOS update feature make it easy to build, maintain, and manage your system, making the H810M H a practical choice for entry-level builds.
WHY IT’S A GREAT CHOICE:
AFFORDABLE INTEL PLATFORM
A cost-effective solution for building modern Intel Core Ultra systems without unnecessary features.
MODERN DDR5 PERFORMANCE
Supports DDR5 memory for improved speed and efficiency in everyday computing.
ESSENTIAL EXPANSION & STORAGE
Includes PCIe graphics support and M.2 NVMe storage for reliable performance.
FLEXIBLE DISPLAY OPTIONS
HDMI and D-Sub outputs allow compatibility with both modern and legacy displays.
EASY BUILD EXPERIENCE
Q-Flash and user-friendly layout simplify system setup and maintenance.
SPECIFICATIONS:
| Feature | Details |
|---|---|
| Brand / Model | GIGABYTE H810M H (rev. 1.0) |
| Form Factor | Micro-ATX |
| Dimensions | 24.4cm x 21.5cm |
| Socket | LGA1851 |
| Chipset | Intel H810 Express |
| CPU Support | Intel Core Ultra (Series 2) Processors |
| Memory Support | 2 x DDR5 DIMM Slots, Dual Channel, Up to 128GB |
| Memory Speed | DDR5 6400 / 5600 MT/s |
| Memory Profile Support | Intel XMP |
| Memory Module Support | ECC & Non-ECC Unbuffered DIMM (non-ECC mode) |
| Onboard Graphics | Integrated graphics support (CPU dependent) |

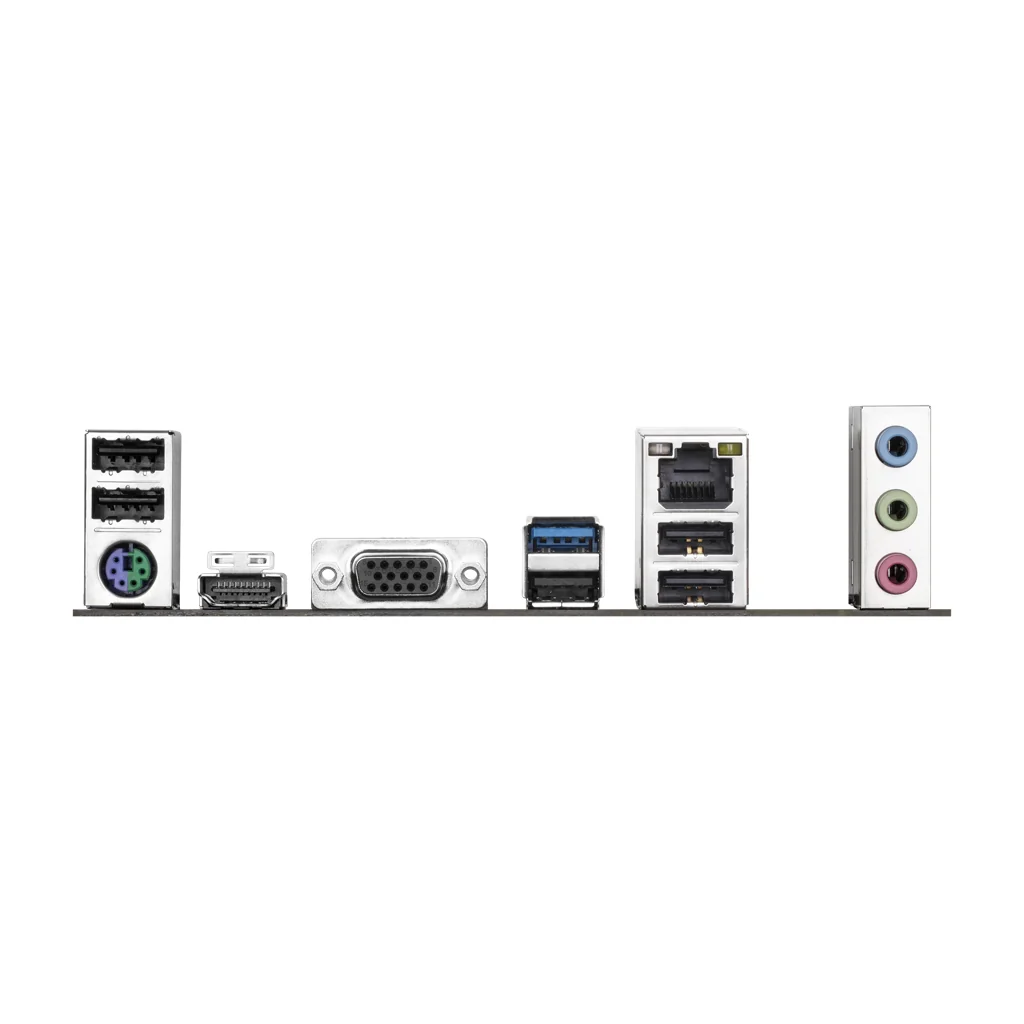

| Video Output | 1 x HDMI, 1 x D-Sub |
| Max Resolution | HDMI: 4096×2160@60Hz, D-Sub: 1920×1200@60Hz |
| Audio | Realtek HD Audio, 2 / 4 / 5.1 / 7.1-channel |
| LAN | Realtek GbE LAN (1Gbps) |
| Expansion Slots | 1 x PCIe x16 (PCIe 5.0 with CPU), 1 x PCIe x1 (PCIe 3.0) |
| M.2 Storage | 1 x M.2 PCIe 4.0 x4/x2 slot |
| SATA Storage | 4 x SATA 6Gb/s |
| RAID Support | RAID 0 / 1 / 5 / 10 |
| USB (Rear + Internal) | USB 3.2 Gen 1, USB 2.0, USB-C (internal header) |
| Internal Headers | USB headers, fan headers, RGB headers, TPM, front panel connectors |
| Cooling | Smart Fan 6 with multiple fan headers |
| RGB Support | RGB Fusion with addressable LED headers |
| Power Design | 4+1+2 Phase Hybrid VRM |
| BIOS | AMI UEFI BIOS, Q-Flash |
| Unique Features | EZ-Latch, Debug LEDs, GIGABYTE Control Center |
| Operating System | Windows 11 / Windows 10 |
| Warranty | 3 Years |
