GIGABYTE H810M K Intel H810 LGA1851 Micro-ATX Motherboard
R1824.00 Incl. Vat
Or as low as KEY FEATURES:
– Intel H810 Chipset • Reliable entry-level platform
– LGA1851 Socket • Intel Core Ultra (Series 2) ready
– DDR5 Memory • Up to 6400MT/s performance
– PCIe 4.0 x16 • Modern GPU support
– M.2 PCIe 4.0 • Fast NVMe storage
– Gigabit LAN • Stable wired networking
– HDMI & DisplayPort • Flexible display outputs
– Q-Flash • Easy BIOS updates
– 3 Year Warranty
Description

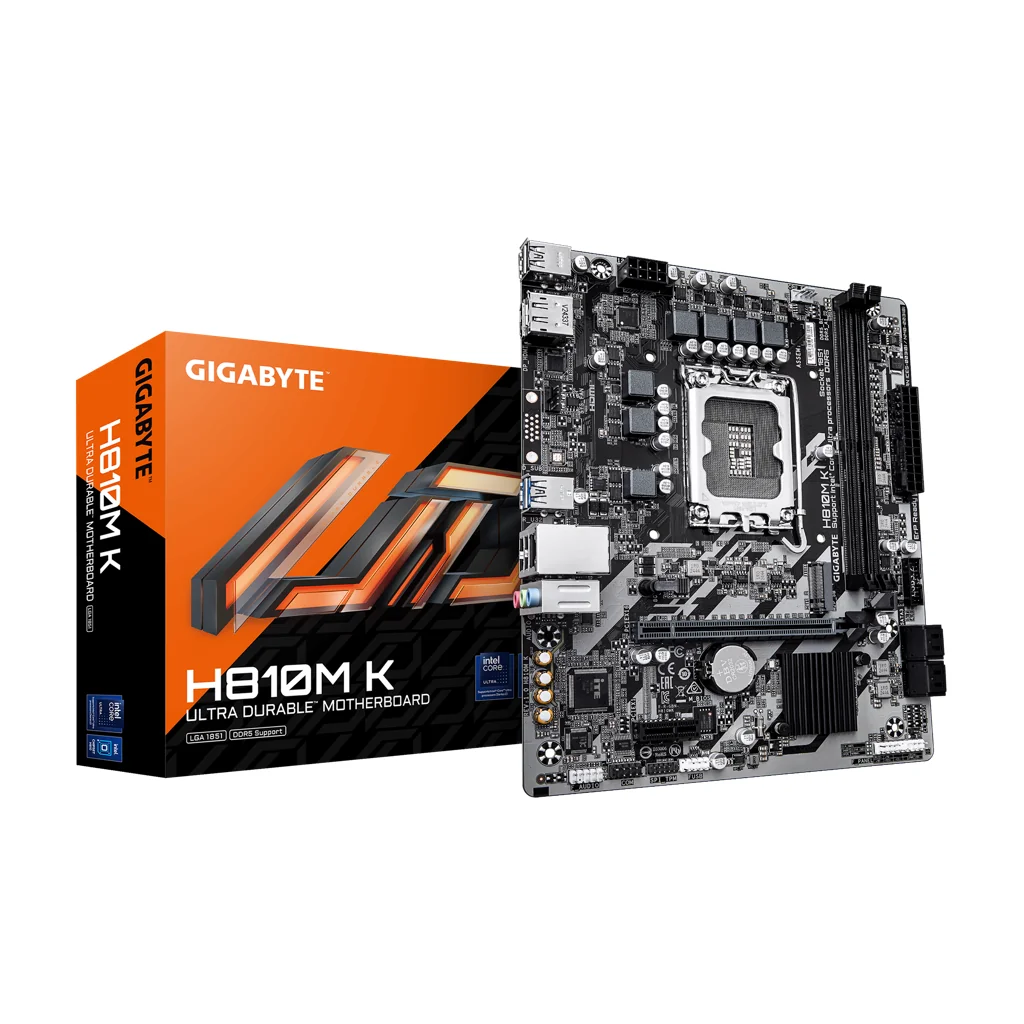

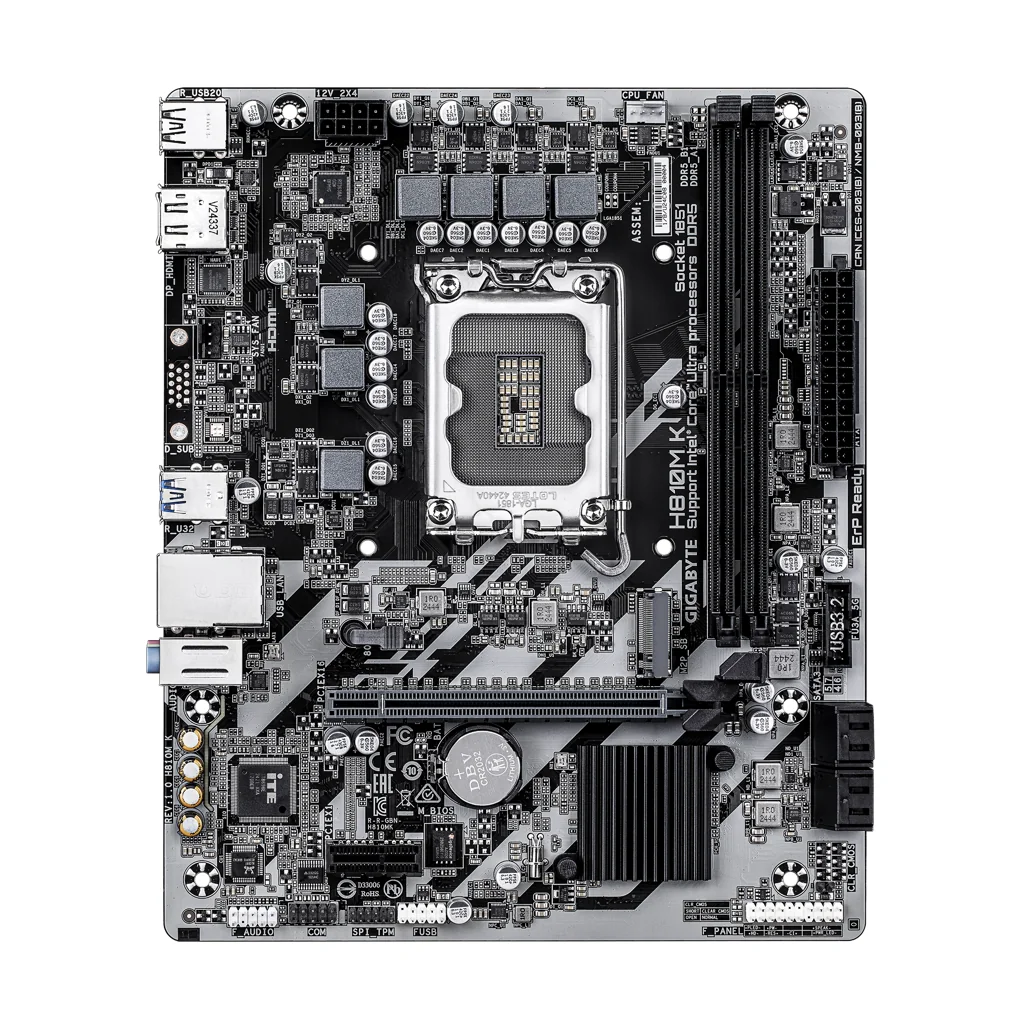

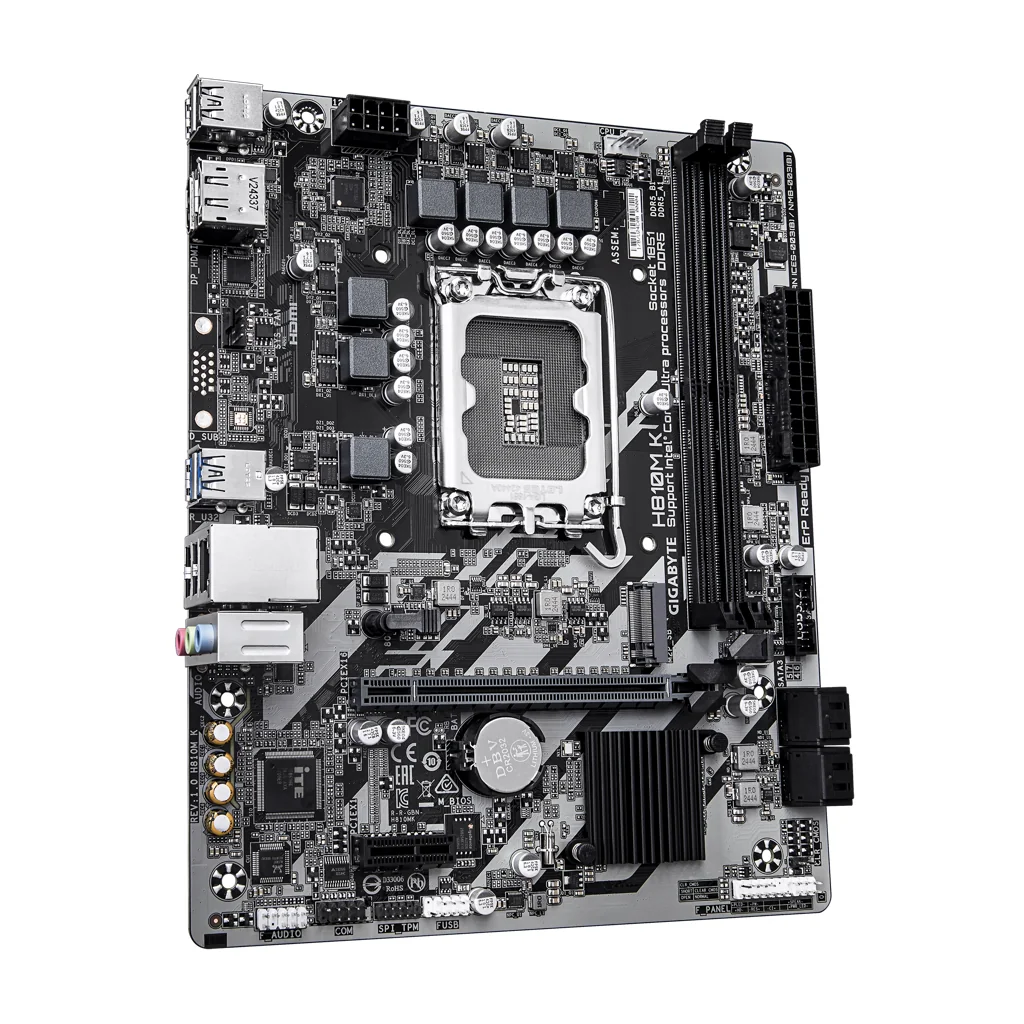

GIGABYTE H810M K Intel H810 LGA1851 Micro-ATX Motherboard
GA-H810M-K
The GIGABYTE H810M K is built to deliver dependable performance for Intel Core Ultra (Series 2) processors using the LGA1851 platform. Designed with simplicity and reliability in mind, it offers essential features required for modern office, home, and entry-level systems.
Supporting DDR5 memory up to 6400MT/s, this motherboard provides improved efficiency and responsiveness over previous generations. The PCIe 4.0 x16 slot allows for modern graphics card installation, while a PCIe 4.0 M.2 slot ensures fast NVMe SSD performance for quicker boot times and application loading.
Connectivity includes HDMI and DisplayPort outputs for flexible display setups, along with Gigabit LAN for stable networking. The board also features multiple USB ports and SATA connectivity for storage expansion.
With GIGABYTE’s durable design, Smart Fan support, and Q-Flash functionality, the H810M K is easy to build with and maintain, making it an excellent choice for budget-conscious builds.
WHY IT’S A GREAT CHOICE:
AFFORDABLE INTEL PLATFORM
A cost-effective solution for building modern Intel Core Ultra systems without unnecessary extras.
MODERN DDR5 SUPPORT
Delivers improved memory speeds and efficiency compared to older DDR4 platforms.
ESSENTIAL PERFORMANCE FEATURES
Includes PCIe 4.0 graphics and NVMe storage support for reliable everyday performance.
COMPACT BUILD READY
Micro-ATX form factor fits into a wide range of cases for flexible system builds.
EASY SETUP & MAINTENANCE
Q-Flash and user-friendly design features simplify system building and BIOS updates.
SPECIFICATIONS:
| Feature | Details |
|---|---|
| Brand / Model | GIGABYTE H810M K |
| Form Factor | Micro-ATX |
| Dimensions | 22.6cm x 18.5cm |
| Socket | LGA1851 |
| Chipset | Intel H810 Express |
| CPU Support | Intel Core Ultra (Series 2) Processors |
| Memory Support | 2 x DDR5 DIMM Slots, Dual Channel, Up to 128GB |
| Memory Speed | DDR5 6400 / 5600 MT/s |
| Memory Profile Support | Intel XMP |
| Memory Module Support | ECC & Non-ECC Unbuffered DIMM (non-ECC mode) |
| Onboard Graphics | Integrated graphics support (CPU dependent) |

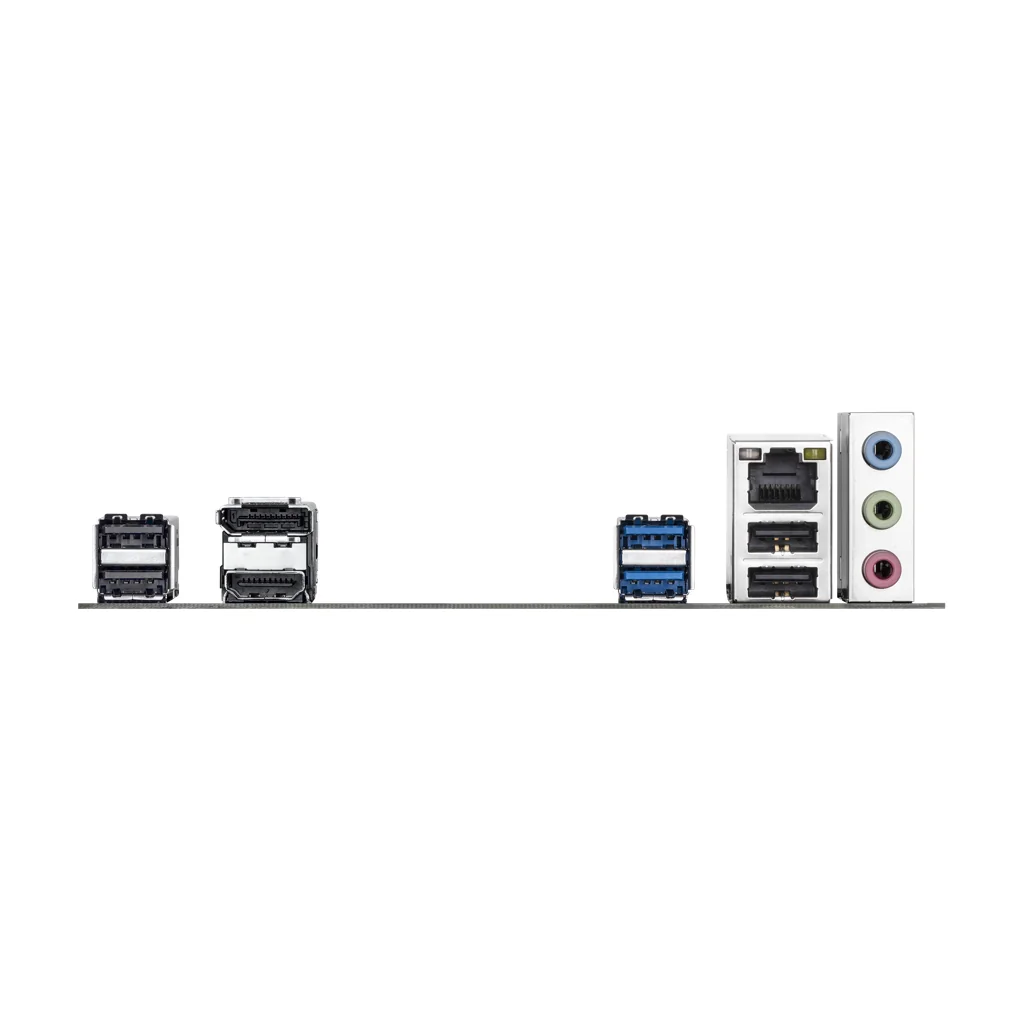

| Video Output | 1 x DisplayPort, 1 x HDMI |
| Max Resolution | DP: 4096×2304@60Hz, HDMI: 4096×2160@60Hz |
| Audio | Realtek Audio Codec, 2/4/5.1/7.1-channel |
| LAN | Realtek GbE LAN (1Gbps) |
| Expansion Slots | 1 x PCIe x16 (PCIe 5.0/4.0 depending CPU), 1 x PCIe x1 (PCIe 3.0) |
| M.2 Storage | 1 x M.2 PCIe 4.0 x4/x2 slot |
| SATA Storage | 4 x SATA 6Gb/s |
| RAID Support | RAID 0 / 1 / 5 / 10 (SATA) |
| USB (Rear + Internal) | USB 3.2 Gen1, USB 2.0 ports |
| Internal Headers | USB headers, front panel, fan headers |
| Cooling | Smart Fan support with multiple sensors |
| BIOS | AMI UEFI BIOS, Q-Flash |
| Unique Features | EZ-Latch PCIe, GIGABYTE Control Center |
| Operating System | Windows 11 / Windows 10 |
| Warranty | 3 Years |
