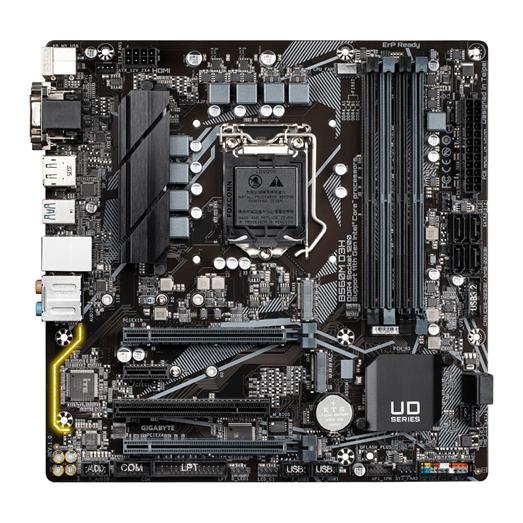

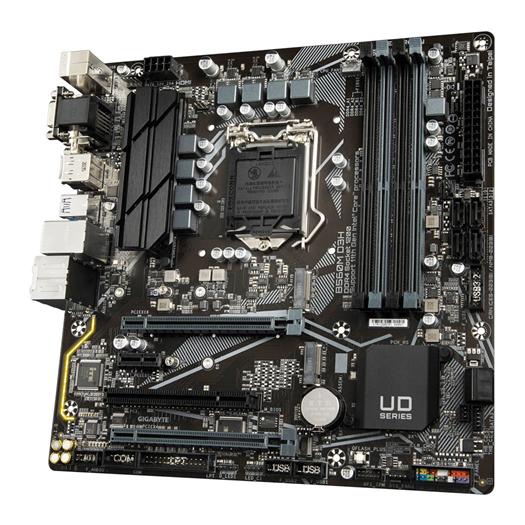

Gigabyte Intel B560M D3H PCIe 4.0 mATX Motherboard
Gigabyte Intel B560M D3H PCIe 4.0 mATX Motherboard - Image 2
Gigabyte Intel B560M D3H PCIe 4.0 mATX Motherboard - Image 3
Gigabyte Intel B560M D3H PCIe 4.0 mATX Motherboard - Image 4

Gigabyte Intel B560M D3H PCIe 4.0 mATX Motherboard

R3090.00 Incl. Vat

KEY FEATURES
– Micro-ATX Form Factor
– Intel B560 Chipset
– Intel LGA1200 Socket
– 4x DDR4 DIMM Slots, Supports up to 128GB
– Supports up to DDR4-5333MHz (OC)
– 1x PCI-E 4.0 x16, 1x PCI-E 3.0 x16, 1x PCI-E 3.0 x1 Slots, 1 x PCI Slot
– 6x SATA 6Gbps Ports, 2x M.2 Slot.
– 1x USB 3.2 Gen 1 Type-C, 3x USB 3.2 Gen 1
– 2 x USB 2.0, 1x RJ-45 Ethernet Port
– Micro ATX Form Factor
– Intel GbE LAN chip
– Realtek Audio Codec
– 3 Year Warranty

Out of stock

SKU: MB-GB560MD3H Categories: , , , Tags: , , , , ,

Description

A Solid Foundation for Your System
Here to herald the arrival of the latest generation of Intel CPUs is the Gigabyte B650m D3H Motherboard, an ulta durable motherboard in a small form factor ready to support intel 11th and 10th generation processors, this Micro-ATX motherboard boasts a direct 6+2 phase digital vrm solution, dual ultra fast NVMe m.2 slots, full PCIe 4.0 design, Intel GbE LAN and a fully comprehensive I/O that includes type-C connectivity. Gigabyte keep product longevity at the forefront of their product design and this ultra-durable motherboard is no exception; with solid pin connectors and smart fan6 technologies to keep your system running smoothly and ensure you receive the performance you deserve. If your a fan of customisation; the B560m D3H also boasts RGB Fusion 2.0 support giving you the option to install ARGB and RGB LED strips to add your own personal style. The B560M D3H is the perfect motherboard for daily enthusiasts and gamers alike.

Specifications

Core Specifications
Edition  B560 D3H
Form Factor  MicroATX
CPU Socket  1200
Chipset  Intel B560
RAM Memory Support
Memory Type  DDR4
Memory Channel  Dual (2)
Memory Type (ECC)  ECC/Non-ECC
Memory Type (R/U)  UDIMM (Unbuffered)
Memory Speed (Mhz)
    • DDR4 – 2133
    • DDR4 – 2400
    • DDR4 – 2667
    • DDR4 – 2933
    • DDR4 – 3000(OC)
    • DDR4 – 3200(OC)
    • DDR4 – 3300(OC)
    • DDR4 – 3400(OC)
    • DDR4 – 3466(OC)
    • DDR4 – 3600(OC)
    • DDR4 – 3666(OC)
    • DDR4 – 3733(OC)
    • DDR4 – 3800(OC)
    • DDR4 – 3866+(OC)
    • DDR4 – 4000(OC)
    • DDR4 – 4133(OC)
    • DDR4 – 4266(OC)
    • DDR4 – 4300(OC)
    • DDR4 – 4300+(OC)
    • DDR4 – 4400(OC)
    • DDR4 – 4500(OC)
    • DDR4 – 4600(OC)
    • DDR4 – 4700(OC)
    • DDR4 – 4800(OC)
    • DDR4 – 4933(OC)
    • DDR4 – 5000+(OC)
    • DDR4 – 5133(OC)
    • DDR4 – 5300(OC)
Max. Memory Capacity  128GB (4x32GB)
Audio
Audio
Graphics Support
Primary GPU Interface  PCIe 4.0 (x16)
NVIDIA SLI Support  N/A
AMD CrossFire Support  Supported
Integrated Graphics  Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
    • D-Sub (VGA)
    • DisplayPort
    • DVI-D
    • HDMI
Internal Connectivity
Expansion Slots
    • 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
    • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
    • 1 x PCI
    • 1 x PCIe 3.0 x1
    • 1 x PCIe 3.0 x16 (x4 Bandwidth)
    • 1 x PCIe 4.0 x16
SATA Support  SATA3 / M.2
RAID Support via
Storage Mode Support
Internal I/O
    • 1 x 24-pin (Power)
    • 1 x 8-pin (Power)
    • 1 x Addressable Digital RGB Header
    • 1 x Clear CMOS jumper
    • 1 x CPU Cooler LED/RGB LED Strip Extension Header
    • 1 x CPU Fan Connector
    • 1 x Front Panel Audio Header
    • 1 x Front Panel Connector
    • 2 x M.2 Connector
    • 1 x Parallel Port (LPT) Header
    • 1 x Q-Flash Plus Button
    • 1 x RGB Header
    • 2 x RGB LED connector
    • 6 x SATA III – 6Gb/s
    • 1 x Serial (COM) Header
    • 3 x System Fan header
    • 2 x Temperature Sensor Header
    • 2 x Thunderbolt header
    • 1 x TPM Header
    • 2 x USB 2.0 Header
    • 1 x USB 3.2 Gen1 Header
    • 1 x USB 3.2 Gen1 Type-C Front Panel Header
External Connectivity
Network Interface Type  Wired Gigabit LAN (10/100/1000)
Network Chip/Modules  1 x Intel (Gigabit LAN)

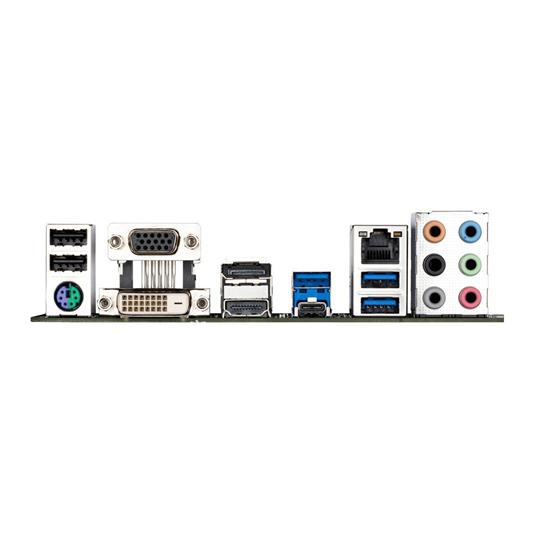

Rear I/O Connectors
    • 1 x Center/Subwoofer Speaker Out
    • 1 x D-Sub (VGA)
    • 1 x DisplayPort
    • 1 x DVI-D
    • 1 x HDMI
    • 1 x Line In
    • 1 x Line Out
    • 1 x Mic-In
    • 1 x PS/2 Keyboard/Mouse Combo
    • 1 x Q-Flash Plus Button
    • 1 x Rear Speaker Out
    • 1 x RJ-45
    • 1 x S/PDIF-Out (Optical)
    • 2 x SMA antenna connectors (2T2R)
    • 2 x USB 2.0
    • 1 x USB 3.2 Gen1 Type-A
    • 1 x USB 3.2 Gen1 Type-C
    • 3 x USB 3.2 Gen2 Type-A
Additional Specifications
Water Cooled No
Cooling  Passive Heatsinks
QPI Speed  N/A
Board Dimensions  244 x 244 mm
Note

Additional information

Weight 2 kg
CPU Socket Type

CPU Cooling Socket Support

Memory Form Factor

Memory Type

Motherboard Brand

Motherboard Category

Motherboard Chipset

Form Factor

Motherboard Socket Type
