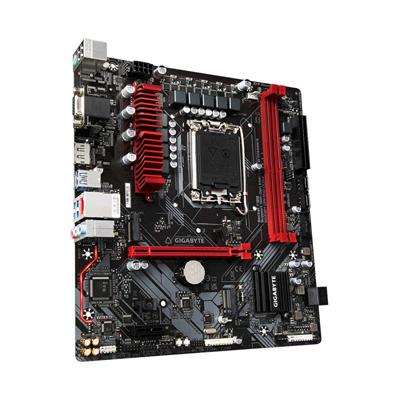

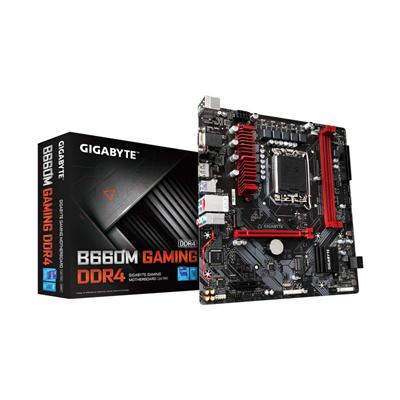

Gigabyte Intel B660M GAMING DDR4 LGA1700 MATX Motherboard

• • LGA1700 socket: Support for 12th Gen Intel Core, Pentium Gold and Celeron Processors

• • L3 cache varies with CPU

• • Intel B660 Express Chipset

• • Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz memory modules

• • 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

• • Dual channel memory architecture

• • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

• • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

• • Support for Extreme Memory Profile (XMP) memory modules

• • 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz

• • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    * Support native HDMI 2.1 TMDS compatible ports.

• • 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3

• • (Graphics specifications may vary depending on CPU support.)

• • High Definition Audio

• • 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.

• • Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• • None

• • The PCIEX16 slot conforms to PCI Express 4.0 standard.

1 x PCI Express x1 slot

• • The PCIEX1 slot conforms to PCI Express 3.0 standard.

• • N/A

• • 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

• • 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

• • 4 x SATA 6Gb/s connectors

• • Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10

• • Intel Optane Memory Ready
  •  System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.

• • 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support

• • 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

• • 2 x USB 2.0/1.1 ports on the back panel

Chipset+2 USB 2.0 Hubs:

• • 4 x USB 2.0/1.1 ports available through the internal USB headers

• • 1 x 24-pin ATX main power connector

• • 1 x 8-pin ATX 12V power connector

• • 1 x CPU fan header

• • 3 x system fan headers

• • 1 x addressable LED strip header

• • 1 x RGB LED strip header

• • 2 x M.2 Socket 3 connectors

• • 4 x SATA 6Gb/s connectors

• • 1 x front panel header

• • 1 x front panel audio header

• • 1 x USB 3.2 Gen 1 header

• • 2 x USB 2.0/1.1 headers

• • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

• • 1 x serial port header

• • 1 x S/PDIF Out header

• • 1 x Q-Flash Plus button

• • 1 x reset button

• • 1 x reset jumper

• • 1 x Clear CMOS jumper
    ＊ All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

• • 2 x USB 2.0/1.1 ports

• • 1 x PS/2 keyboard/mouse port

• • 1 x D-Sub port

• • 1 x HDMI port

• • 1 x DisplayPort

• • 3 x USB 3.2 Gen 1 ports

• • 1 x USB Type-C port, with USB 3.2 Gen 1 support

• • 1 x RJ-45 port

• • 3 x audio jacks

• • iTE I/O Controller Chip

• • Voltage detection

• • Temperature detection

• • Fan speed detection

• • Fan fail warning

• • Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.

• • 1 x 256 Mbit flash

• • Use of licensed AMI UEFI BIOS

• • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• • Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer

• • Support for Q-Flash Plus

• • Support for Q-Flash

• • Support for Xpress Install

• • Norton Internet Security (OEM version)

• • Realtek Gaming LAN Bandwidth Control Utility

• • Support for Windows 10/11 64-bit

• • Micro ATX Form Factor, 24.4cm x 22.5cm
