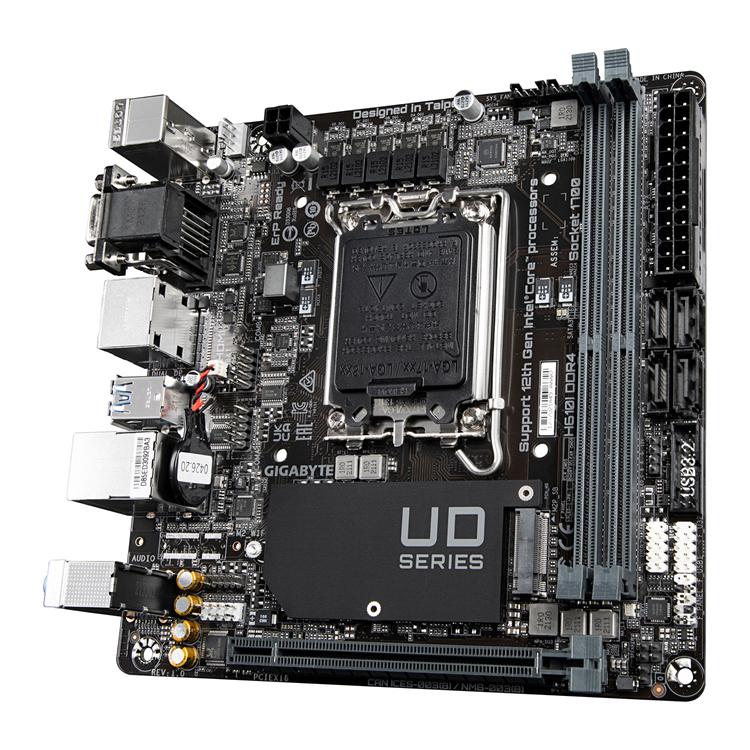

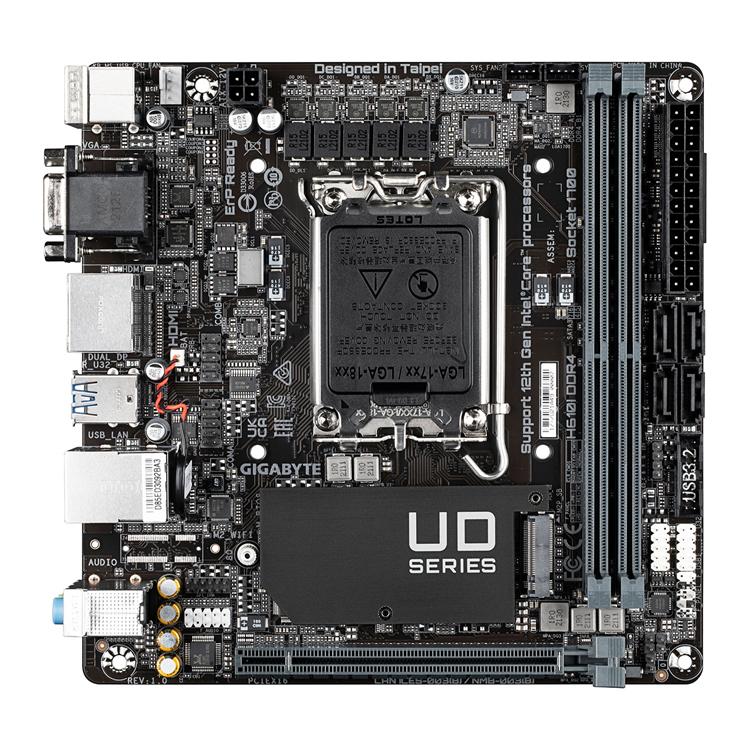

Gigabyte Intel H610I DDR4 PCIe 4.0 mini-ITX Motherboard
Gigabyte Intel H610I DDR4 PCIe 4.0 mini-ITX Motherboard - Image 2
Gigabyte Intel H610I DDR4 PCIe 4.0 mini-ITX Motherboard - Image 3
Gigabyte Intel H610I DDR4 PCIe 4.0 mini-ITX Motherboard - Image 4

Gigabyte Intel H610I DDR4 PCIe 4.0 mini-ITX Motherboard

R2643.00 Incl. Vat


(Displayed price above applies to EFT / Bank Transfer payments only.)

Out of stock

SKU MB-GH610ID4 Categories , , , , Tags , , , , , , ,

KEY FEATURES:

– Intel H610 Chipset

– Socket LGA1700

– Supports Intel 12th Generation CPUs (Alder Lake)

– 2 x DDR4 DIMM Slots

– 1 x PCI-Express 4.0 Slot

– Graphics Output: DisplayPort + HDMI + D-Sub

– Realtek ALC897 7.1 Audio

– Intel i219-V Gigabit LAN

– 1 x PCIe 3.0 x4 M.2 Socket + 4 x SATA3 6.0 Gb/s Ports

Description

Gigabyte Intel H610I DDR4 PCIe 4.0 mini-ITX Motherboard

GA-H610I-DDR4

STAND YOUR GROUND
Here to support the latest generation of Intel CPUs is the Gigabyte H610I DDR4 Motherboard, Perfect for those who prefer stunning performance in a small form factor at a fair price point, this Mini-ITX motherboard boasts a 4+1+1 hybrid power solution, PCIe 3.0 M.2, PCIe 4.0 support, Intel GbE LAN and a fully comprehensive I/O panel. Product longevity is of upmost important to gigabyte; thats why they have included only the best components they can find and reinforce every slot to make each of them solid and durable. The H610I DDR4 is perfect for both daily users and enthusiasts that are looking to squeeze every ounce of performance from their 12th generation intel CPU. Push the boundaries with Gigabyte

Intel H610 Chipset

LGA 1700 CPU Socket

12th Generation Intel Intel Processors

Mini-ITX Form Factor

Cleaner and more Efficient Power Delivery to the CPU

4+1+1 PHASES
DrMOS

SOLID CAPACITORS
To improve transient response and minimise oscillation.

SOLID PIN
CPU POWER CONNECTOR.

PREMIUM CHOKE AND CAPACITOR DESIGN
With technology moving so fast, GIGABYTE still keep up with the latest trends and provide their customers with advanced features and the latest technologies. Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

A Fully Comprehensive Cooling Solution

INTELLIGENT FAN CONTROL DESIGN
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature – all of it can be customised to your liking.

3 PWM/DC Fan Headers

4 Internal Temperature Sensors

Durability for Years to Come

Q-FLASH PLUS
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

STEP 1
Plug the 24-pin & 8-pin power supply cable into the motherboard.

STEP 2
Download and unzip the motherboard’s compressed BIOS file and rename to “gigabyte.bin”, save to a USB flash-drive, and plug it into the Q-Flash USB port.

STEP 3
Press the Q-Flash button, and the motherboard will start updating the BIOS automatically.

Take Control of your Motherboard

REFRESHED BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system. * Photos are for reference only. Product features may vary by model.

Technical Specification

CPU Intel 12th Generation CPUs (Alder Lake)
Chipset Intel H610
Memory 2 x DDR4 DIMM Slots
Dual Channel DDR4 Memory Technology
Support DDR4-3200 (OC)
64GB Maximum Support Capacity
Graphics Outputs* 2 x DisplayPort 1.2, HDMI 2.1 and D-Sub
*Requires Intel CPU with Integrated GPU
Audio 1 x Realtek ALC897 7.1 HD Audio
Network Connectivity 1 x Intel i219-V Gigabit LAN 10/100/1000 Mb/s
Expansion Slots** 1 x PCI Express 3.0 x16 Slot (PCIEX16)
**Please view PCIe bifurcation table in the manual
Multi-GPU N/A
Storage 4 x SATA3 6.0 Gb/s Connectors
Supports RAID 0 / 1 / 5 / 10
1 x PCIe 3.0 x4 M.2 Socket (2280)
Motherboards Connector 1 x 24-Pin ATX Main Power Connector
1 x 4-Pin ATX 12V Power Connector
1 x CPU Fan Header
2 x System Fan Headers
1 x RGB LED Strip Header
1 x M.2 Socket 3 Connector
4 x SATA 6Gb/s Connectors
1 x Front Panel Header
1 x Front Panel Audio Header
1 x USB 3.2 Gen 1 Header
2 x USB 2.0 Headers
1 x Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only)
2 x Serial Port Headers
1 x Clear CMOS Jumper
1 x Chassis Intrusion Header

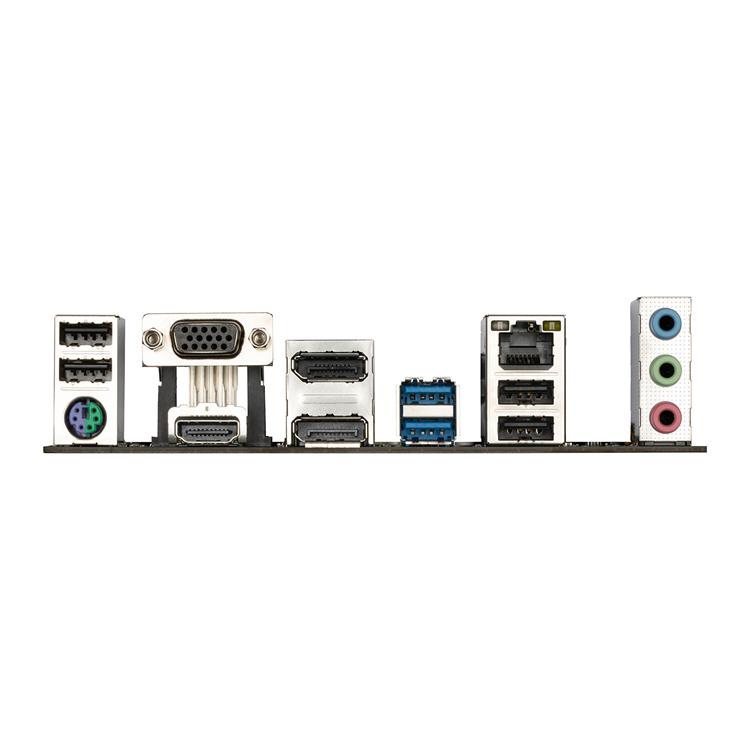

Rear Panel I/O 2 x DisplayPort Port
1 x HDMI Port
1 x D-Sub
1 x LAN (RJ-45) Port
1 x PS/2 Keyboard / Mouse Combo Port
2 x USB 3.2 Gen1 Type-A Ports
4 x USB 2.0 Type-A Ports
3 x Audio Jacks

Unique Features

Features GIGABYTE AORUS Cooling
3 Fan / Water Pump Headers
4 Temperature Sensors
All Hybrid Fan Headers
Fan Stop

GIGABYTE AORUS Audio
High-End Audio Capacitors

GIGABYTE AORUS Quality and Protection
4+1+1 Phases Hybrid Digital VRM Design
60A DrMOS
8-Layer PCB​
Solid Pin Power Connectors
Hybrid Cores Optimization

Warranty and Return Information

Warranty Period 3 Years
Return Policy Standard

Additional information

Weight 8 kg
CPU Socket Type

CPU Cooling Socket Support

Memory Form Factor

Memory Type

Motherboard Brand

Motherboard Category

Motherboard Chipset

Form Factor

Motherboard Socket Type
