R5119.00 Incl. Vat
(Displayed price above applies to EFT / Bank Transfer payments only.)
Out of stock
Key Features:
– ATX Form Factor
– Intel Z590 Chipset
– Socket LGA 1200 Rocket Lake
– 4x DDR4 DIMM Slots, Supports up to 128GB
– Supports up to DDR4-3200MHz
– Shielded Memory Routing for Better Memory Overclocking
– 1x PCIe 4.0 x16 Slots, 1x PCIe 3.0 x16 @x4, 2x PCIe 3.0 x1 Slots
– 6x SATA 6Gbps Ports, 3x M.2 M-Key Slots
– 1x USB 3.2 Gen 2 Type-C, 1x USB 3.2 Gen 2 Type-A
– 5x USB 3.2 Gen 1, 2x USB 2.0
– Direct 12+1 Phases Digital VRM Solution
– 60A DrMOS
– Realtek 2.5GbE LAN chip
– Realtek Audio codec
– RGB FUSION 2.0
– 3 Year Warranty
A Solid Foundation for Your System

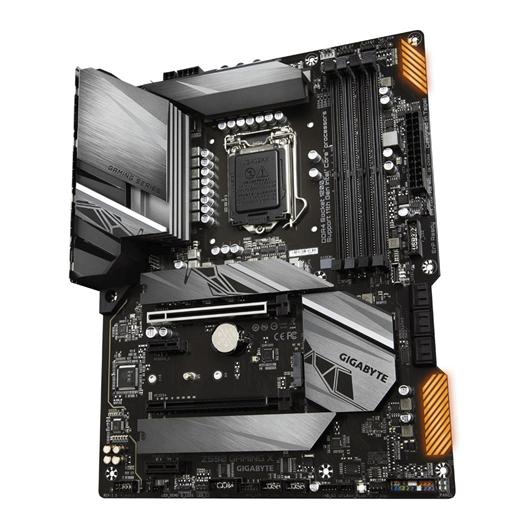

Here to herald the arrival of the latest generation of Intel CPUs is the Gigabyte Z590 Gaming X Motherboard, in order to squeeze every ounce of performance from the new 11th Generation Intel CPUs the Gaming X boasts an updated digital power design, access to PCIe 4.0 technology, a comprehensive cooling solution with integrated IO armour, PCIe 4.0 M.2 slot with thermal guard to prevent throttling, a super-fast 2.5GbE LAN, Type-C connectivity and support for Gigabytes RGB Fusion 2.0 Software to control and synchronise lighting across compatible products. The Gigabyte Z590 Gaming X is perfect for daily users and mainstream enthusiasts that are looking to push the modern boundaries of performance. Start with a strong foundation, now is your chance.
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | Gaming |
| Model | Z590 GAMING X (GA-Z590-GAMING-X) |
| CPU | LGA1200 package: |
| 11th Generation Intel Core i9, i7, i5 Processors | |
| 10th Generation Intel Core i9, i7, i5, i3, Pentium, Celeron Processors | |
| L3 cache varies with CPU | |
| Chipset | Intel Z590 Express Chipset |
| Memory | 1) 11th Generation Intel Core i9/i7/i5 processors: |
| Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules | |
| 2) 10th Generation Intel Core i9/i7 processors | |
| Support for DDR4 2933/2666/2400/2133 MHz memory modules | |
| 3) 10th Generation Intel Core i5/i3/Pentium/Celeron processors: | |
| Support for DDR4 2666/2400/2133 MHz memory modules | |
| 4) 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| 5) Dual channel memory architecture | |
| 6) Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| 7) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| 8) Support for Extreme Memory Profile (XMP) memory modules | |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: |
| 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz. | |
| *Support for DisplayPort 1.2 version and HDCP 2.3 | |
| Audio | Realtek Audio codec |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| Support for S/PDIF Out | |
| LAN | Realtek 2.5GbE LAN chip ( 2.5 Gbit/ 1 Gbit/100 Mbit) |
| Expansion Slots | 1) 1 x PCI Express x16 slot, running at x16 (PCIEX16) |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| (The PCIEX16 slot conforms to PCI Express 4.0 standard.)* | |
| *Supported by 11th Generation processors only. | |
| 2) 1 x PCI Express x16 slot, running at x4 (PCIEX4) | |
| 3)2 x PCI Express x1 slots | |
| (The PCIEX4 and PCI Express x1 slots conform to PCI Express 3.0 standard) | |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire Technologies |
| Storage Interface | CPU: |
| 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)* | |
| *Supported by 11th Generation processors only. | |
| Chipset: | |
| 2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) (M2M_SB) | |
| 6 x SATA 6Gb/s connectors | |
| Support for RAID 0, RAID 1, RAID 5, and RAID 10 | |
| * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors. | |
| Intel Optane Memory Ready | |
| USB | Chipset: |
| 1 x USB Type-C port on the back panel, with USB 3.2 Gen2 support | |
| 1 x USB Type-C port with USB 3.2 Gen1 support, available through the internal USB header | |
| 1 x USB 3.2 Gen2 Type-A port (red) on the back panel | |
| 7 x USB 3.2 Gen1 ports (5 ports on the back panel, 2 ports available through the internal USB header) | |
| Chipset 2 USB 2.0 Hub: | |
| 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 4-pin ATX 12V power connector | |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 4 x system fan headers | |
| 2 x addressable LED strip headers | |
| 2 x RGB LED strip headers | |
| 6 x SATA 6Gb/s connectors | |
| 3 x M.2 Socket 3 connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x S/PDIF Out header | |
| 1 x USB Type-C header, with USB 3.2 Gen1 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 2 x Thunderbolt add-in card connectors | |
| 1 x serial port header | |
| 1 x Clear CMOS jumper | |
| 1 x Q-Flash Plus button | |

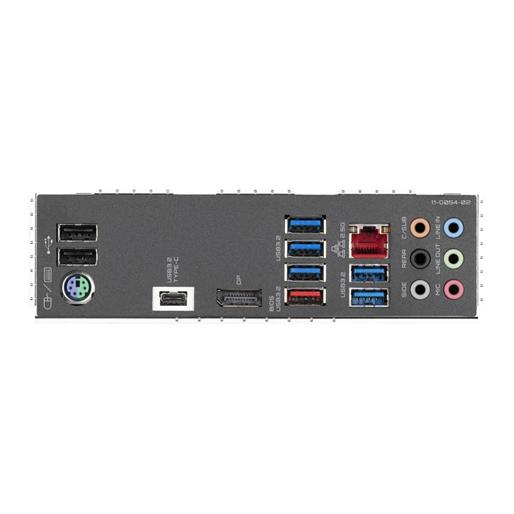

| Back Panel Connectors | 1 x PS/2 keyboard/mouse port |
| 1 x USB Type-C header, with USB 3.2 Gen2 support | |
| 1 x DisplayPort | |
| 1 x USB 3.2 Gen 2 Type-A port (red) | |
| 5 x USB 3.2 Gen 1 ports | |
| 2 x USB 2.0/1.1 ports | |
| 1 x RJ-45 port | |
| 6 x audio jacks | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Fan fail warning | |
| Fan speed control | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor |
| 30.5cm x 24.4cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Weight | 2 kg |
|---|---|
| CPU Socket Type | |
| CPU Cooling Socket Support | |
| Memory Type | |
| Motherboard Brand | |
| Motherboard Category | |
| Motherboard Chipset | |
| Form Factor | |
| Motherboard Socket Type | |
| Motherboard Form Factor | |
| Motherboard Ram Support |
