• 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
• 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors*
  * Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.
• L3 cache varies with CPU

• Intel Z590 Express Chipset

• 11th Generation Intel Core i9 / i7 / i5 processors:
  Support for DDR4 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
• 10th Generation Intel Core i9/i7 processors:
  Support for DDR4 2933 / 2666 / 2400 / 2133 MHz memory modules
• 10th Generation Intel Core i5/i3 /Pentium/Celeron processors:
  Support for DDR4 2666 / 2400 / 2133 MHz memory modules
• 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

• 1 x USB Type-C port, supporting USB Type-C and DisplayPort video outputs and a maximum resolution of 4096×2304@60 Hz.
  * Support for drawing tablets and 20V@3A of power delivery.
  *Support for DisplayPort 1.2 version and HDCP 2.3
• 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
  * Support for HDMI 1.4 version and HDCP 2.3.

• Realtek ALC4080 codec
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

• TBA

• None

• 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  * The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector.
  (The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
  *Supported by 11th Generation processors only.
• 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)
  (The PCIEX4 slot conforms to PCI Express 3.0 standard.)

• Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

• 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*
  * Supported by 11th Generation processors only.
• 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0* x4/x2 SSD support) (M2B_CPU)(M2C_CPU)

Chipset:

• 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)
• 6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
Intel Optane Memory Ready

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 4 x system fan headers
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 6 x SATA 6Gb/s connectors
• 4 x M.2 Socket 3 connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB Type-C header, with USB 3.2 Gen 2×2 support
• 1 x USB 3.2 Gen1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only)
• 2 x Thunderbolt add-in card connectors
• 1 x serial port header
• 1 x Clear CMOS jumper
• 1 x Q-Flash Plus button
• 1 x noise detection header

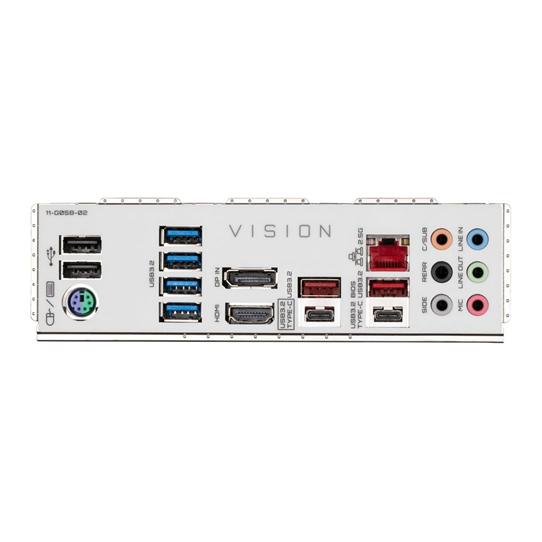

• 2 x USB 2.0/1.1 ports
• 1 x PS/2 keyboard/mouse port
• 4 x USB 3.2 Gen 1 ports
• 1 x DisplayPort In port
• 1 x HDMI port
• 2 x USB 3.2 Gen2 Type-A ports
• 1 x USB Type-C port, with USB 3.2 Gen 2×2 support
• 1 x USB Type-C port, with USB 3.2 Gen 1 support
• 1 x RJ-45 port
• 6 x audio jacks

• iTE I/O Controller Chip

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.
• Noise detection

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  System Information Viewer
• Support for Q-Flash Plus
• Support for Q-Flash
• Support for Xpress Install

• Norton Internet Security (OEM version)
• cFosSpeed

• Support for Windows 10 64-bit

• ATX Form Factor, 30.5cm x 24.4cm
