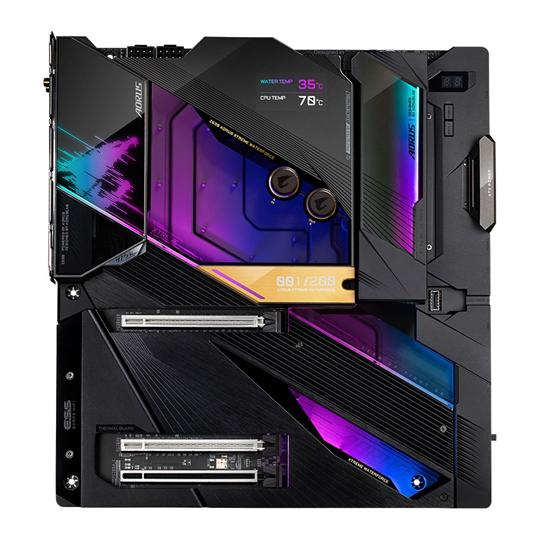

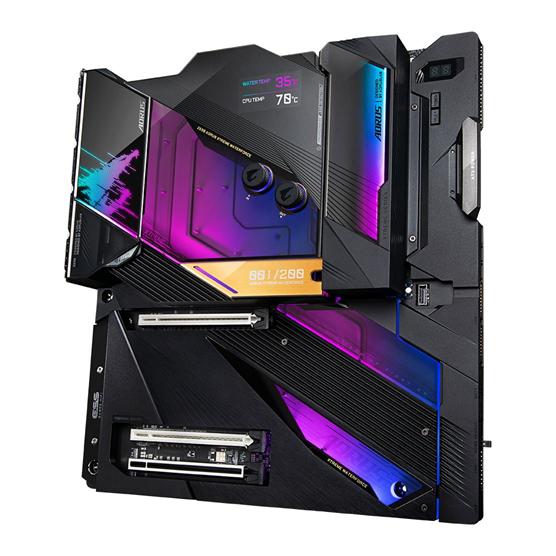

Gigabyte Intel Z690 AORUS XTREME WATERFORCE PCIe 5.0 DDR5 E-ATX Motherboard
Gigabyte Intel Z690 AORUS XTREME WATERFORCE PCIe 5.0 DDR5 E-ATX Motherboard - Image 2
Gigabyte Intel Z690 AORUS XTREME WATERFORCE PCIe 5.0 DDR5 E-ATX Motherboard - Image 3
Gigabyte Intel Z690 AORUS XTREME WATERFORCE PCIe 5.0 DDR5 E-ATX Motherboard - Image 4

Gigabyte Intel Z690 AORUS XTREME WATERFORCE PCIe 5.0 DDR5 E-ATX Motherboard

R54880.00 Incl. Vat


(Displayed price above applies to EFT / Bank Transfer payments only.)

Out of stock

SKU MB-GZ690AXW+WT Categories , , , , Tags , , , , , , ,

KEY FEATURES:

– Intel Socket LGA 1700

– Intel Z690 Chipset

– 4x DDR5 Slots – up to 128GB

– 4x SATA 6Gb/s | 4x M.2 Slot

– E-ATX Form Factor

Description

Gigabyte Intel Z690 AORUS XTREME WATERFORCE PCIe 5.0 DDR5 E-ATX Motherboard

THE NEW ERA OF GAMING
Rule supreme with the Z690 AORUS gaming motherboards. The new era of gaming platforms continues the legendary AORUS bloodline with the most robust power delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best gaming performance.

Intel® Z690 Chipset

LGA 1700 CPU Socket

12th Gen Intel® Compatible Processors

E-ATX Form Factor

The Latest Memory Technology

XTREME MEMORY
GIGABYTE Z690 Motherboards feature the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing and reliable SMD slot. In addition to the hardware upgrades, the user friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability. ​

Superior Thermal Design

1. All-In-One Monoblock
2. NanoCarbon Baseplate
3. Enlarged M.2 thermal Guard
4. Type-C Connector for Waterblock
5. Right-Angled Connectors
6. Smart Fan 6

Versatile Connectivity Options

FOR EVERY CONNECTION
GIGABYTE Z690 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network, storage, and WIFI connectivity. ​

AQUANTIA® 10GBE BASE-T NETWORKING
The AQUANTIA® AQC113C is a high-performance, backward compatible with 10GBASE-T/ 5GBASE-T/ 2.5GBASE-T/ 1000BASE-T/ 100BASE-TX Ethernet Controller which is able to provide up to 10 GbE network connectivity, with 10 times faster transfer speeds compared to general 1GbE networking and is perfectly designed for media centers, workstations and gamers.

INTEL 802.11AX WIFI 6E
Intel’s latest Wireless solution 802.11ax WIFI 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

Audio you Can be Truly Immersed In

ESSENTIAL HEX USB DACES
Sential HEX USB DAC reduces the pre-ringing and provides higher reverberation strength to achieve width and depth on the sound stage. The sound is clearly portrayed making directional sounds clearer and more accurate when playing FPS games.

Make it Your Own

IMPRESSIVE PERSONALIZATION

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard. Note: Lighting effects depicted are for demonstration purposes only. Actual lighting effects may vary by model. ​

CPU
    • LGA1700 socket: Support for 12th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
    • L3 cache varies with CPU
Chipset
    • Intel Z690 Express Chipset
Memory
    • Support for DDR5 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
    • 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    • Dual channel memory architecture
    • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    • Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor+Intel Thunderbolt 4 Controller:

    • 2 x Intel Thunderbolt 4 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120×2880@60 Hz with 24 bpp (via single display output)
      * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-7, “Back Panel Connectors,” for more information.)
      * Support for DisplayPort 1.4 version and HDCP 2.3
Audio 1 ESS ES9280AC DAC chip + 2 ESS ES9080 chips

    • DTS Sound Unbound
    • High Definition Audio
    • 2-channel
    • Support for S/PDIF Out
      * The line out jack and the optical S/PDIF out connector can only be used one at a time.
LAN
    • Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
    • Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN2)
Wireless Communication Module Intel Wi-Fi 6E AX210

    • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    • BLUETOOTH 5.2
    • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
      * Actual data rate may vary depending on environment and equipment.
Expansion Slots
    • 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    • 1 x PCI Express x16 slot, running at x8 (PCIEX8)
      * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
      (The PCIEX16 and PCIEX8 slots conform to PCI Express 5.0 standard.)
    • 1 x PCI Express x16 slot, running at x4 (PCIEX4_1)
      (The PCIEX4_1 slot conforms to PCI Express 3.0 standard.)
Multi-Graphics Technology
    • Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Storage Interface CPU:

    • 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

    • 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
    • 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
    • 4 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel Optane Memory Ready
USB Chipset+Intel Thunderbolt 4 Controller:

    • 2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support

Chipset:

    • 1 x USB Type-C port with USB 3.2 Gen 2×2 support, available through the internal USB header
    • 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+USB 3.2 Gen 2 Hub:

    • 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+USB 3.2 Gen 1 Hub:

    • 4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+USB 2.0 Hub:

    • 4 x USB 2.0/1.1 ports available through the internal USB header (with the included front USB header extension cable)
Internal I/O Connectors

    • 1 x 24-pin ATX main power connector
    • 2 x 8-pin ATX 12V power connectors
    • 1 x CPU fan header
    • 1 x water cooling CPU fan header
    • 1 x water cooling kit CPU LED header (LED_CPU)
    • 1 x AORUS RGB Memory Armor power header (LED_DDR)
    • 4 x system fan headers
    • 4 x system fan/water cooling pump headers
    • 1 x noise detection header
    • 2 x integrated extension cable headers for addressable and RGB LED strips
    • 4 x SATA 6Gb/s connectors
    • 4 x M.2 Socket 3 connectors
    • 1 x front panel header
    • 1 x USB Type-C header, with USB 3.2 Gen 2×2 support
    • 2 x USB 3.2 Gen 1 headers
    • 1 x USB 2.0/1.1 header
    • 2 x temperature sensor headers
    • 1 x power button
    • 1 x reset button

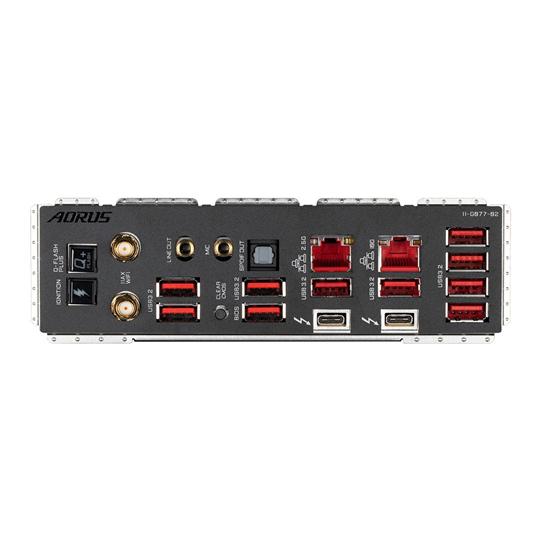

Back Panel Connectors
    • 1 x Q-Flash Plus button
    • 1 x OC Ignition button
    • 1 x Clear CMOS button
    • 2 x SMA antenna connectors (2T2R)
    • 2 x Thunderbolt 4 connectors (USB Type-C port, with USB 3.2 Gen 2 support)
    • 10 x USB 3.2 Gen 2 Type-A ports (red)
    • 2 x RJ-45 ports
    • 1 x optical S/PDIF Out connector
    • 2 x audio jacks
      * The mic in jack supports only mono microphone input.
I/O Controller
    • iTE I/O Controller Chip
H/W Monitoring
    • Voltage detection
    • Temperature detection
    • Fan speed detection
    • Water cooling flow rate detection
    • Fan fail warning
    • Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
    • Noise detection
BIOS
    • 1 x 256 Mbit flash
    • Use of licensed AMI UEFI BIOS
    • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
    • Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
    • Support for Q-Flash Plus
    • Support for Q-Flash
    • Support for Xpress Install
Bundled Software
    • Norton Internet Security (OEM version)
    • cFosSpeed
Operating System
    • Support for Windows 10/11 64-bit
Form Factor
    • E-ATX Form Factor, 30.5cm x 28.5cm

Additional information

Weight 2 kg
CPU Socket Type

CPU Cooling Socket Support

Memory Form Factor

Memory Type

Motherboard Brand

Motherboard Category

Motherboard Chipset

Form Factor

Motherboard Socket Type
