Description

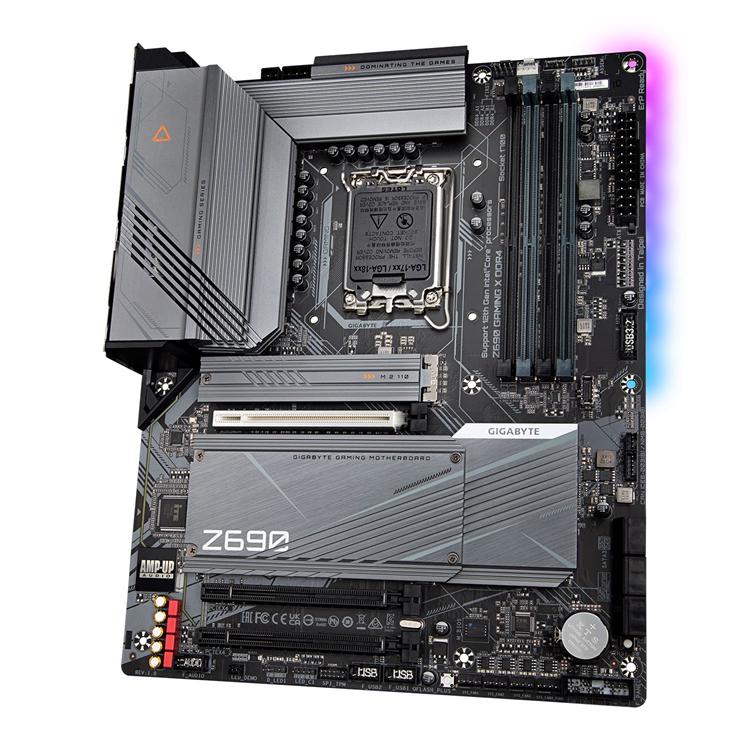

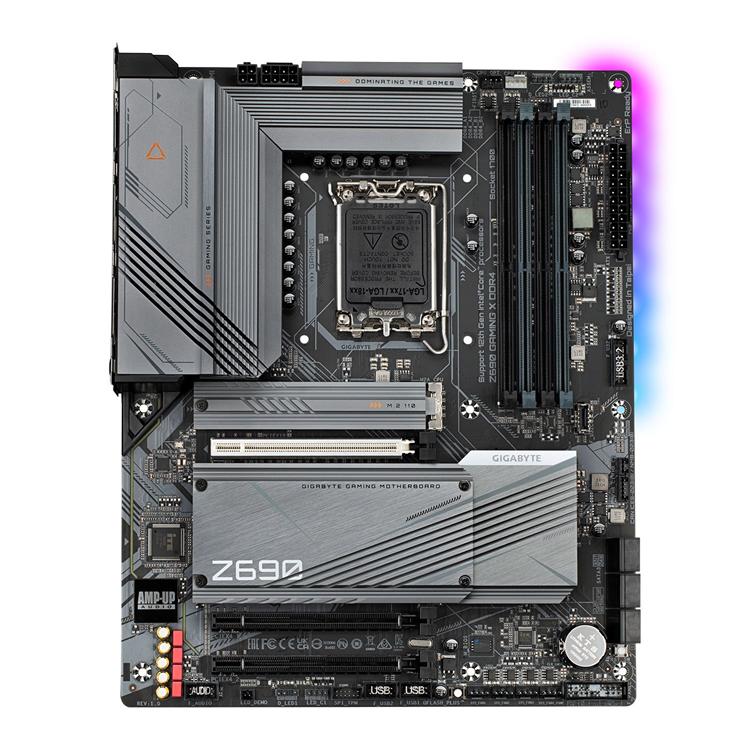

Intel Z690 GAMING X DDR4 ATX Motherboard from Gigabyte
GA-Z690-GAMING-X-DDR4
THE BEST FOR THE PRO
Accelerate your PC’s power with the Z690 Gigabyte gaming motherboards. The next era of gaming platforms continues with the most robust power delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best performance. With technology moving so fast, GIGABYTE still keep up with the latest trends and provide customers with advanced features and the latest technology. GIGABYTE Z690 Series motherboards come with upgraded power solutions, the latest storage standards and outstanding connectivity to enable optimized performance for gaming.
Intel® Z690 Chipset
LGA 1700 CPU Socket
12th Gen Intel® Compatible Processors
ATX Form Factor
Unparalleled Performance
SPEEDS LIKE NO OTHER
GIGABYTE Z690 Motherboards are ready to work with the upcoming PCIe 5.0 devices which are expected to experience double bandwidth than the current PCIe 4.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
Support for DDR4 XMP Up to 5333MHz and Beyond*
IMPRESSIVE MEMORY PERFORMANCE
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.
Expert Cooling Solutions
15 W/mK Thermal Pad
2M.2 Thermal Guard
3Fully Covered Thermal Design
4Enlarged Thermal Guard
52X Copper PCB
Versatile Connectivity Options
FOR EVERY CONNECTION
GIGABYTE Z690 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network and storage connectivity.
2X FASTER THAN EVER
Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2X faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
Audio you can be Truly Immersed In
HI-RES AUDIO
Hi-Res Audio certified, meaning that the product is capable of reproducing frequencies up to 40kHz or above which ensures user with the best audio quality at all times.
REALTEK HIGH-END HD AUDIO CODEC
Supports audio format up to 32-bit/384KHz and output SNR up to Rear/Front 120dB 110dB.
Automatically detects impedance of audio device, preventing low volume and distortion.
Stream voice with up to 110dB(A) SNR via microphone.
IMPRESSIVE PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
Updates Made Easy
STEP 1
Plug the 24pin & 8pin power supply cable into the motherboard.
STEP 2
Download and unzip the motherboard BIOS file and rename to “gigabyte.bin”, save it to a USB flashdrive, then plug it into the Q-Flash USB port.
STEP 3
Press the Q-Flash Plus button, and the motherboard will start updating the BIOS automatically.
Q-FLASH PLUS
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
Specifications
| Core Specifications |
| Edition |
GAMING X |
| Form Factor |
ATX |
| CPU Socket |
1700 |
| Chipset |
Intel Z690 |
| RAM Memory Support |
| Memory Type |
DDR4 |
| Memory Channel |
|
| Memory Type (ECC) |
|
| Memory Type (R/U) |
|
| Memory Speed (Mhz) |
|
| Max. Memory Capacity |
|
| Graphics Support |
| Primary GPU Interface |
PCIe 5.0 (x16) |
| NVIDIA SLI Support |
N/A |
| AMD CrossFire Support |
N/A |
| Integrated Graphics |
Requires Processor Graphics or Discrete GPU |
| On-Board Graphics Connectors |
|
| Internal Connectivity |
| Expansion Slots |
|
| SATA Support |
SATA3 |
| RAID Support via |
|
| Storage Mode Support |
|
| Internal I/O |
-
- 2 x Digital LED strip header
|
| External Connectivity |
| Network Interface Type |
Wired 2.5 Gigabit LAN |
| Network Chip/Modules |
|

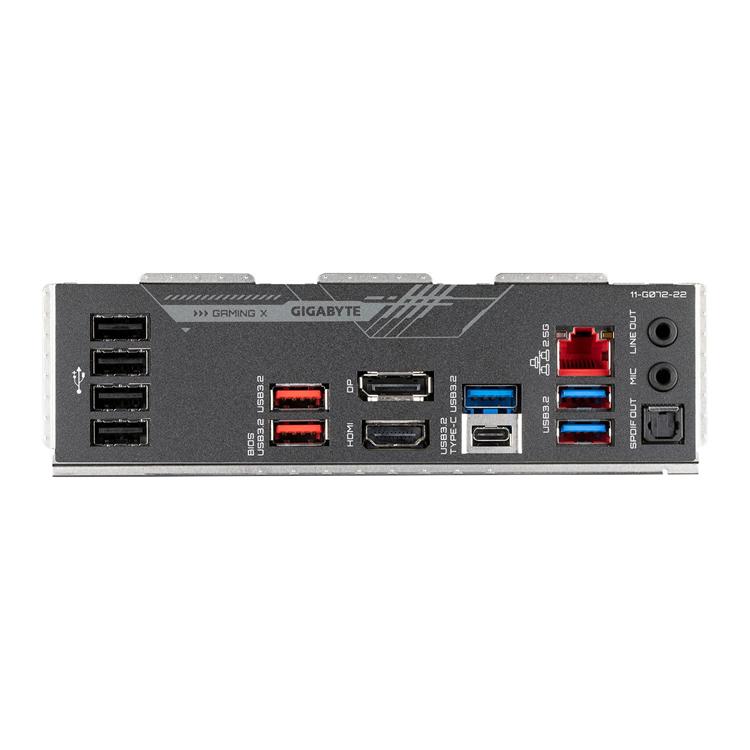

| Rear I/O Connectors |
-
- 1 x USB 3.2 Gen2x2 Type-C
|
| Additional Specifications |
| Water Cooled |
No |
| Cooling |
|
| QPI Speed |
N/A |
| Board Dimensions |
305 x 244 mm |
| Note |
|
