Description

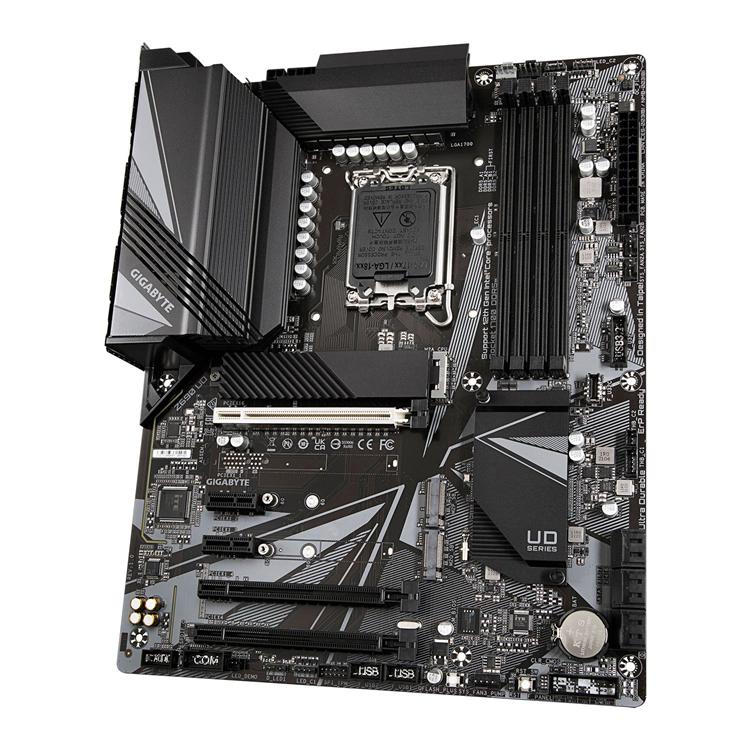

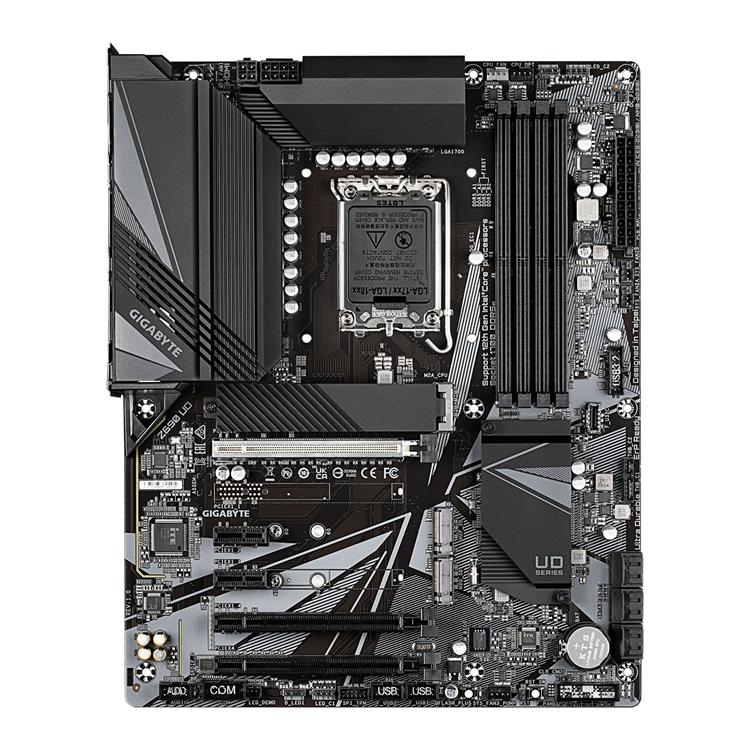

This motherboard is part of the Ultra Durable fromGigabyte. A range designed to last, with resistant and proven materials. The Gigabyte Z690 UD motherboard is designed for the 12th generation Intel Core processors(Intel Alder Lake-S).
Based on the Intel Z690 Express chipset, the Gigabyte Z690 UD AX motherboard will serve as the foundation for your high-performance gaming PC with Gigabyte-exclusive features like Smart Fan 6. It supports 12th generation Intel Core processors, PCI-Express 5.0 16x graphics cards, SATA 6 Gbps and M.2 PCIe 4.0 drives, DDR5 RAM as well as USB 3.1 and 3.2 devices.
-
- Supports 12th Gen Intel® Core™ Series Processors
-
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
-
- Direct 16+1+2 Digital VRM Design with 60A Power Stage* and Tantalum Polymer Capacitor
-
- Ultra Performance VRM Heatsinks
-
- Fast 2.5 GbE LAN with Bandwidth Management
-
- 3 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guard
-
- SuperSpeed USB 3.2 Gen 2×2 TYPE-C® delivers up to 20Gb/s transfer speeds
-
- RGB FUSION 2.0 supports Addressable LED & RGB LED Strips
-
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
-
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Specifications
| Core Specifications |
| Edition |
UD |
| Form Factor |
ATX |
| CPU Socket |
1700 |
| Chipset |
Intel Z690 |
| RAM Memory Support |
| Memory Type |
DDR5 |
| Memory Channel |
|
| Memory Type (ECC) |
|
| Memory Type (R/U) |
|
| Memory Speed (Mhz) |
|
| Max. Memory Capacity |
|
| Graphics Support |
| Primary GPU Interface |
PCIe 5.0 (x16) |
| NVIDIA SLI Support |
N/A |
| AMD CrossFire Support |
N/A |
| Integrated Graphics |
Requires Processor Graphics or Discrete GPU |
| On-Board Graphics Connectors |
|
| Internal Connectivity |
| Expansion Slots |
|
| SATA Support |
SATA3 |
| RAID Support via |
|
| Storage Mode Support |
|
| Internal I/O |
|
| External Connectivity |
| Network Interface Type |
Wired 2.5 Gigabit LAN |
| Network Chip/Modules |
|

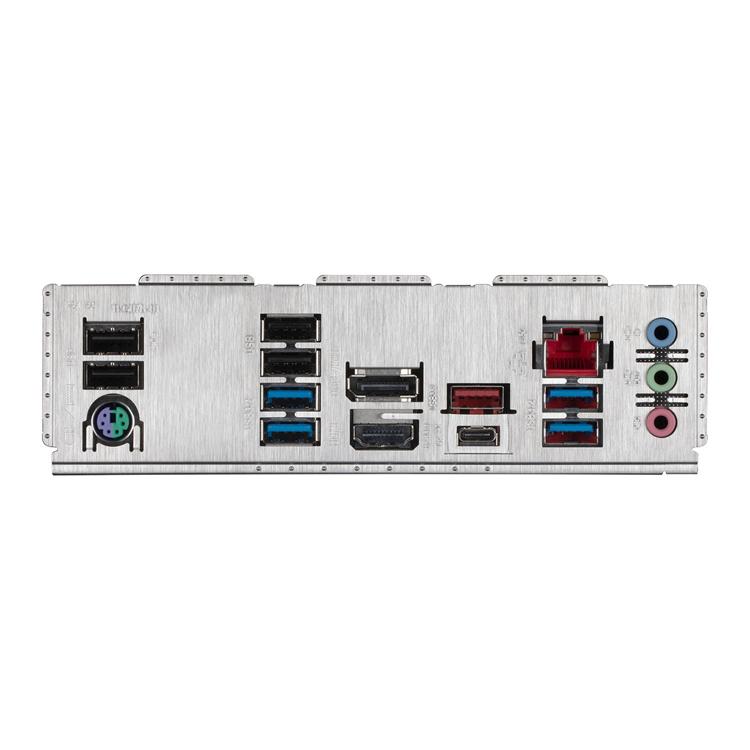

| Rear I/O Connectors |
-
- 1 x USB 3.2 Gen2x2 Type-C
|
| Additional Specifications |
| Water Cooled |
No |
| Cooling |
|
| QPI Speed |
N/A |
| Board Dimensions |
305 x 244 mm |
| Note |
|
