Description
Gigabyte NVIDIA GeForce RTX 3070 Ti 8GB GAMING OC Ampere Graphics Card
GV-N307TGAMING oC-8GD
STEP INTO THE FUTURE OF GRAPHICS
Prepare yourself for an unforgettable gaming experience with the Gigabyte RTX 3070 Ti Gaming OC GPU, powered by the all-new NVIDIA GeForce Ampere architecture boasting 2nd Generation RT cores and 3rd Generation Tensor Cores to bring you the biggest graphical performance leap of the modern era. The RTX 3070 Ti Gaming OC features the renowned WindForce 3x cooling system to keep all that power in check with its alternate spinning unique bladed fans to give you whisper quiet unprecedented high efficiency heat dissipation. A protective metal backplate not only enhances the aesthetics of the card but also enhances the structure to provide full protective coverage and with support for RGB Fusion 2.0 you have access to 16.7M customisable colour options and numerous lighting effects, you can choose from or synchronise with other compatible AORUS devices. Welcome to the future of gaming with GeForce 3070 Ti.
6144 Cuda Cores
1580 MHz Core Clock
1830 MHz Boost Clock
8GB GDDR6X Memory
Expert Cooling like No Other

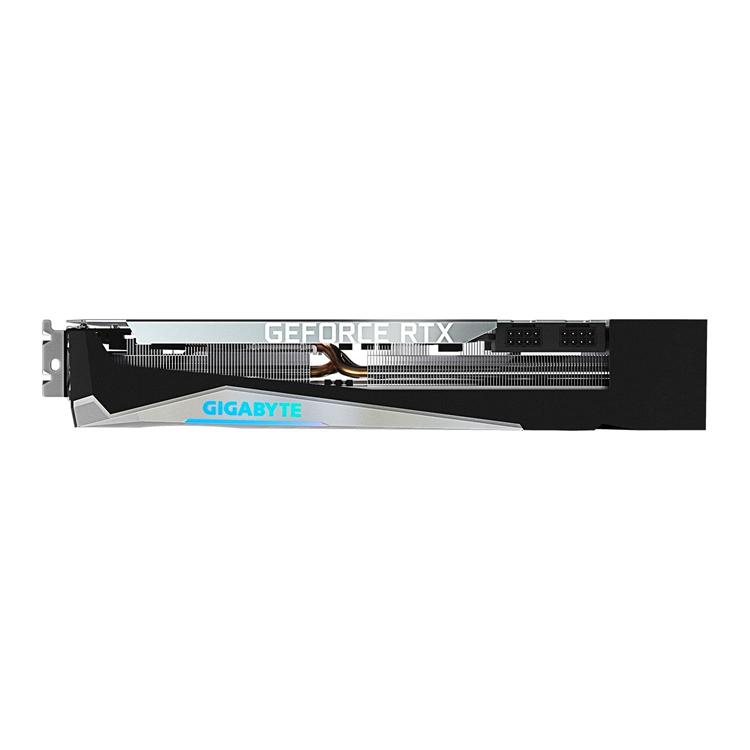

WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 2 x 90mm and 1 x 80mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate direct touch GPU and 3D active fan and Screen cooling, which together provide high efficiency heat dissipation. The alternate spinning can reduce the turbulence of adjacent fans and increase air pressure. The adjacent fans turn in the opposite direction so that the airflow direction between the two fans is the same. The 3D Active Fan offers semi-passive cooling, and the fans remain off when the GPU is under a low load or under low demand.
Made to Last for Years to Come
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface. Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
LARGE COPPER PLATE & HEAT-PIPE
With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.
Create Ambience inside your PC
RGB FUSION 2.0
With 16.7M customisable color options and numerous lighting effects, you can choose lighting effects or synchronise with other AORUS devices.
Expert Protection for Superior Longevity

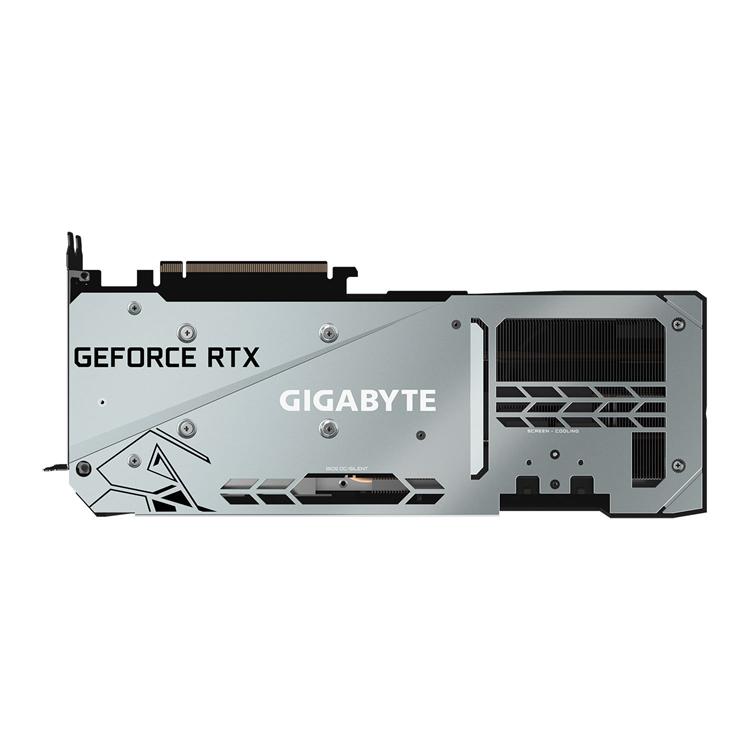

PROTECTIVE METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
DUAL BIOS
Silent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses a better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and a longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Fine-Tune Every Setting with Ease
AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
NVIDIA Ampere Architecture
2ND GEN RT CORES 2X THROUGHPUT
3RD GEN TENSOR CORES UP TO 2X THROUGHPUT
NEW SM 2X FP32 THROUGHPUT
DLSS AI Acceleration
MAX FPS. MAX QUALITY. POWERED BY AI.
NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has arrived to gaming.
Ultimate Ray Tracing And AI
RTX. IT’S ON.
Only NVIDIA’s RTX platform includes dedicated RT Cores for ray tracing and Tensor Cores for AI that enable groundbreaking technologies at breakthrough speed. Experience today’s biggest blockbusters like never before. RTX. It’s On.
NVIDIA Reflex Dynamically Reduces System Latency
VICTORY MEASURED IN MILLISECONDS
NVIDIA Reflex delivers the ultimate competitive advantage. The lowest latency. The best responsiveness. Powered by GeForce RTX™ 30 Series GPUs and NVIDIA® G-SYNC® monitors. Acquire targets faster, react quicker, and increase aim precision through a revolutionary suite of technologies built to optimise and measure system latency for competitive games.
Create as Fast as your Imagination
UP YOUR CREATIVE GAME
Take your creative projects to a new level with GeForce RTX 30 Series GPUs. Delivering AI-acceleration in top creative apps. Backed by the NVIDIA Studio platform of dedicated drivers and exclusive tools. And built to perform in record time. Whether you’re rendering complex 3D scenes, editing 8K video, or livestreaming with the best encoding and image quality, GeForce RTX GPUs give you the performance to create your best.
Transform any Room Into your Home Studio
STREAM LIKE A BOSS
Live streamers can now level up their game even further with the new NVIDIA Broadcast app. It upgrades any room into a home broadcast studio by transforming standard webcams and microphones into smart devices through the power of AI. The Broadcast app offers three AI-powered features which are: Noise Removal, Virtual Background and Auto frame so the focus always remains on you.
DirectX Raytracing Allows Incredibly Realistic Graphic Effects
DIRECTX 12 ULTIMATE OFFERS FEATURES LIKE RAY TRACING AND VARIABLE RATE SHADING
DirectX Raytracing allows games to simulate how light works in real life, providing incredibly realistic and beautiful graphics effects like global illumination, reflections, and shadows.
NVIDIA has partnered closely with Microsoft to enable full DXR support on GeForce GPUs. GeForce RTX GPUs were designed from the start for the extreme demands of ray-tracing workloads. Specialised RT cores, found only on GeForce RTX graphics cards, provide billions of rays per second of performance, and up to 3X the frame rates with DXR games and applications. This makes ray tracing at real-time frame rates possible for the first time.
GeForce RTX 30 Series Features
8K HDR GAMING
Step up to the ultimate 4K gaming experience with the GeForce RTX and enjoy today’s biggest games in amazing detail.
GEFORCE EXPERIENCE
The essential companion to your GeForce graphics card. Capture and share videos, screenshots, and livestreams. Keep your drivers up to date and optimize your games.
GAME READY DRIVERS
Get the highest levels of performance, and the smoothest experience possible, from the moment you start playing.
VIRTUAL REALITY
Take your VR experiences to a whole new level with the powerful new GeForce® RTX GPUs. You can count on the lowest latency and highest performance with VR.
NVIDIA G-SYNC
Get smooth, tear-free gameplay at refresh rates up to 360 Hz, plus HDR and more. NVIDIA G-SYNC gaming monitors are the ultimate go-to equipment for enthusiast gamers.
NVIDIA ANSEL
Turn your screenshots into art with this powerful in-game photo mode that captures 360, HDR, and super-resolution photos.
| SPECIFICATIONS |
| Brand |
Gigabyte |
| Series |
GeForce RTX 30 Series |
| Model |
GV-N307TGAMING OC-8GD |
| Chipset |
| GPU |
GeForce RTX 3070 Ti |
| Chipset Manufacturer |
NVIDIA |
| Interface |
PCI-E 4.0 x16 |
| Base Clock |
1580 MHz |
| Core Clock |
1830 MHz |
| (Reference Card: 1770 MHz) |
| CUDA Cores |
6144 |
| GPU Architecture |
NVIDIA Ampere |
| Memory |
| Effective Memory Clock |
19,000MHz |
| Memory Bandwidth |
608 GB/s |
| Memory Size |
8 GB |
| Memory Interface |
256-bit |
| Memory Type |
GDDR6X |
| 3D API |
| DirectX |
12 Ultimate |
| OpenGL |
4.6 |
| Connectivity |
| Ports |
2x DisplayPort 1.4a |
| 2x HDMI 2.1 |
| Multi-Monitor Support |
4 |
| Maximum Digital Resolution |
7680×4320 |
| General |
| SLI Support |
N/A |
| Features |
2nd Gen Ray Tracing Cores |
| 3rd Gen Tensor Cores |
| Windforce 3X Cooling System |
| 3D Active Fan |
| Protection Metal Back Plate |
| Dual BIOS |
| AORUS Engine |
| Friendly PCB Design |
| RGB Fusion 2.0 |
| PCI Express Gen 4 |
| Real-Time Ray Tracing Technology |
| NVIDIA DLSS |
| NVIDIA GeForce Experience |
| Power Requirements |
| Recommended Power Supply |
750W |
| Power Connector |
2x 8-Pin |
| Physical Aspects |
| Form Factor |
ATX |
| Slot Width |
2 Slot |
| Dimensions |
320 x 129 x 55 mm |
| Warranty Information |
| Warranty |
3 Year Warranty |
