Description
Part numberGV-R66EAGLE-8GD

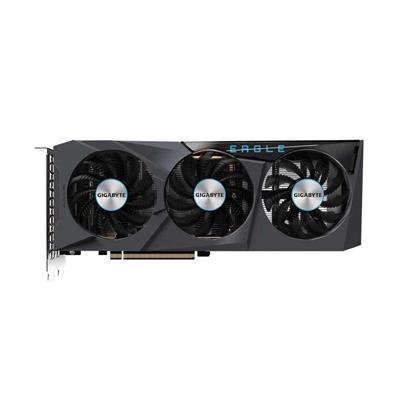

The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning, 5 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure. The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
| SPECIFICATIONS | |
| Brand | Gigbayte |
| Series | Radeon RX 6000 Series |
| Model | RX 6600 Eagle 8G (GV-R66EAGLE-8GD) |
| Chipset | |
| GPU | Radeon |
| Chipset Manufacturer | AMD |
| Interface | PCI-E 4.0 |
| Compute Units | 28 |
| Ray Accelerators | 28 |
| ROPs | 64 |
| Base Clock | Up to 1626 MHz |
| Game Clock | Up to 2044 MHz |
| Boost Clock | Up to 2491 MHz |
| Stream Processors | 1792 |
| Texture Units | 128 |
| GPU Architecture | AMD RDNA 2 Architecture |
| Memory | |
| Infinity Cache | 32 MB |
| Effective Memory Clock | 14 Gbps |
| Memory Size | 8GB |
| Memory Interface | 128-bit |
| Memory Type | GDDR6 |
| Memory Bandwidth | Up to 224 GB/s |
| 3D API | |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Connectivity | |

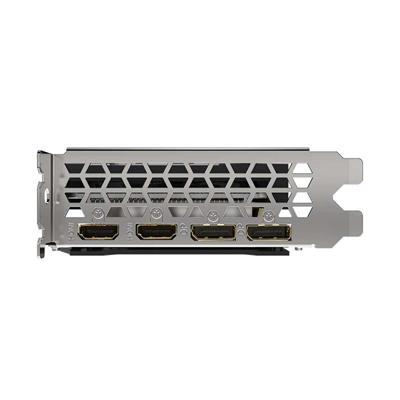

| Ports | 2x DisplayPort 1.4 |
| 2x HDMI 2.1 | |
| Max. Digital Resolution | 7680 x 4320 |
| VR Ready | Yes, Radeon VR Ready Premium |
| General | |
| Features | 7nm GPU |
| PCI Express 4.0 Support | |
| AMD FreeSync Technology | |
| DisplayPort 1.4 | |
| HDMI 2.1 | |
| HDMI 4K Support | |
| 4K H264 Decode | |
| 4K H264 Encode | |
| H265/HEVC Decode | |
| H265/HEVC Encode | |
| AV1 Decode | |
| Video Streaming up to 8K | |
| Game Driver Optimizations | |
| AMD Radeon VR Ready Premium | |
| AMD FidelityFX | |
| AMD Radeon Image Sharpening | |
| AMD Radeon Anti-Lag | |
| AMD Radeon Software | |
| Power Requirements | |
| Minimum Recommended Power Supply | 500W |
| Power Connector | 1x 8-Pin |
| Physical Aspects | |
| Form Factor | ATX |
| Slot Width | Dual Slot |
| Dimensions | 282 x 113 x 41 mm (LxWxH) |
| Warranty Information | |
| Warranty | 3 Year Warranty |
