Description
Part numberGV-R665XTGAMING OC-8GD

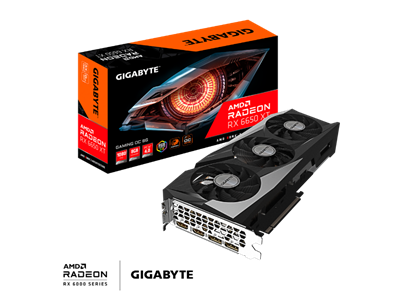

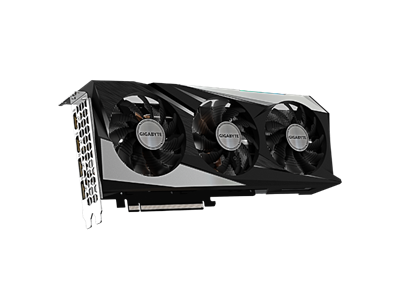

Gigabyte Radeon™ RX 6650 XT GAMING OC 12G Video Card
-
- Boost Clock: up to 2,694 MHz
-
- Game Clock: up to 2,523 MHz
-
- Powered by AMD RDNA™ 2 Radeon™ RX 6650 XT
-
- 8GB GDDR6 VRAM w/ 280GB per second Bandwidth
-
- 2x HDMI v2.1 ports + 2x DisplayPort v1.4a ports
-
- WINDFORCE 3X Cooling System with Alternate Spinning Fans
-
- Screen Cooling
-
- Graphene Nano Lubricant
-
- RGB Fusion 2.0
-
- Protection Metal Back Plate
-
- 3 Year Manufacturer Limited Warranty
-
- Optional Free 4th Year Warranty
(Online registration required for fourth year)
- Optional Free 4th Year Warranty
The Radeon™ RX 6650 XT has 2,048 stream processors, powerful new compute units, and the all new AMD Infinity Cache along with 8GB of dedicated GDDR6 memory, delivers ultra-high frame rates and serious levels of 1440p / 1080p Gaming.
Part numberRGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS enabled devices.
AORUS ENGINE
Clock speeds, voltage, fan excellence, power target can be monitored and tuned in real-time according to your own preference through this intuitive interface.
Features

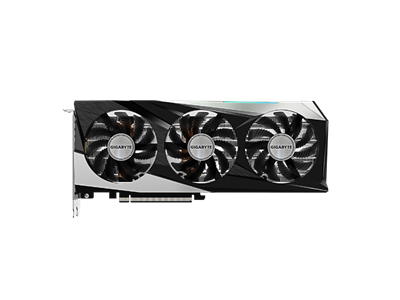

WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning, 5 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING FANS
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence while enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. The LED fan indicator can provide an instant display of fan status.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 210%; close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU.
PERFORMANCE
The Radeon™ RX 6650 XT has 2,048 stream processors, powerful new compute units, and the all new AMD Infinity Cache along with 8GB of dedicated GDDR6 memory, delivers ultra-high frame rates and serious levels of 1440p / 1080p Gaming.

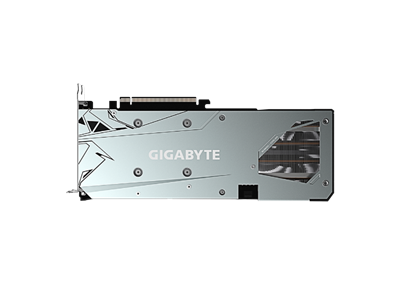

PROTECTIVE METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
POWER INDICATORS
When experiencing any power supply abnormality, the indicator will alert gamers by flashing its light.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Additional Information:
Minimum System Requirements
-
- Supported Operating Systems: Windows 11 / 10 64-bit, Linux x86 64-bit
-
- 500W Power Supply with 1x 8-pin PCIe power connector
-
- PCI Express® 4.0 / 3.0 x16 Slot available on the motherboard
-
- Minimum 8GB of System Memory, 16GB Recommended.
Specifications
| Make and Model | Gigabyte Radeon™ RX 6650 XT GAMING OC 12G Video Card |
|---|---|
| Part Number | GV-R665XTGAMING OC-8GD |
| Color | Black |
| GPU | Radeon™ RX 6650 XT Graphics |
| Stream Processors | 2,048 |
| Engine Clock | Boost Clock: Up to 2,694 MHz nGame Clock: Up to 2,523 MHz |
| Memory | 8GB GDDR6 |
| Memory Clock | 17.5 Gbps Effective |
| Memory Bandwidth | 128bit / 280GB per second |
| Bus Interface | PCI Express v4.0 x16 (Compatible with PCIe v3.0 x16 Motherboards at reduced performance levels) |
| Crossfire Support | Yes for DirectX® 12 and Vulkan® |
| Lighting Software | Gigabyte RGB FUSION 2.0 Lighting Software |
| Control Software | AORUS Engine App |
| Cooling | 3x RGB Cooling Fans |
| Resolution & Refresh Rate | HDMI v2.1: 7,680 × 4,320 DisplayPort v1.4a: 7,680 × 4,320 |
| Max. Display Support | 4 |

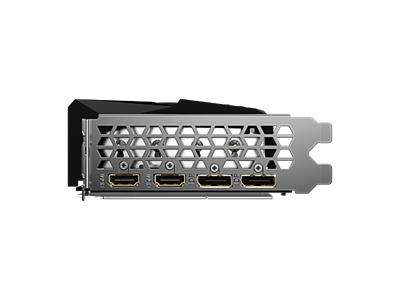

| I/O Ports | 2x HDMI v2.1 ports 2x DisplayPort v1.4a ports |
| AMD Features | 7nm GPU AMD FidelityFX AMD FreeSync™ Technology DirectX® 12 Ultimate DisplayPort™ 1.4 with DSC Game Driver Optimizations GDDR6 Memory Hardware Raytracing HDMI™ 2.1 VRR PCI® Express 4.0 Support Radeon™ Anti-Lag Radeon™ Image Sharpening Radeon™ Software Radeon™ VR Ready Premium Video Streaming up to 8K |
| Operating System Support | Windows 11 / 10, 64-bit Linux Operating System |
| Recommended Power Supply | 500 Watts or more |
| Power Connectors | 1x 8-pin PCIe Connector |
| Dimensions | 282 x 115 x 50mm |
| Weight | N/A |
