Original price was: R2000.00.R1941.00Current price is: R1941.00. Incl. Vat
(Displayed price above applies to EFT / Bank Transfer payments only.)
KEY FEATURES:
– 750W ATX 3.0 Power Supply
– Fully Modular Cable Design
– 80 PLUS Gold Certified
– PCIe 5.0 Ready
– Native 12VHPWR Connector
– 120mm HYB Smart Fan
– Main Japanese Capacitors
– Flat Black Modular Cables
– 5 Year Warranty
The Gigabyte UD750GM PG5 is engineered for gamers and PC enthusiasts seeking reliable and efficient power delivery for modern gaming PCs and productivity systems. Built around the Intel ATX 3.0 standard and PCIe 5.0 requirements, the PSU is fully prepared for modern NVIDIA GeForce RTX graphics cards and next-generation desktop platforms.
Delivering 750W of continuous output power, the UD750GM PG5 includes a native 16-pin 12VHPWR connector capable of directly powering modern PCIe Gen 5 graphics cards without requiring adapters. ATX 3.0 compliance also improves transient power excursion handling required by modern GPUs and processors.
Certified with 80 PLUS Gold efficiency, the PSU achieves up to 90% efficiency at typical load conditions, helping reduce excess heat generation, power waste, and operating noise during demanding gaming workloads.

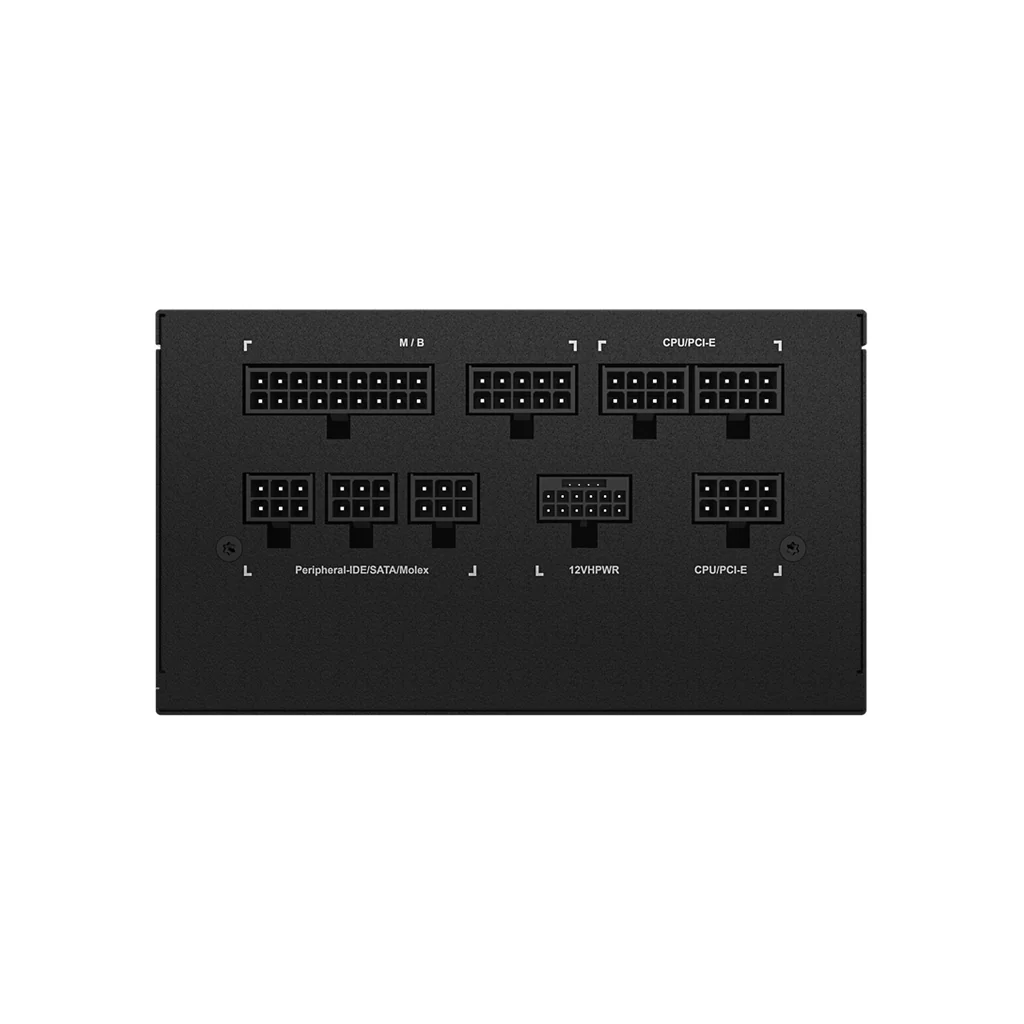

The fully modular cable design allows users to install only the cables required for their build, improving airflow and simplifying cable management inside gaming chassis. Gigabyte also includes flat all-black modular cables for cleaner internal aesthetics and easier routing flexibility.
Internally, the PSU utilizes high-quality Japanese primary capacitors for improved long-term reliability, voltage stability, and enhanced durability during gaming and productivity workloads. A powerful single +12V rail further improves stable power delivery for modern CPUs and graphics cards.

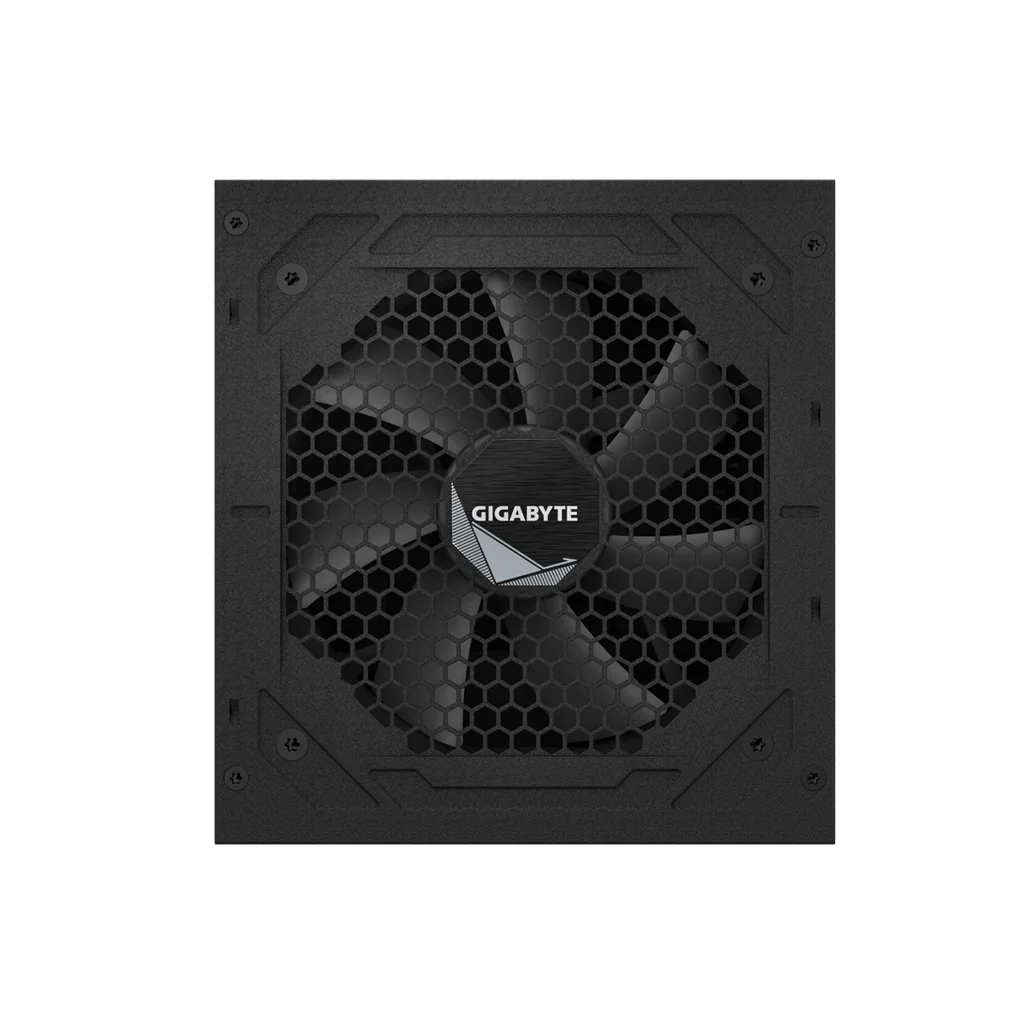

Cooling is handled by a quiet 120mm Hydraulic Bearing smart fan optimized for efficient airflow, lower operating noise, and long operational lifespan. Intelligent fan control dynamically adjusts fan speed according to PSU temperatures and system load conditions, while semi-passive operation helps maintain quieter everyday performance.
Comprehensive protection systems including OVP, OPP, SCP, UVP, OCP, OTP, SIP, and NLO help safeguard connected hardware against electrical irregularities and unexpected operating conditions. Combining modern PCIe 5.0 compatibility, Gold-rated efficiency, and modular flexibility, the Gigabyte UD750GM PG5 is an excellent PSU choice for modern gaming and productivity desktop systems.
NEXT-GEN GPU READY
PCIe 5.0 support with native 12VHPWR connectivity supports modern graphics cards.
FULLY MODULAR DESIGN
Install only the cables required for cleaner airflow and easier cable management.
HIGH-EFFICIENCY PERFORMANCE
80 PLUS Gold certification reduces excess heat and power waste.
RELIABLE INTERNAL COMPONENTS
Japanese capacitors improve long-term durability and stable power delivery.
QUIET COOLING DESIGN
The HYB smart fan delivers efficient airflow with reduced operating noise.
| Feature | Details |
|---|---|
| Brand / Model | Gigabyte UD750GM PG5 |
| Part Number | GP-UD750GM PG5 |
| Product Type | ATX Power Supply |
| Wattage | 750W |
| Modular Type | Fully Modular |
| ATX Standard | Intel ATX 12V v3.0 |
| PCIe Standard | PCIe 5.0 |
| Efficiency Certification | 80 PLUS Gold |
| Efficiency | Up to 90% @ Typical Load |
| PFC Type | Active PFC (>0.9 Typical) |
| Cooling Fan | 120mm Smart Fan |
| Fan Bearing Type | Hydraulic Bearing |
| Mainboard Connector | 1 × 20+4-Pin ATX |
| CPU Connectors | 2 × 4+4-Pin EPS |
| PCIe 5 Connector | 1 × 12VHPWR |
| PCIe Connectors | 4 × 6+2-Pin PCIe |
| SATA Connectors | 8 |
| Molex Connectors | 3 |
| Floppy Connector | 1 |
| Capacitors | Main Japanese Capacitors |
| MTBF | >100,000 Hours |
| Hold-Up Time | >16ms |
| Power Good Signal | 100–150ms |
| Protection Features | OVP • OPP • SCP • UVP • OCP • OTP • SIP • NLO |
| Cable Type | Flat All-Black Modular Cables |
| Input Voltage | 100–240 Vac |
| Input Frequency | 50–60 Hz |
| Dimensions | 150 × 140 × 86 mm |
| Colour | Black |
| Recommended Usage | Gaming PCs • Desktop Systems |
| Warranty | 5 Year Warranty |
| Weight | 2.5 kg |
|---|---|
| PSU Efficiency Rating | |
| PSU Form Factor | |
| PSU Manufacturer | |
| PSU Modularity | |
| PSU Wattage |
