Description

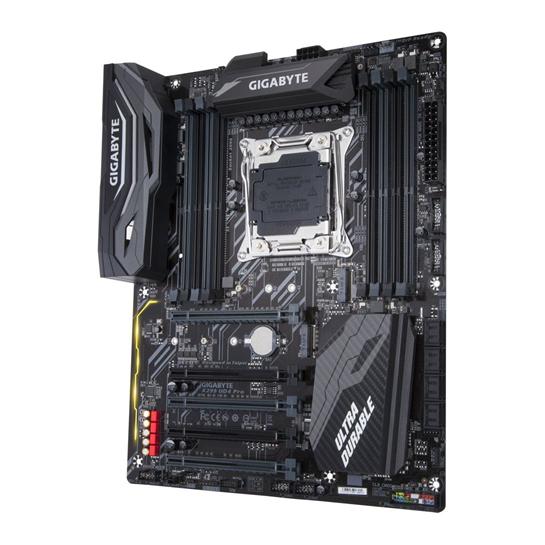

Part numberGA-X299-UD4-PRO
Features
• Supports Intel® Core™ X-Series Processor Family.
• Quad Channel Non-ECC Unbuffered DDR4, 8 DIMMs.
• Intel® Optane™ Memory Ready.
• Intel® VROC ready.
• ASMedia 3142 USB 3.1 Gen 2 with USB Type-A.
• 3-Way Graphics Support.
• Server-Class Digital Power Design.
• ALC1220 120dB SNR HD Audio with Smart Headphone AMP and WIMA audio capacitor.
• RGB FUSION support Digital LED and RGBW Light Strips.
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP.
• Dual Ultra-Fast M.2 with PCIe Gen3 x4 interface.
• NVMe PCIe Gen3 x4 U.2 support by optional adaptor.
• Intel GbE LAN Gaming Network with cFosSpeed Internet Accelerator Software.
• Anti-Sulfur Resistor Design.
• Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection.
• Lightning-Fast Intel® Thunderbolt™ 3 AIC Support.
• GIGABYTE UEFI DualBIOS™.
• APP Center Including EasyTune™ and Cloud Station™ Utilities.
Do More with Your Fastest Cores
Direct your most critical workloads to your processor’s fastest cores with Intel® Turbo Boost Max Technology 3.0. Intel® Turbo Boost Max Technology 3.0 is a combination of software and hardware that delivers more than 15% better single-threaded performance. Now available on select Intel® Core™ X-series processor family for Intel® X299 platforms.
GIGABYTE RGB Fusion APP
Don’t just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colours and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.
ALC 1220 120dB SNR HD Audio with Smart Headphone Amp
The ALC1220 is a high-performance multi-channel High Definition Audio Codec with up to 120dB SNR for crystal clear audio and features such as Smart Headphone Amp, 114dB SNR recording for precise voice chats and hardware decoding of DSD128, ensuring users get the best possible audio quality from their PC.
Part numberSmart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
Fan Stop
Achieve fan silence. With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customised to your liking.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system’s behaviour; these are the possibilities of the System Information Viewer.
Server-Class Digital Power Design
GIGABYTE X299 series motherboards use an all-digital CPU power design which includes both digital PWM Controllers and Smart Power Stage controllers. These 100% digital controllers offer incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from their new Intel® Core™ X-series CPUs.
Server Level Chokes
GIGABYTE X299 series motherboards feature Server Level Chokes.
• Server level reliability
• High current capacity
• New design reduces heat created by power loss and provides efficient power delivery to CPU VRM area.
Turbo B-Clock – Built-in Advanced Performance Tuning IC
Turbo B-Clock Tuning IC in the X299 series motherboards enable overclockers to have the ability to change their BCLK frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 90MHz to 500MHz are now possible, so that overclockers are not limited to the 5% ranges of traditional straps.
CPU PEG bus, chipset PCIe bus and DMI bus (link between CPU and chipset) have the ability to change from default of 100MHz linearly up to 200MHz synchronously
*Turbo B-Clock overclocking range may vary according to CPU, chipset and used devices capabilities.
Performance Fuelled by Optane
The GIGABYTE X299 Platform is the first enthusiast platform that supports Intel’s latest Optane technology. Optane fuels storage performance by acting as a cache drive giving users a significant boost compared to traditional mechanical drives.
Dual Ultra-Fast NVMe PCIe Gen3 x4 M.2
With two NVMe PCIe Gen3 x4 M.2 connectors on board, GIGABYTE brings to the user PCI-Express connectivity for SSD devices. Delivering up to 32 Gb/s data transfer speed per connector, the dual M.2 provides an ideal storage solution as it also supports RAID modes.
Support for DDR4 XMP Up to 4400MHz and Beyond
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 4400MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.
Refreshed BIOS Easy, Smart, and Friendly
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
EasyTune™
GIGABYTE’s EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
GIGABYTE Patented – DualBIOS™ Design
GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC’s most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a ‘Main BIOS’ and a ‘Backup BIOS’, protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.
@BIOS
The GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.
Long Lifespan Durable Black™ Solid Caps
GIGABYTE motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customised jet black, exclusively on GIGABYTE motherboards.
Easy to Install “G Connector” Design
The tiny cables of the front panel connectors can be hard to manipulate as space is restricted and indicators being tiny. With the G Connector, you can connect all the FP cables at once, simplifying the process of building your next PC and saving you some frustrations.
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | Socket 2066 |
| Model | GA-X299-UD4-PRO |
| CPU | Support for Intel Core X Series Processors in the LGA2066 Package |
| L3 Cache Varies With CPU | |
| Chipset | Intel X299 Express Chipset |
| Memory | 8x DDR4 DIMM Sockets Supporting Up to 128 GB of System Memory. Supported When Using a 44-Lane or 28-Lane CPU (6-Core or Above). |
| 4x DDR4 DIMM Sockets Supporting Up to 64 GB of System Memory. Supported When Using a 16-Lane CPU (4-Core). | |
| 4 Channel Memory Architecture. Supported When Using a 44-Lane or 28-Lane CPU (6-Core or Above). | |
| Dual CChannel Memory Architecture. Supported When Using a 16-Lane CPU (4-Core). | |
| Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400 / 2133 MHz Memory Modules | |
| Support for Non-ECC Un-Buffered DIMM Memory Modules | |
| Support for Extreme Memory Profile (XMP) Memory Modules | |
| Audio | Realtek ALC1220 Codec |
| High Definition Audio | |
| 2/4/5.1/7.1-Channel | |
| Support for S/PDIF Out | |
| LAN | Intel GbE LAN Chip (10/100/1000 Mbit) |
| Expansion Slots | 1x PCI Express x16 Slot, Running at x8 (PCIEX8) |
| 2x PCI Express x16 Slots, Running at x4 (PCIEX4_1, PCIEX4_2) *1 | |
| Storage Interface | Chipset: |
| 1x M.2 Connector (Socket 3, M Key, Type 2242/2260/2280 SATA and PCIe x4/x2 SSD Support) (M2Q_32G) | |
| 1x M.2 Connector (Socket 3, M Key, Type 2260/2280/22110 SATA and PCIe x4/x2 SSD Support) (M2P_32G) | |
| 8x SATA 6Gb/s Connectors | |
| Support for RAID 0, RAID 1, RAID 5, and RAID 10 *2 | |
| Intel Optane Memory Ready | |
| Intel VROC Ready | |
| Multi-Graphics Technology | Support for NVIDIA Quad-GPU SLI and 3-Way (with 44-Lane CPU) / 2-Way (with 44 & 28-Lane CPU) NVIDIA SLI Technologies |
| Support for AMD Quad-GPU CrossFire and 3-Way (with 44-Lane CPU) / 2-Way AMD CrossFire Technologies | |
| USB | Chipset ASMedia USB 3.1 Gen 2 Controller: |
| 2x USB 3.1 Gen 2 Type-A Ports (Red) on the Back Panel | |
| Chipset: | |
| 10x USB 3.1 Gen 1 Ports (6 Ports on the Back Panel, 4 Ports Available Through the Internal USB Headers) | |
| 4x USB 2.0/1.1 Ports Available Through the Internal USB Headers | |
| Internal I/O Connectors | 1x 24-pin ATX Main Power Connector |
| 1x 8-pin ATX 12V Power Connector | |
| 1x CPU Fan Header | |
| 1x Water Cooling CPU Fan Header | |
| 2x System Fan Headers | |
| 1x 3 Amp Fan/Water Cooling Pump Header | |
| 1x Digital LED Strip Header | |
| 1x Digital LED Strip Power Select Jumper | |
| 2x RGB (RGBW) LED Strip Extension Cable Headers | |
| 2x M.2 Socket 3 Connectors | |
| 8x SATA 6Gb/s Connectors | |
| 1x Intel VROC Upgrade Key Header | |
| 1x Front Panel Header | |
| 1x Front Panel Audio Header | |
| 1x S/PDIF Out Header | |
| 2x USB 3.1 Gen 1 Headers | |
| 2x USB 2.0/1.1 Headers | |
| 1x Thunderbolt Add-In Card Connector | |
| 1x Trusted Platform Module (TPM) Header (2×6 pin, for the GC-TPM2.0_S Module Only) | |
| 1x Temperature Sensor Header | |
| 1x Clear CMOS Jumper | |
| Back Panel Connectors | 1x PS/2 Keyboard/Mouse Port |
| 2x USB 3.1 Gen 2 Type-A Ports (Red) | |
| 6x USB 3.1 Gen 1 Ports | |
| 1x RJ-45 Port | |
| 6x Audio Jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In) | |
| I/O Controller | iTE I/O Controller Chip |
| Hardware Monitor | Voltage Detection |
| Temperature Detection | |
| Fan Speed Detection | |
| Water Cooling Flow Rate Detection | |
| Overheating Warning | |
| Fan Fail Warning | |
| Fan Speed Control *3 | |
| BIOS | 2x 128 Mbit Flash |
| Use of Licensed AMI UEFI BIOS | |
| Support for DualBIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Operating System | Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Notes | *1 All of the PCI Express slots conform to PCI Express 3.0 standard. Refer to “1-6 Setting up AMD CrossFire /NVIDIA SLI Configuration,” for the installation notices for the PCI Express x16 slots. |
| *2 Refer to “1-9 Internal Connectors,” for the installation notices for the M.2 and SATA connectors. | |
| *3 Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
