Description

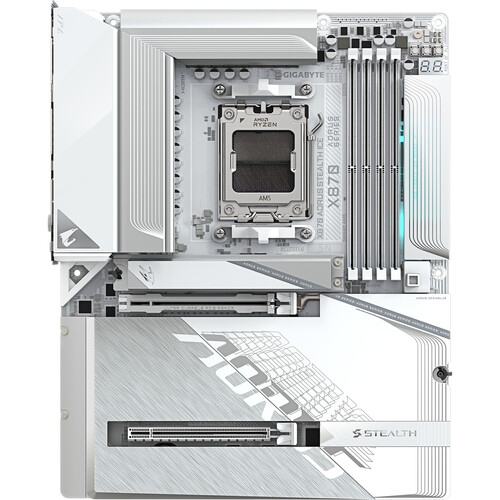

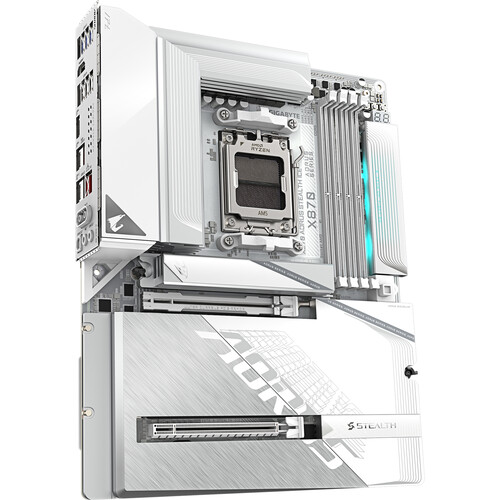

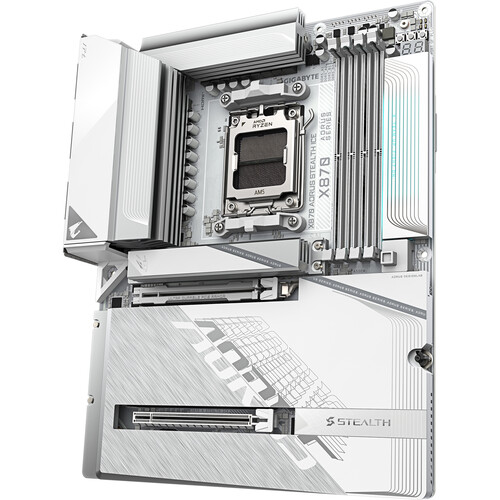

X870 A STEALTH ICE
The Gigabyte X870 AORUS Stealth ICE redefines high-performance computing with a clean reverse-connector white design and robust internals. Built for AMD Ryzen™ 7000 / 8000 / 9000 series processors, it delivers premium features such as 16+2+2 Twin Digital VRM, DDR5 overclocking up to 8200 MT/s, 4× M.2 slots (2× PCIe 5.0, 2× PCIe 4.0), Wi‑Fi 7, 2.5 GbE LAN, 2× USB4 Type‑C, and tool‑free EZ‑Latch and EZ‑Debug designs.
The standout innovation is Gigabyte’s 64MB Driver BIOS, which pre-loads Wi-Fi drivers for plug‑and‑play setup—even during Windows 11 installation—making setup easier than ever. This board is ideal for builders who want extreme performance, advanced overclocking, and clean aesthetics in one package.
Key Features
-
16 + 2 + 2 Twin Digital VRM with premium MOSFETs and 6‑layer 2× copper PCB
-
Supports AMD Ryzen™ 9000 / 8000 / 7000 series CPUs (Socket AM5)
-
DDR5 support via 4 DIMMs, up to 8200 MT/s OC with D5 Bionic Corsa
-
Four M.2 slots: 2× PCIe 5.0, 2× PCIe 4.0, all with pressurized M.2 EZ‑Flex / Thermal Guard
-
PCIe 5.0 x16 UD Slot with reinforced structure for GPUs
-
X3D Turbo Mode enables automatic FPS boost for non‑X3D CPUs
-
Driver BIOS (64 MB) stores Wi-Fi driver for automatic network setup during Windows install
-
Smart Fan 6 with dual curve mode, 8 hybrid fan headers
-

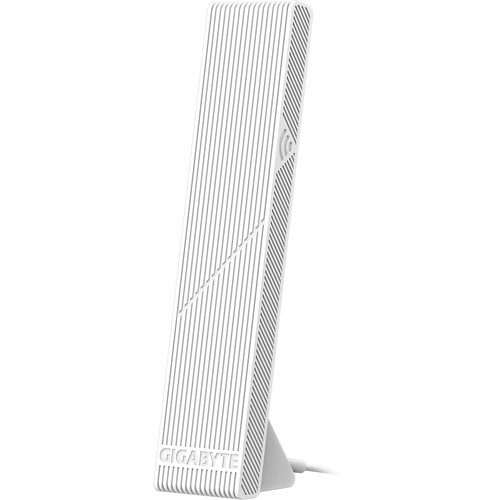

Networking: Wi-Fi 7 (320MHz) with EZ‑Plug antenna, 5 GbE LAN
-
I/O includes 2× USB4 Type‑C (40 Gb/s + DP‑Alt), USB 3.2 Gen2/Gen1, HDMI, Debug Zone, Power Button
-
DIY‑friendly features: PCIe & M.2 EZ‑Latch, EZ‑Debug LEDs, Multi‑Key controls, RGB Fusion headers
Specifications:
| Specification | Details |
|---|---|
| Model | Gigabyte X870 AORUS Stealth ICE |
| Form Factor | ATX (305 × 244 mm) |
| Chipset / Socket | AMD X870 / AM5 |
| CPU Compatibility | Ryzen™ 7000 / 8000 / 9000 Series CPUs |
| VRM Design | 16+2+2 digital power phases, high‑grade components |
| Memory | 4× DDR5 DIMMs up to 8200 MT/s (OC) |
| Expansion Slots | 1× PCIe 5.0 x16 (UD), 1× PCIe 4.0 x4 effort |
| M.2 Slots | 4× M.2 SSD: 2× PCIe 5.0, 2× PCIe 4.0 with pressure pads |
| SATA Ports | 2 × SATA 6 Gb/s |
| RAID Support | RAID 0, 1, 5, 10 for both NVMe and SATA storage |
| LAN | 5 GbE RJ‑45 |
| Wireless / Bluetooth | Wi‑Fi 7 (320 MHz) with EZ‑Plug antenna, Bluetooth 5.3/5.x |

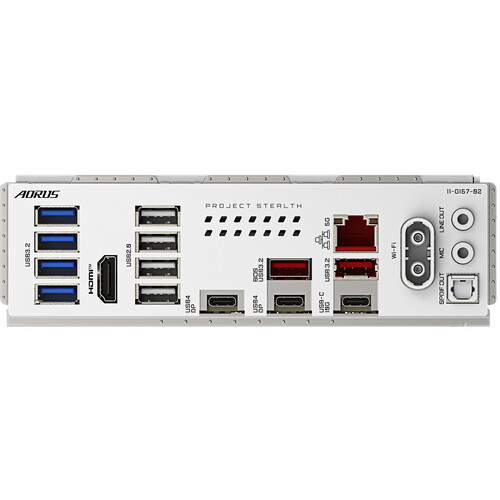

| Rear I/O Ports | 2× USB4 Type‑C, USB 3.2 Gen2 & Gen1, USB 3.2 Gen1 ×4, USB 2.0 ×4, HDMI, Q‑Flash Plus, Debug Zone |
| Cooling & Thermal | VRM Thermal Armor Advanced, M.2 Thermal Guard L & Ext., M.2 EZ‑Flex |
| Fan Control | Smart Fan 6 with 8 headers, dual-curve support |
| BIOS Features | Driver BIOS, X3D Turbo Mode, Q‑Flash Plus, usable BIOS update via Auto Scan |
| Power Connectors | UD Solid-Pin connectors: 24-pin + 4+8-pin CPU |
| RGB Headers | 1× RGB + 3× ARGB headers for LED lighting |
| Warranty | 3 Year Warranty |
