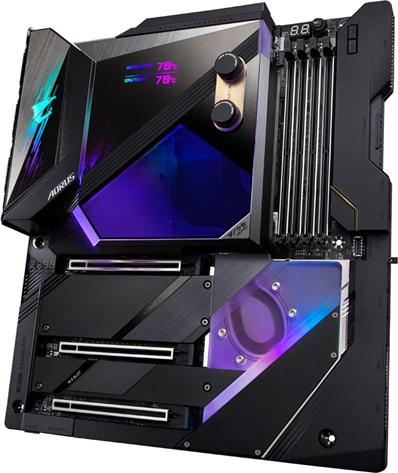

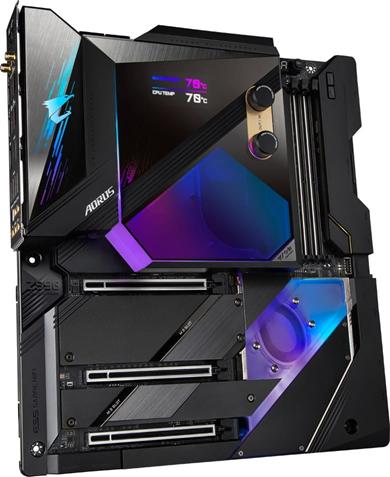

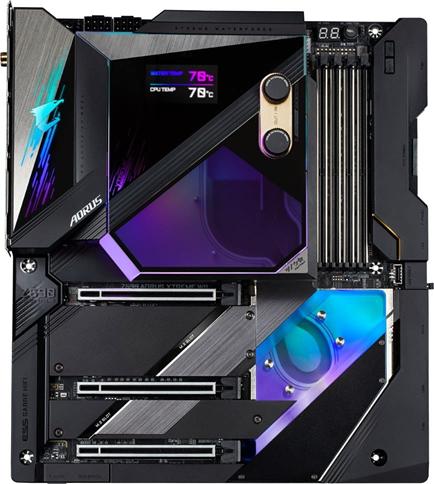

Gigabyte Z590 Aorus Xtreme Waterforce
Gigabyte Z590 Aorus Xtreme Waterforce - Image 2
Gigabyte Z590 Aorus Xtreme Waterforce - Image 3
Gigabyte Z590 Aorus Xtreme Waterforce - Image 4
Gigabyte Z590 Aorus Xtreme Waterforce - Image 5

Gigabyte Z590 Aorus Xtreme Waterforce

R34352.00 Incl. Vat

KEY FEATURES:
– E-ATX Form Factor
– Intel Z590 Chipset
– Socket LGA 1200 Rocket Lake
– 4x DDR4 DIMM Slots, Supports up to 128GB
– Supports up to DDR4-5400MHz(OC)
– Intel Optane Memory Ready
– Shielded Memory Routing to Avoid Interference
– 2x PCIe 4.0 x16 Slots(1x @x8 Mode), 1x PCIe 3.0 x16 (X4 Mode)
– 6x SATA 6Gbps Ports, 3x M.2 M-Key Slots
– 8x USB 3.2 Gen 2 Type-A Ports, 2x Thunderbolt 4
– 1x HDMI Port, 2x RJ-45 Port
– 2 x SMA Antenna Connectors (2T2R)
– 20+2 Phases Digital VRM Solution
– 100A Smart Power Stage
– Tantalum Polymer Capacitors Array
– Thermal Reactive Armor
– All in One Monoblock & Nano-Carbon Baseplate
– Intel WiFi 6E 802.11ax 2T2R WiFi Adapter
– Bluetooth v5.2 with 2X Aorus Antenna
– Aquantia 10GbE BASE-T LAN, Intel 2.5GbE LAN
– Exclusively Bundled ESSential USB DAC
– 127dB SNR AMP-UP Audio with High-End ESS SABRE 9018K2M DAC
– LME 49720, OPA1622 and WIMA Audio Capacitors
– Exclusively Bundled AORUS PRO Gen4 AIC Adaptor
– 3 Year Warranty

Out of stock

SKU: MB-GZ590AXW+WT Categories: , , , Tags: , , , , , ,

Description



Model
Brand GIGABYTE
Model Z590 AORUS XTREME
Supported CPU
CPU Socket Type LGA 1200
CPU Type Supports 11th / 10th Gen Intel Core processors
Supports Intel Pentium / Celeron processors** Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.
Chipsets
Chipset Intel Z590
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 4×288pin
Memory Standard DDR4 5400(OC) / 5333(OC) / DDR4 5133(OC) / DDR4 5000(OC) / 4933(OC) / 4800(OC) / 4700(OC) / 4600(OC)/ 4500(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 (11th Generation Intel Core i9 / i7 / i5 processors)

DDR4 2933 / 2666 / 2400 / 2133 (10th Generation Intel Core i9 / i7 processors)

DDR4 2666 / 2400 / 2133 (10th Generation Intel Core i5 / i3 / Pentium / Celeron processors)
Maximum Memory Supported 128GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 4.0 x16 2 x PCI Express 4.0 x16*

* Actual support may vary by CPU.
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
PCI Express 3.0 x16 1 x PCI Express 3.0 x16*

* Running at x4.
Storage Devices
SATA 6Gb/s 6 x SATA 6Gb/s
M.2 CPU:
1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)*Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M_SB)

* Supported by 11th Generation processors only.
Intel Optane Ready Yes
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC1220-VB codec+ESS ES9018K2M DAC+TI OPA1622 operational amplifier
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Aquantia 10GbE LAN chip
Second LAN Chipset Intel 2.5GbE LAN chip
Max LAN Speed 10Gbps + 10/100/1000/2500Mbps
Wireless LAN Intel Wi-Fi 6E AX210
WIFI a,b,g,n,ac,ax
Bluetooth Bluetooth 5.2

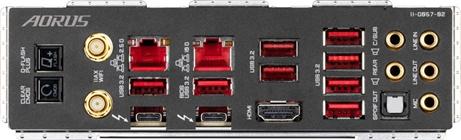

Rear Panel Ports
Back I/O Ports 1 x Q-Flash Plus button
1 x Clear CMOS button
2 x SMA antenna connectors (2T2R)
2 x Thunderbolt 4 connector (USB Type-C port, with USB 3.2 Gen 2 support)
8 x USB 3.2 Gen 2 Type-A ports (red)
1 x HDMI port
2 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks
Internal I/O Connectors
Onboard USB 1 x USB Type-C header, with USB 3.2 Gen 2×2 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
Other Connectors 1 x CPU fan header
1 x water cooling CPU fan header
6 x system fan headers
2 x system fan/water cooling pump headers
1 x noise detection header
2 x integrated extension cable headers for addressable and RGB LED strips
1 x front panel header
1 x front panel audio header
2 x temperature sensor headers
1 x power button
1 x reset button
1 x OC Ignition button
2 x BIOS switches
Voltage Measurement Points
Physical Spec
Form Factor Extended ATX
LED Lighting RGB
Dimensions (W x L) 12.0″ x 10.6″
Power Pin 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
Features
Features Multi-Graphics Technology:
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologiesI/O Controller:
iTE I/O Controller Chip

H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Noise detection

BIOS:
2 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

Bundled Software:
Norton Internet Security (OEM version)
cFosSpeed

Operating System:
Support for Windows 10 64-bit

Additional information

Weight 2 kg
CPU Socket Type

CPU Cooling Socket Support

Memory Form Factor

Memory Type

Motherboard Brand

Motherboard Category

Motherboard Chipset

Form Factor

Motherboard Socket Type
