Gigabyte Z690 AORUS ULTRA Intel Z690 Alder Lake Socket LGA1700 ATX DDR5 Motherboard

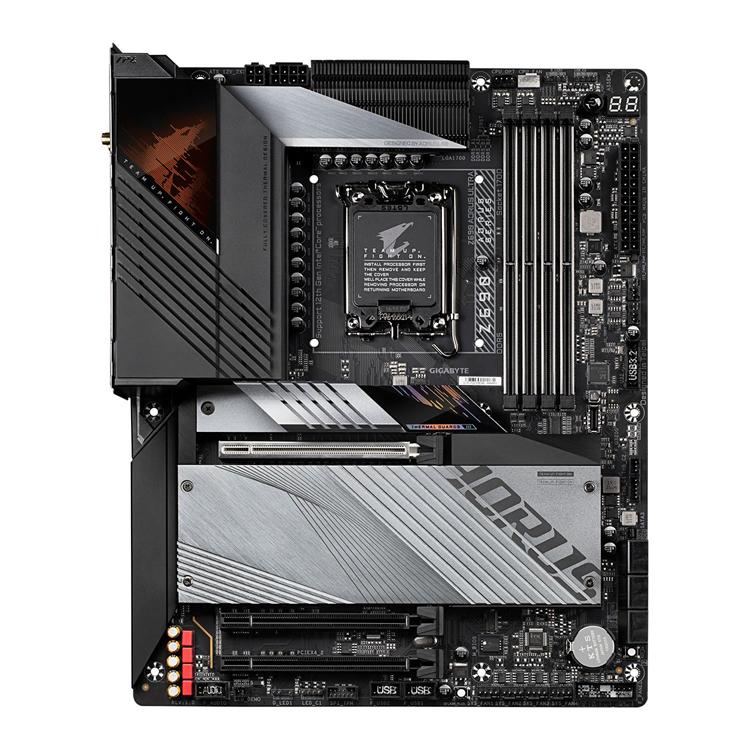

Gigabyte Z690 AORUS ULTRA Intel Z690 Alder Lake Socket LGA1700 ATX DDR5 Motherboard - Image 2

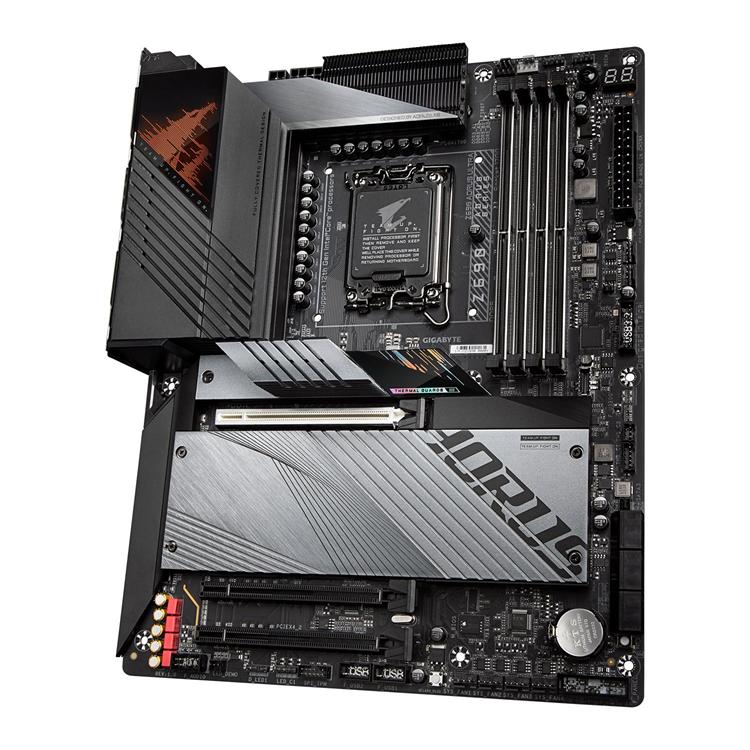

Gigabyte Z690 AORUS ULTRA Intel Z690 Alder Lake Socket LGA1700 ATX DDR5 Motherboard - Image 3
Gigabyte Z690 AORUS ULTRA Intel Z690 Alder Lake Socket LGA1700 ATX DDR5 Motherboard - Image 4

Gigabyte Z690 AORUS ULTRA Intel Z690 Alder Lake Socket LGA1700 ATX DDR5 Motherboard

R7848.00 Incl. Vat


(Displayed price above applies to EFT / Bank Transfer payments only.)

Out of stock

SKU MB-GZ690AU+W Categories , , , , Tags , , , , , , , ,

KEY FEATURES:
– ATX Form Factor
– Intel Z690 Chipset
– Intel LGA1700 Socket
– 4x DDR5 DIMM Slots, Up to 128GB
– Supports Up to DDR5-6200 MHz (OC)
– 1x PCIe 5.0, 2x PCIe 3.0 Slots, 6x SATA 6Gbps Ports
– 4x Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Slots
– 1x USB 3.2 Gen 2×2 Type-C, 4x USB 3.2 Gen 2 Type-A
– 4x USB 3.2 Gen 1 Type-A, 4x USB 2.0 Type-A
– Intel Wi-Fi 6 802.11ax Module, Bluetooth v5.2
– Intel I225-V 2.5Gbps LAN Port
– Realtek ALC4080 7.1 HD Audio Codec
– 16+1+2 Direct Digital VRM Design
– High Coverage MOSFET Heatsinks
– 9W/mK Thermal Conductivity Pad
– 2X Copper PCB Design
– DTS:X Ultra Support
– Q-Flash Plus BIOS Update
– 3 Year Warranty

Description

Gigabyte Z690 AORUS ULTRA Intel Z690 Alder Lake Socket LGA1700 ATX DDR5 Motherboard

Features

Intel® Z690 AORUS Motherboard with 16+1+2 Digital VRM Design, DDR5 XTREME MEMORY Design, PCIe 5.0 Design, Fully Covered Thermal Design , 4*PCIe 4.0 M.2 with Enlarged Thermal Guards, 2.5GbE LAN, WIFI 6 802.11ax, 120dB Hi-Res Audio with WIMA, Rear USB 3.2 Gen 2×2 TYPE-C® , RGB FUSION 2.0, Q-Flash Plus

        • Supports 12th Gen Intel®  Core™ Series Processors



        • Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs



        • 16+1+2 Phases Direct VRM Design with 105A Power Stage* and Tantalum Polymer Capacitor



        • DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing



        • Advanced Thermal Solution with Fully Covered Thermal Design and Fins-Array II



        • WIFI6 802.11ax 2T2R & BT5 with AORUS Antenna



        • Hi-Fi Audio with ALC4080 and WIMA Audio Capacitors



        • Fast 2.5GbE LAN with Bandwidth Management



        • Four Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards



        • SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speeds



        • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips



        • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP



        • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Power Stage maximum current capacity is based on VCORE Phase.

Additional Information:

Visit the Manufacturer Product Web Page for Full Details

Specifications

Make and Model Gigabyte Z690 AORUS ULTRA Motherboard
Part Number Z690 AORUS ULTRA
Color Black
CPU 1. LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
(Go to GIGABYTE’s website for the latest CPU support list.)
2. L3 cache varies with CPU
(Please refer to “CPU Support List” for more information.)
Chipset Intel® Z690 Express Chipset
Memory 1. DDR5 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules MHz memory modules
2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)
(Graphics specifications may vary depending on CPU support.)
Audio 1. Realtek® ALC4080 CODEC
2.Support for DTS:X® Ultra
3.High Definition Audio
4.2-channel analog output
5. Support for S/PDIF Out 7.1-channel digital signals
* Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.
LAN Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Intel® Wi-Fi 6 AX200:
1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5.2
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
Expansion Slots 1. 1 x PCI Express x16 slot, running at x16
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.)
2.2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.)
Storage Interface CPU:
1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SB)
2. 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
2. 6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10

Intel® Optane™ Memory Ready
* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
USB Chipset:
1.2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header)
2. 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+2 USB 3.2 Gen 1 Hubs:
1.6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
1 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors 1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 4 x system fan headers
7. 2 x system fan/water cooling pump headers
8. 2 x addressable LED strip headers
9. 2 x RGB LED strip headers
10. 4 x M.2 Socket 3 connectors
11. 6 x SATA 6Gb/s connectors
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
15. 1 x USB 3.2 Gen 1 header
16. 2 x USB 2.0/1.1 headers
17. 1 x noise detection header
18. 2 x Thunderbolt™ add-in card connectors
19. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
20. 1 x power button
21. 1 x Q-Flash Plus button
22. 1 x reset button
23. 1 x reset jumper
24. 1 x Clear CMOS jumper
25. 2 x temperature sensor headers

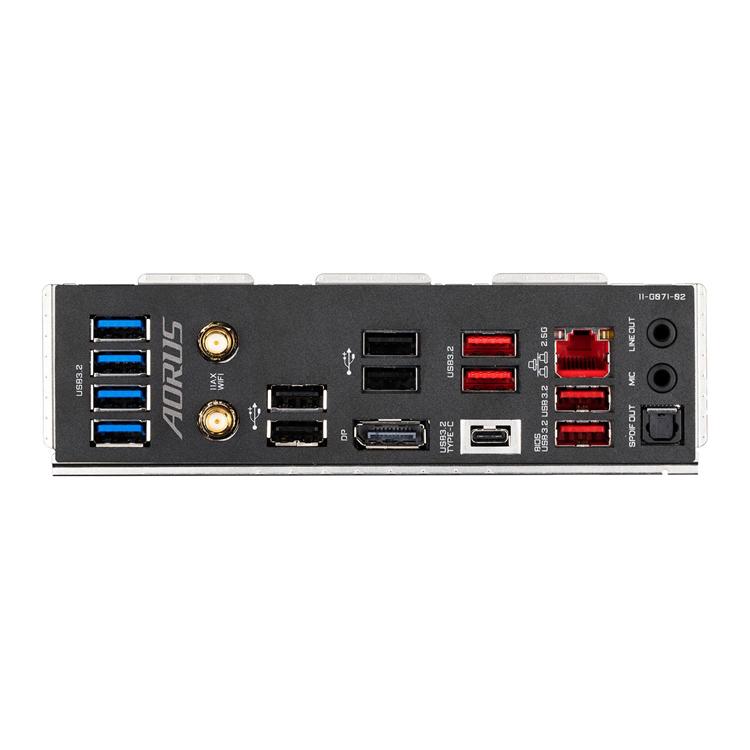

Back Panel Connectors 1. 2 x SMA antenna connectors (2T2R)
2. 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
3. 4 x USB 3.2 Gen 2 Type-A ports (red)
4. 4 x USB 3.2 Gen 1 ports
5. 4 x USB 2.0/1.1 ports
6. 1 x DisplayPort
7. 1 x RJ-45 port
8. 1 x optical S/PDIF Out connector
9. 2 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring 1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Fan fail warning
6. Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
7.Noise detection
BIOS 1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features 1. Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install
Bundled Software Norton® Internet Security (OEM version)
cFosSpeed
Operating System Support for Windows 10 64-bit
Support for Windows 11 64-bit
Form Factor ATX Form Factor
Dimensions 30.5cm x 24.4cm
Weight N/A

Additional information

Weight 2 kg
CPU Socket Type

CPU Cooling Socket Support

Memory Form Factor

Memory Type

Motherboard Brand

Motherboard Category

Motherboard Chipset

Form Factor

Motherboard Socket Type
