R5348.00 Incl. Vat
(Displayed price above applies to EFT / Bank Transfer payments only.)
Out of stock
KEY FEATURES:
– ATX Form Factor
– Intel Z690 Chipset
– Intel LGA1700 Socket
– 4x DDR5 DIMM Slots, Up to 128GB
– Supports Up to DDR5-6000MHz (OC)
– Ultra Durable Memory Armor
– 1x PCI-E 5.0 x16, 2x PCI-E 3.0 x16 Slots
– 6x SATA 6Gbps, 4x M.2 Gen4, 1x M.2 Gen3
– 1x USB 3.2 Gen 2×2 Type-C, 2x USB 3.2 Gen 2 Type-A
– 3x USB 3.2 Gen 1 Ports, 4x USB 2.0/1.1 Ports
– 1x HDMI, 1x DisplayPort Port
– Realtek 2.5GbE LAN chip
– Realtek ALC1220-VB HD Audio Codec
– Direct 16+1+2 Digital VRM Design
– 60A Power Stage
– Tantalum Polymer Capacitors
– Fully Covered MOSFET Heatsinks
– Integrated IO Shield
– Gigabyte RGB FUSION 2.0
– Ultra Durable SMD PCIe 5.0 Armor
– Q-Flash Plus Onboard Button
– 3 Year Warranty
Intel® Z690 Chipset
LGA 1700 CPU Socket
12th Gen Intel® Compatible Processors
ATX Form Factor
2. M.2 Thermal Guard
3. Fully Covered Thermal Design
4. Enlarged Thermal Guard
5. 2X Copper PCB
2X FASTER THAN EVER
Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2X faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
REALTEK HIGH-END HD AUDIO CODEC
Supports audio format up to 32-bit/384KHz and output SNR up to Rear/Front 120dB 110dB.
Automatically detects impedance of audio device, preventing low volume and distortion.
Stream voice with up to 110dB(A) SNR via microphone.
IMPRESSIVE PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | GAMING X DDR4 |
| Model | GA-Z690-GAMING-X |
| CPU | LGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors |
| L3 cache varies with CPU | |
| Chipset | Intel Z690 Express Chipset |
| Memory | Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules |
| 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: |
| – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz | |
| * Support for HDMI 2.0 version and HDCP 2.3. | |
| – 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz | |
| * Support for DisplayPort 1.2 version and HDCP 2.3 | |
| Audio | Realtek ALC1220-VB CODEC |
| * The back panel line out jack supports DSD audio. | |
| High Definition Audio | |
| 2-channel analog output | |
| Support for S/PDIF Out | |
| 7.1-channel digital signals | |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | – 1 x PCI Express x16 slot, running at x16 (PCIEX16) |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| (The PCIEX16 slot conforms to PCI Express 5.0 standard.) | |
| – 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) | |
| (The PCIEX4 slots conform to PCI Express 3.0 standard.) | |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
| Storage Interface | CPU: |
| – 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) | |
| Chipset: | |
| – 2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) | |
| – 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) | |
| – 6 x SATA 6Gb/s connectors | |
| Support for RAID 0, RAID 1, RAID 5, and RAID 10 | |
| * Refer to “2-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors. | |
| Intel Optane Memory Ready | |
| * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset. | |
| USB | Chipset: |
| 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2×2 support | |
| 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header | |
| 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) | |
| Chipset 2 USB 2.0 Hubs: | |
| 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x 4-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 1 x water cooling CPU fan header | |
| 3 x system fan headers | |
| 1 x system fan/water cooling pump header | |
| 2 x addressable LED strip headers | |
| 2 x RGB LED strip headers | |
| 4 x M.2 Socket 3 connectors | |
| 6 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB Type-C header, with USB 3.2 Gen 2 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 2 x Thunderbolt add-in card connectors | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1 x reset button | |
| 1 x reset jumper | |
| 1 x Q-Flash Plus button | |
| 1 x Clear CMOS jumper | |

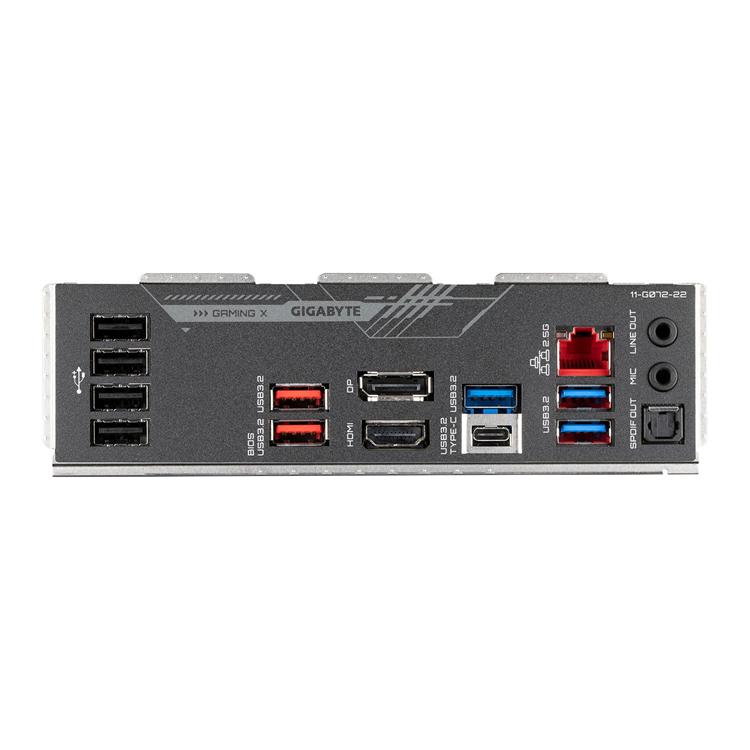

| Back Panel Connectors | 1 x USB Type-C port, with USB 3.2 Gen 2×2 support |
| 2 x USB 3.2 Gen 2 Type-A ports (red) | |
| 3 x USB 3.2 Gen 1 ports | |
| 4 x USB 2.0/1.1 ports | |
| 1 x HDMI port | |
| 1 x DisplayPort | |
| 1 x RJ-45 port | |
| 1 x optical S/PDIF Out connector | |
| 2 x audio jacks | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor |
| 30.5cm x 24.4cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Weight | 2 kg |
|---|---|
| CPU Socket Type | |
| CPU Cooling Socket Support | |
| Memory Form Factor | |
| Memory Type | |
| Motherboard Brand | |
| Motherboard Category | |
| Motherboard Chipset | |
| Form Factor | |
| Motherboard Socket Type |
