Original price was: R4587.00.R4433.00Current price is: R4433.00. Incl. Vat
(Displayed price above applies to EFT / Bank Transfer payments only.)
Out of stock
KEY FEATURES:
– ATX Form Factor
– Intel Z790 Chipset
– Socket LGA 1700
– Supports Intel 12th, 13th, 14th Gen Processors
– 4x DDR4 DIMM Slots, Supports Up to 128GB
– Supports up to DDR4-5333 (OC)
– 1x PCIe 4.0 x16 Slot (x16 Physical)
– 2x PCIe 3.0 x1 Slots (x16 Physical)
– 3x M.2 22110/2280 PCIe 4.0 x4 NVMe SSD Slots
– 4x SATA 3.0 Ports
– Supports Front-Panel USB 10Gbps Type-C Ports
– 1x USB 10Gbps Type-A Port
– 2x USB 5Gbps Type-A Ports
– 5x USB 2.0 Type-A Ports
– 1x DisplayPort 1.2 Port
– 1x HDMI 2.1 Port (TMDS)
– 2x SMA Wireless Connectors
– 6x 3.5mm Audio Jacks (Supports Surround Sound)
– Realtek 2.5 Gigabit Ethernet RJ-45 LAN
– WiFi 5 Dual-Band Adapter, Bluetooth 5.1
– Realtek High-Definition Audio Codec
– Hybrid 8+1+1 Phase Digital VRM Solution
– Supports Windows 11 64-bit
– 3 Year Warranty

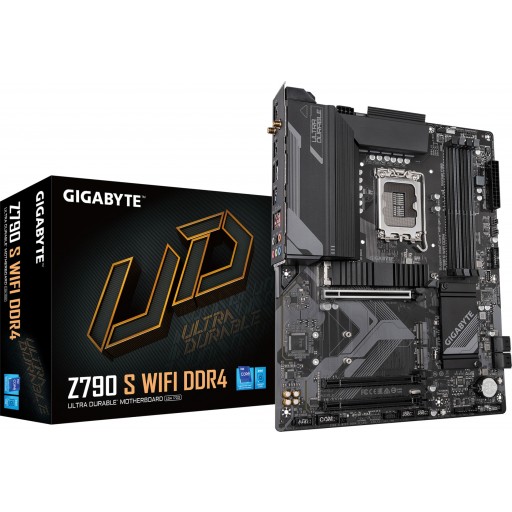

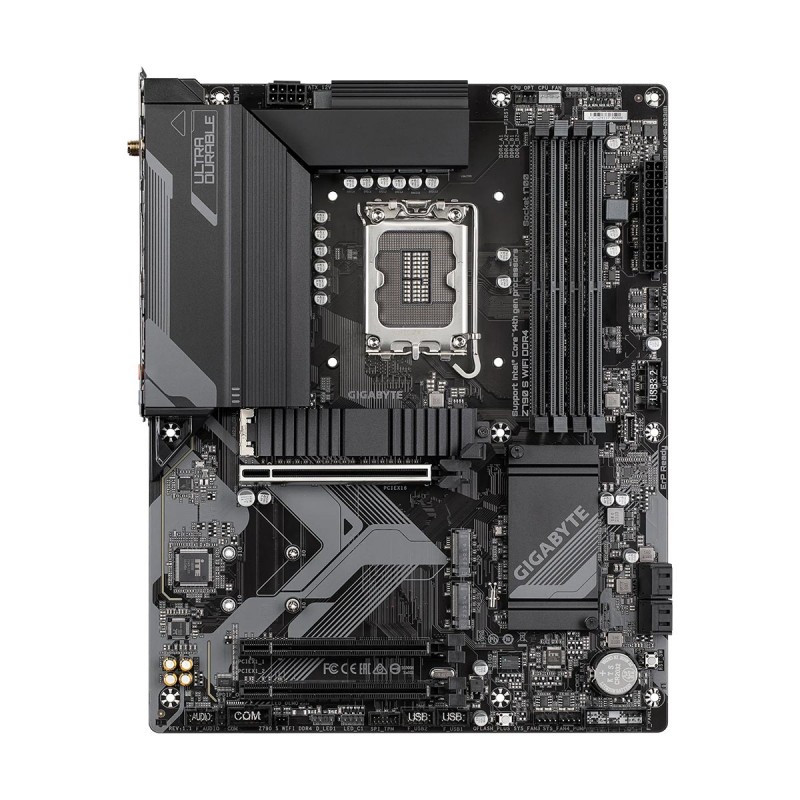

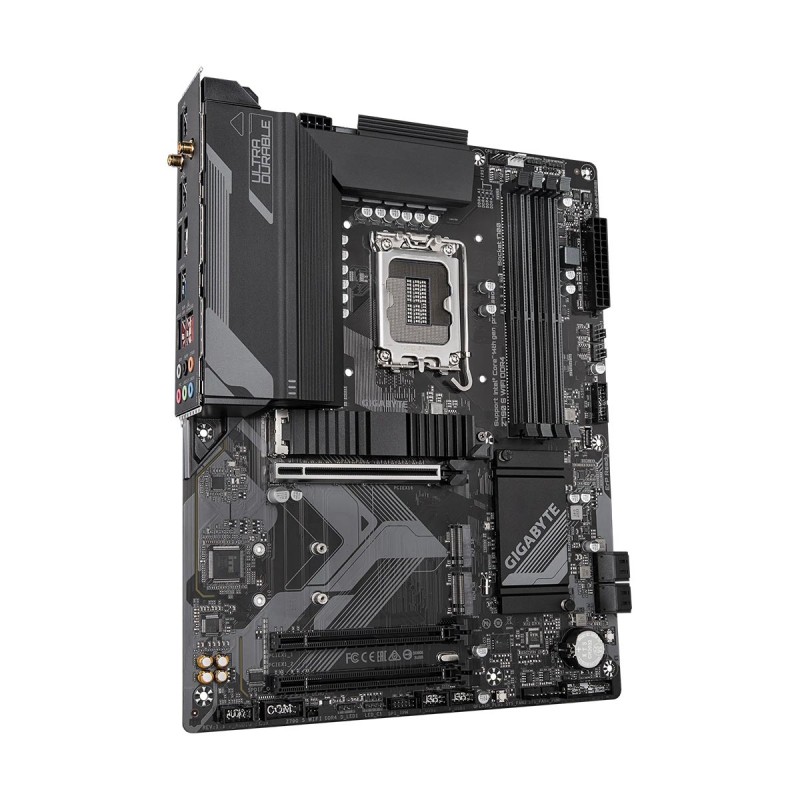

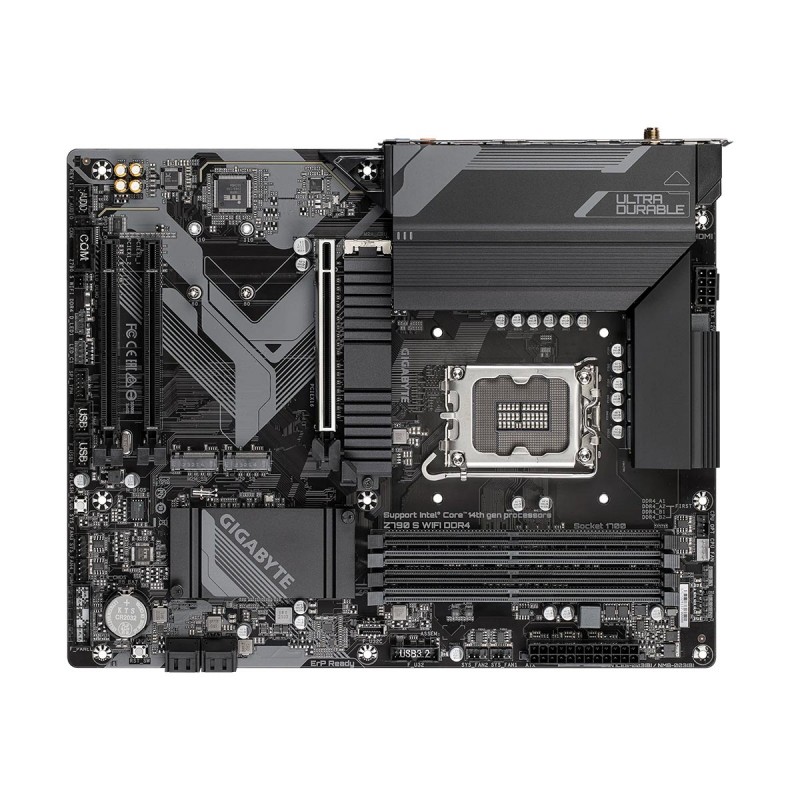

The Gigabyte Z790 S WIFI DDR4 is a smart choice for mid-range builds, delivering Z790 power with DDR4 affordability. Designed for LGA 1700 CPUs—12th, 13th, and 14th Gen—it offers high-speed DDR4 support, comprehensive storage options, and built-in Wi-Fi 802.11ac. A perfect blend of performance, functionality, and value.
Reliable Power Architecture
Equipped with a robust Hybrid 8+1+1 digital VRM and DDR4-optimized 4 DIMM support for stable power and memory performance.
Triple PCIe 4.0 M.2 Support
Three PCIe 4.0 x4 M.2 slots with Thermal Guard ensure high-speed SSD performance and thermal protection.
Next-Level Expansion
Features a PCIe 4.0 x16 EZ‑Latch slot for easy GPU installation.
Complete Connectivity
Offers 2.5 GbE LAN, Wi-Fi 802.11ac, front USB‑C (10 Gb/s), DisplayPort, and HDMI for wide compatibility.
Smart Cooling and BIOS
Smart Fan 6 delivers efficient temperature control with customizable fan curves; includes Q‑Flash Plus for BIOS updates without CPU or GPU.
SPECIFICATIONS |
|
| Brand | Gigabyte |
| Series | Z790 Motherboard Series |
| Model | Z790 S WIFI DDR4 V1.0/1.1/1.2 |
| CPU Support | Supports Intel 12th, 13th, 14th Gen Core, Pentium Gold and Celeron Processors |
| Chipset | Intel Z790 Express |
| Memory Support | |
| Intel 12th, 13th, 14th Gen Processors | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200/3000/2933/2666/2400/2133 MT/s memory modules |
| 4x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Video | |
| HDMI | 1x HDMI 2.1 TMDS port, supporting a maximum resolution of UHD 4K 3840×2160 @ 60Hz, Support for HDCP 2.3 |
| DisplayPort | 1x DisplayPort 1.2 port, supporting a maximum resolution of 4096×2304 @ 60Hz, Support for HDCP 2.3 |
| Integrated Intel graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 4.0 x16 Slot (x16 Physical) |
| Intel Z790 Chipset | 2x PCIe 3.0 x1 Slots (x16 Physical) |
| Storage | |
| CPU Direct | 1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
| Intel Z790 Chipset | 1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB) |
| 1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)(M2M_SB) | |
| 4x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Networking | |
| LAN | Realtek 2.5 Gigabit LAN 10/100/1000/2500Mbps |
| WiFi | WiFi 5 Dual-Band Adapter |
| Bluetooth | Bluetooth 5.1 |
| Audio | |
| Codec | Realtek High Definition Audio CODEC |
| Supports 7.1 Surround, Jack-detection, Multi-streaming, Jack-retasking | |
| Connectivity | |

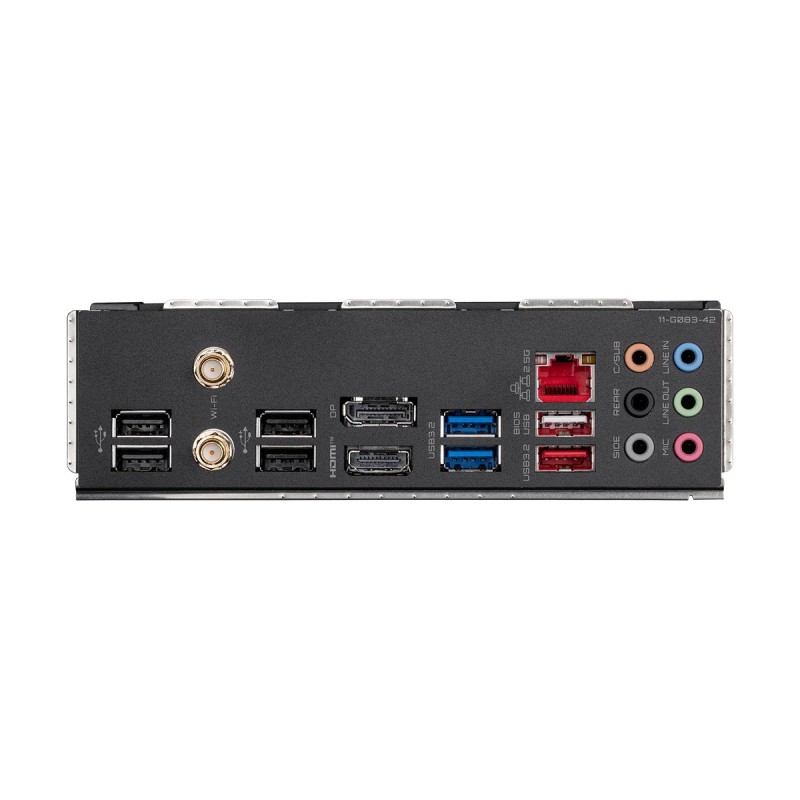

| Ports | 1x USB 10Gbps Type-A Port |
| 2x USB 5Gbps Type-A Ports | |
| 5x USB 2.0 Type-A Ports | |
| 1x DisplayPort 1.2 Port | |
| 1x HDMI 2.1 Port (TMDS) | |
| 6x 3.5mm Audio Jacks (Supports Surround Sound) | |
| 1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN | |
| 2x SMA Wireless Connectors | |
| General | |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x CPU fan header | |
| 1x CPU fan/water cooling pump header | |
| 3x system fan headers | |
| 1x system fan/water cooling pump header | |
| 2x addressable LED strip headers | |
| 2x RGB LED strip headers | |
| 3x M.2 Socket 3 connectors | |
| 4x SATA 6Gb/s connectors | |
| 1x front panel header | |
| 1x front panel audio header | |
| 1x S/PDIF Out header | |
| 1x USB Type-C header, with USB 3.2 Gen 2 support | |
| 1x USB 3.2 Gen 1 header | |
| 2x USB 2.0/1.1 headers | |
| 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1x serial port header | |
| 1x Q-Flash Plus button | |
| 1x reset button | |
| 1x reset jumper | |
| 1x Clear CMOS jumper | |
| I/O Controller | iTE I/O Controller Chip |
| Buttons | 1x Q-Flash Plus button |
| LED Displays | N/A |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor, 305 x 244mm (H x W) |
| Operating System Support | Windows 11 64-bit (recommended) |
| Windows 10 64-bit | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Weight | 2 kg |
|---|---|
| Motherboard Brand | |
| Motherboard Category | |
| Motherboard Chipset | |
| Motherboard Form Factor | |
| Motherboard Ram Support | |
| Motherboard Socket Type |
