Original price was: R6240.00.R6078.00Current price is: R6078.00. Incl. Vat
(Displayed price above applies to EFT / Bank Transfer payments only.)
KEY FEATURES:
– ATX Form Factor
– Intel Z890 Chipset
– Intel Socket LGA1851
– 4x DIMM Slots, Max. 256GB, DDR5
– Supports up to DDR5-9200MHz(OC)
– 1x PCIe 5.0 x16 Slot (supports up to x16)
– 2x PCIe 4.0 x16 Slots (supports up to x4)
– Total Supports 4x M.2 Slots and 4x SATA 6Gb/s Ports
– 1x Intel Thunderbolt 4 USB Type-C Connectors
– 2x USB 3.2 Gen 2 Type-A ports, 3x USB 3.2 Gen 1 ports
– 4x USB 2.0/1.1 Ports, 2x Audio Jacks
– 2x antenna connectors (2T2R), 1x DisplayPort (Note)
– 1x RJ-45 port, 1x optical S/PDIF Out connector
– Realtek 2.5GbE LAN Chip
– MediaTek MT7925 Tri-Band 160MHz 802.11be Wi-Fi 7
– Bluetooth 5.4
– Realtek ALC1220 Audio Codec
– WIMA Audiophile Grade Capacitors
– 16+1+2 Twin Digital VRM Design
– 80A Smart Power Stage
– VRM Thermal Armor Advanced
– Gigabyte RGB FUSION
– 1x RGB LED Header, 3x ARGB LED Headers
– AORUS AI Auto-Overclocking Software
– AI Perfdrive: Optimal & Customized BIOS Preset Profiles
– 3 Year Warranty

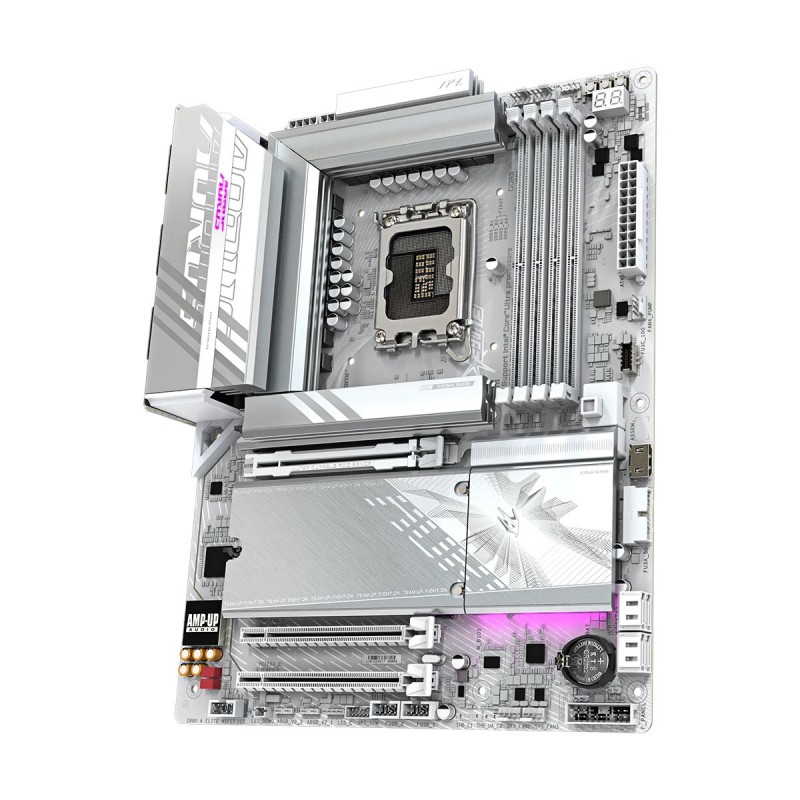

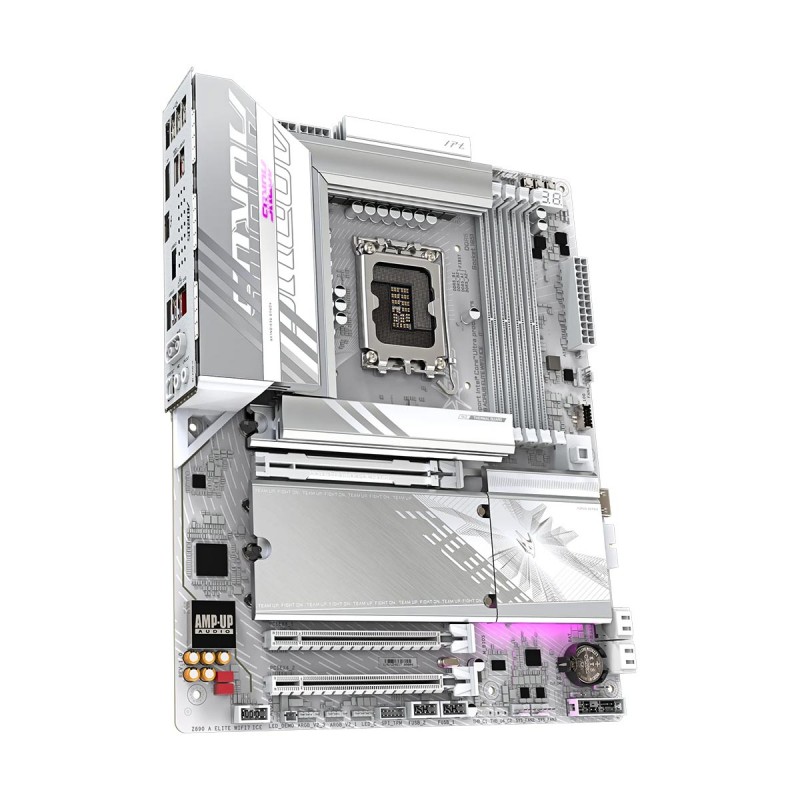

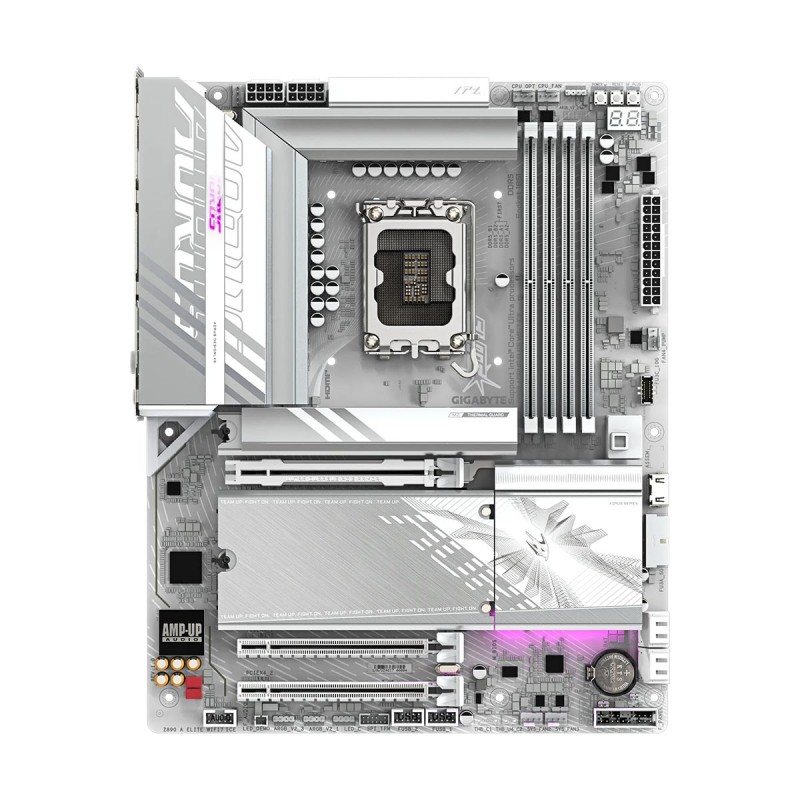

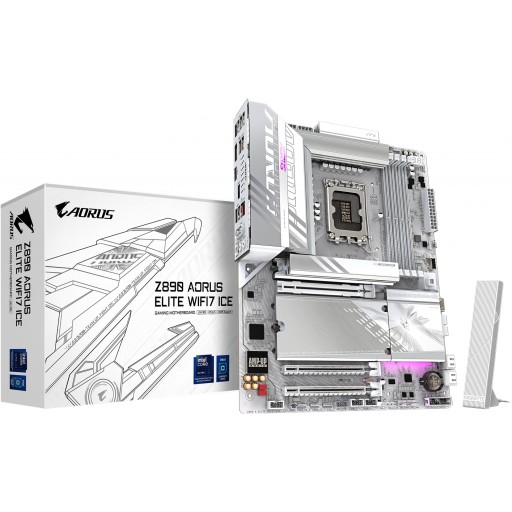

Designed for Intel® Core Ultra (Series 2) processors, the Gigabyte Z890 AORUS ELITE WiFi7 ICE blends cutting-edge technologies with usability. With DDR5 support, PCIe 5.0, Wi‑Fi 7, and Thunderbolt™ 4, this board delivers future-ready performance wrapped in Gigabyte’s renowned Ultra Durable™ design. Ideal for high-performance gaming, creative workflows, and smooth multi-tasking setups.
Extreme Power Delivery
Utilizes a 16+1+2 twin digital VRM with 80A Smart Power Stages and dual copper layers—ensuring stable overclocks and high-core CPU support.
Intelligent Memory Optimization
Features D5 Bionic Corsa with four DDR5 slots and XMP/D5 profile support for blazing-fast memory performance.
Cutting-Edge Storage & Expansion
Includes one PCIe 5.0 x16 slot, plus four M.2 slots (1× PCIe 5.0, 3× PCIe 4.0), all equipped with EZ‑Latch mechanisms and Thermal Guards for easy, safe upgrades.
Blazing Connectivity

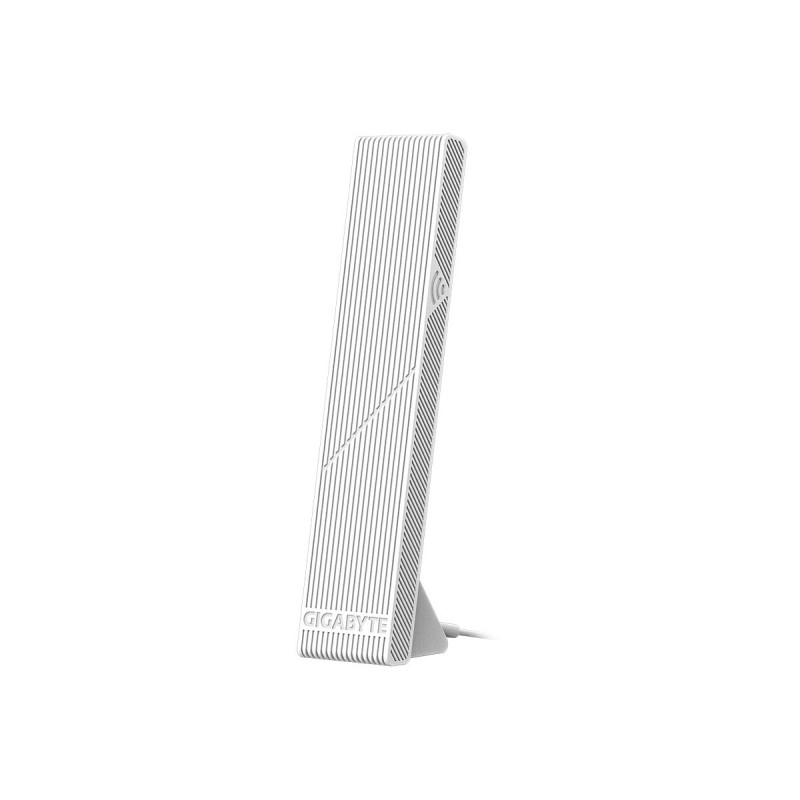

Equipped with Wi‑Fi 7 with a high-gain antenna, 2.5 GbE LAN, Thunderbolt 4 Type‑C, Sensor Panel Link, and speedy USB ports (e.g. front USB‑C).
Built for Creators
Offers audio clarity via ALC1220/ESS DAC plus WIMA capacitors—perfect for immersive content creation.
User‑Friendly Build Enhancements
Easy install features include PCIe EZ‑Latch, M.2 EZ‑Latch Click, Wi‑Fi EZ‑Plug, and intuitive BIOS/software with AI-powered tuning and theme options.
SPECIFICATIONS |
|
| Brand | Gigabyte |
| Series | Z890 AORUS |
| Model | Z890 AORUS ELITE WIFI7 ICE |
| CPU | LGA1851 socket: Support for Intel Core Ultra Processors |
| L3 cache varies with CPU | |
| * Please refer to “CPU Support List” for more information. | |
| Chipset | Intel Z890 Express Chipset |
| Memory | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. |
| 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Support CUDIMM memory module | |
| (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.) | |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: |
| – 1 x Intel Thunderbolt 4 connector (USB4 USB Type-C port), supporting DisplayPort and Thunderbolt video outputs | |
| When a Thunderbolt monitor is installed, the maximum resolution supported is 5120×2880@60 Hz with 24 bpp (single display output). | |
| When a USB4 USB Type-C monitor is installed, the maximum resolution supported is 3840×2160@240 Hz (single display output). | |
| * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, “Back Panel Connectors,” for more information.) | |
| * Support for DisplayPort 2.1 version and HDCP 2.3 | |
| – 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz | |
| * Support for HDMI 1.4 version | |
| – 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz | |
| * Support for DisplayPort 2.1 version and HDCP 2.3 | |
| (Graphics specifications may vary depending on CPU support.) | |
| Support for up to triple-display at the same time | |
| Audio | Realtek ALC1220 CODEC |
| * The back panel line out jack supports DSD audio. | |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| Support for S/PDIF Out | |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication Module | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) |
| – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands | |
| – BLUETOOTH 5.4 | |
| – Support for 11be 160MHz wireless standard | |
| Expansion Slots | CPU: |
| – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) | |
| * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| Chipset: | |
| – 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) | |
| Storage Interface | CPU: |
| – 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) | |
| – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) | |
| Chipset: | |
| – 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) | |
| – 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) | |
| – 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| USB | CPU: |
| – 1 x Intel Thunderbolt 4 (USB Type-C) ports on the back panel | |
| *Support up to 40Gbps with Thunderbolt devices | |
| *Support up to 20Gbps with USB4 devices | |
| *Support up to 10Gbps with USB 3.2 devices | |
| Chipset: | |
| – 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header | |
| – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| – 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) | |
| Chipset+2 USB 2.0 Hubs: | |
| – 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 2 x 8-pin ATX 12V power connectors | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 3 x system fan headers | |
| 1 x system fan/water cooling pump header | |
| 3 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 4 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB Type-C header, with USB 3.2 Gen 2 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1 x HDMI port (Note) | |
| 1 x power button | |
| 1 x reset button | |
| 1 x Q-Flash Plus button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |

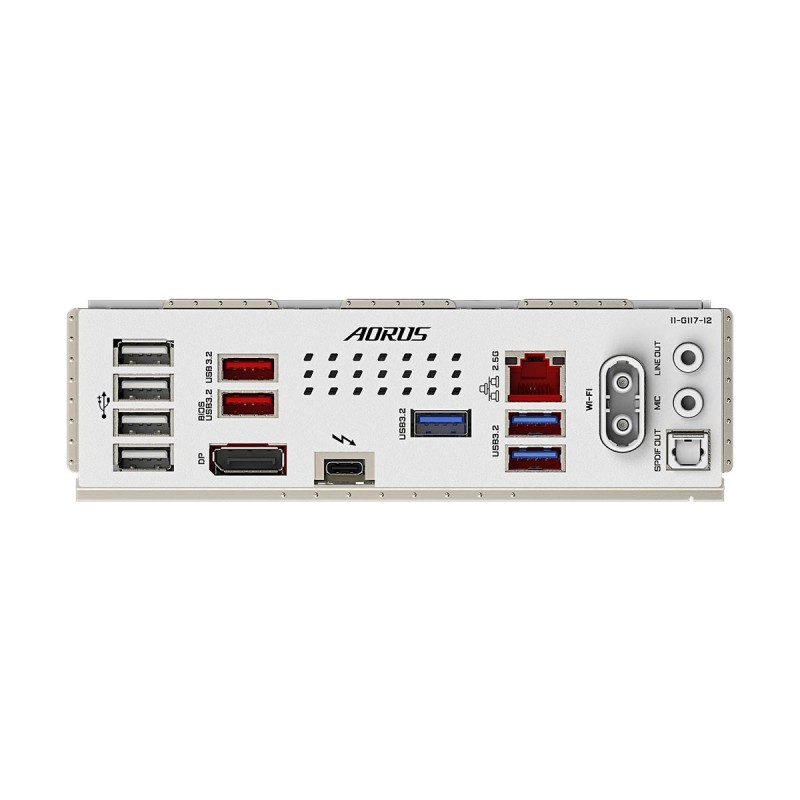

| Back Panel Connectors | 1 x Intel Thunderbolt 4 connectors (USB Type-C ports) |
| 2 x USB 3.2 Gen 2 Type-A ports (red) | |
| 3 x USB 3.2 Gen 1 ports | |
| 4 x USB 2.0/1.1 ports | |
| 2 x antenna connectors (2T2R) | |
| 1 x DisplayPort (Note) | |
| 1 x RJ-45 port | |
| 1 x optical S/PDIF Out connector | |
| 2 x audio jacks | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor |
| 30.5cm x 24.4cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Motherboard Brand | |
|---|---|
| Motherboard Category | |
| Motherboard Chipset | |
| Motherboard Form Factor | |
| Motherboard Ram Support | |
| Motherboard Socket Type |
