Gigabyte Z890I AORUS ULTRA Intel LGA1851 Mini-ITX Motherboard
Original price was: R8149.00.R7624.00Current price is: R7624.00. Incl. Vat
Or as low as KEY FEATURES:
– Mini-ITX Form Factor
– Intel Z890 Chipset
– Intel Socket LGA1851
– 4x DIMM Slots, Max. 128GB, DDR5
– Supports up to DDR5-9200MHz(OC)
– 1x PCIe 5.0 x16 Slot (supports up to x16)
– Total Supports 2x M.2 Slots and 2x SATA 6Gb/s Ports
– 1x Intel Thunderbolt 4 USB 4 Type-C
– 3x USB 3.2 Gen 2 Type-A ports (red), 2x USB 3.2 Gen 1 ports
– 1x DisplayPort (Note), 1x HDMI port (Note)
– 1x Q-Flash Plus Button, 1x RJ-45 port
– 2x Antenna Connectors (2T2R), 2x Audio Jacks, 1x Optical S/PDIF Out Connector
– Realtek 2.5GbE LAN chip
– Intel BE202 Tri-Band 160MHz 802.11be Wi-Fi 7
– Bluetooth 5.4
– Realtek Audio Codec
– Digital 8+1+2 phases VRM Solution
– 105A Smart Power Stage
– VRM Thermal Armor Advanced
– 2x ARGB LED Headers
– AORUS AI Auto-Overclocking Software
– AI Perfdrive: Optimal & Customized BIOS Preset Profiles
– VRM Thermal Armor Advanced
– 3 Year Warranty
Description

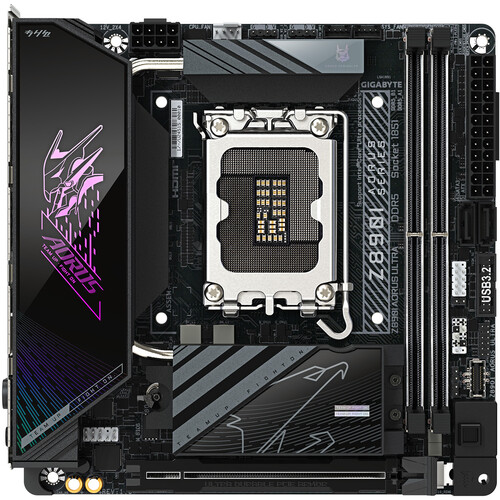

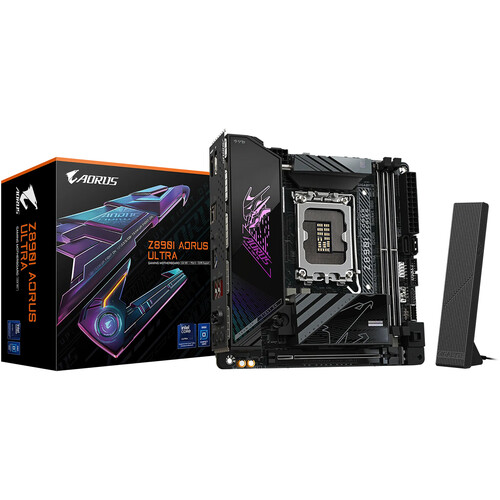

Gigabyte Z890I AORUS ULTRA Intel LGA1851 Mini-ITX Motherboard
GA-Z890I-AORUS-ULTRA
Small Form, Big Performance
The Gigabyte Z890I AORUS ULTRA delivers elite-tier performance in a compact Mini‑ITX form factor. Powered by the Intel® Z890 chipset and compatible with Intel® Core Ultra processors (Series 2), it’s packed with high-end features—top-tier VRM, DDR5 overclocking tech, M.2 PCIe 5.0 storage, Wi‑Fi 7, and Thunderbolt 4—making it an ideal platform for ultra-compact gaming, creative builds, or powerful home workstations.
Why It’s a Smart Choice
-
Efficient Power & Intelligent Memory
Equipped with a robust 8+1+2 digital VRM, 105A Smart Power Stages, and Gigabyte’s D5 Bionic Corsa memory tech, it delivers optimized DDR5 performance with minimal effort. -
Blistering Storage & Expansion
Provides dual M.2 slots including a blazing PCIe 5.0 x4 connector, plus a reinforced PCIe 5.0 x16 slot with UD Slot X for extra durability. -
Advanced Connectivity Made Compact
Features Wi‑Fi 7 with an ultra‑high gain antenna, 2.5 GbE LAN, Thunderbolt 4 via USB‑C with DP‑Alt, and HDMI/DisplayPort video outputs—all in the smallest ITX footprint. -
Ease of Build & Control
Includes time-saving DIY tools like WIFI EZ‑Plug, EZ‑Latch Plus and Click (for PCIe/M.2 mounting), intuitive UI with multi-theme BIOS, Q‑Flash Auto Scan, and a real-time Power Monitor via HWinfo. -
Thermal & Reliability Features
Comes loaded with VRM Thermal Armor Advanced, I/O AORUS Lighting, and M.2 Thermal Guard to keep critical components cool and performing under heavy use.
SPECIFICATIONS |
|
| Brand | Gigabyte |
| Series | AORUS ULTRA |
| Model | Z890I AORUS ULTRA |
| CPU | LGA1851 socket: Support for Intel Core Ultra Processors |
| L3 cache varies with CPU | |
| * Please refer to “CPU Support List” for more information. | |
| Chipset | Intel Z890 Express Chipset |
| Memory | Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. |
| 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate innon-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Support CUDIMM memory module | |
| (The CPU and memory configuration may affect the supported memory types, datarate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.) | |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: |
| – 1 x Intel Thunderbolt 4 connector (USB4 USB Type-C port), supporting DisplayPort and Thunderbolt video outputs | |
| When a Thunderbolt monitor is installed, the maximum resolution supported is 5120×2880@60 Hz with 24 bpp (single display output). | |
| When a USB4 USB Type-C monitor is installed, the maximum resolution supported is 3840×2160@240 Hz (single display output). | |
| * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6,”Back Panel Connectors,” for more information.) | |
| * Support for DisplayPort 2.1 version and HDCP 2.3 | |
| – 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz | |
| * Support for DisplayPort 2.1 version and HDCP 2.3 | |
| – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz | |
| * Support for HDMI 2.1 version and HDCP 2.3. | |
| (Graphics specifications may vary depending on CPU support.) | |
| Support for up to triple-display at the same time | |
| Audio | Realtek Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| Support for S/PDIF Out | |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Intel Wi-Fi 7 BE202 (BE200NGW M) |
| – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands | |
| – BLUETOOTH 5.4 | |
| – Support for 11be 160MHz wireless standard | |
| (Actual data rate may vary depending on environment and equipment.) | |
| * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) | |
| ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations. | |
| Expansion Slots | CPU: |
| – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 | |
| * The PCIEX16 slot can only support a graphics card or an NVMe SSD. | |
| Storage Interface | CPU: |
| – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) | |
| Chipset: | |
| – 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) | |
| – 2 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices | |
| RAID 0 and RAID 1 support for SATA storage devices | |
| USB | CPU: |
| – 1 x Intel Thunderbolt 4 (USB Type-C) ports on the back panel | |
| *Support up to 40Gbps with Thunderbolt devices | |
| *Support up to 20Gbps with USB4 devices | |
| *Support up to 10Gbps with USB 3.2 devices | |
| Chipset: | |
| – 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header | |
| – 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| – 2 x USB 2.0/1.1 ports available through the internal USB headers | |
| Chipset+USB 3.2 Gen 1 Hub: | |
| – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 1 x system fan header | |
| 2 x addressable RGB Gen2 LED strip headers | |
| 2 x M.2 Socket 3 connectors | |
| 2 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x speaker header | |
| 1 x USB Type-C header, with USB 3.2 Gen 2 support | |
| 1 x USB 3.2 Gen 1 header | |
| 1 x USB 2.0/1.1 header | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |

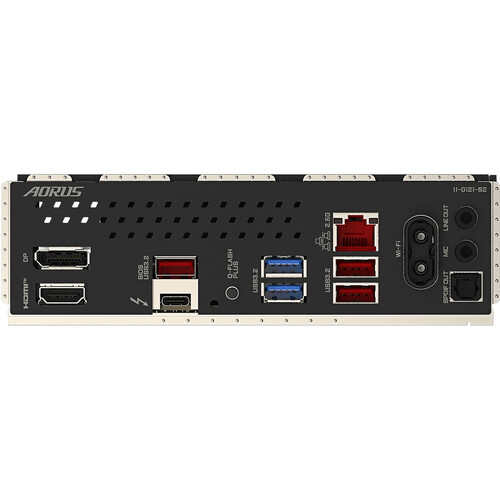

| Back Panel Connectors | 1 x DisplayPort (Note) |
| 1 x HDMI port (Note) | |
| 1 x Intel Thunderbolt 4 connectors (USB Type-C ports) | |
| 3 x USB 3.2 Gen 2 Type-A ports (red) | |
| 2 x USB 3.2 Gen 1 ports | |
| 1 x Q-Flash Plus button | |
| 1 x RJ-45 port | |
| 2 x antenna connectors (2T2R) | |
| 2 x audio jacks | |
| 1 x optical S/PDIF Out connector | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Mini-ITX Form Factor |
| 17.0cm x 17.0cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
