KEY FEATURES:
– Single 120mm PWM Case Fan
– Premium 30mm Thick Fan Design
– High Airflow up to 72.44 CFM
– 3.01 mmH₂O Static Pressure
– Premium Fluid Dynamic Bearing (FDB)
– PWM Speed Control (0–2100 RPM)
– Loopin Daisy-Chain Cable System
– Anti-Vibration Rubber Pads
– Premium PBT + 30% Glass Fibre Construction
– 2 Year Warranty

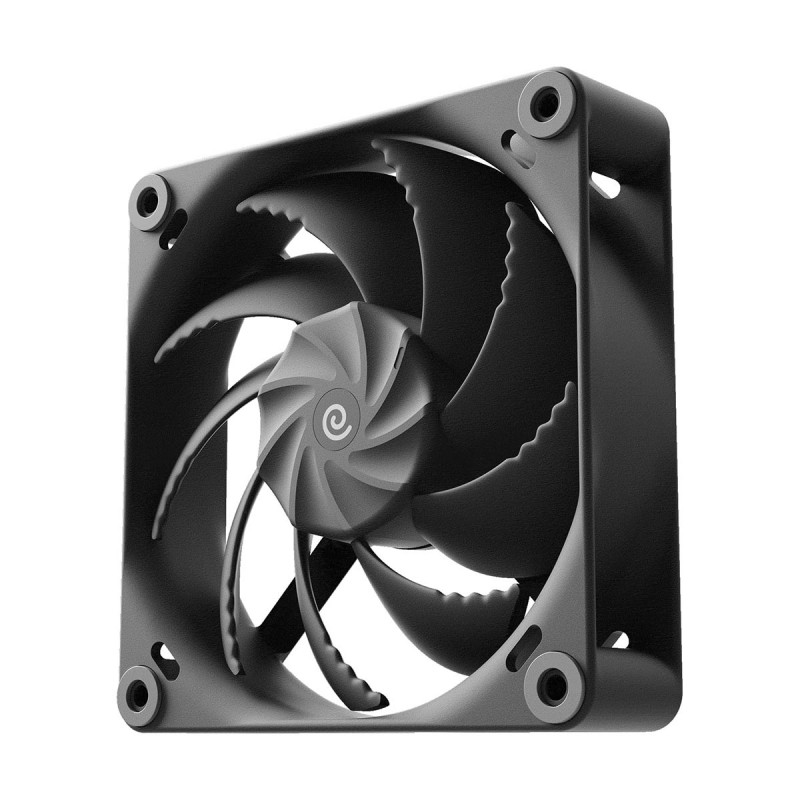

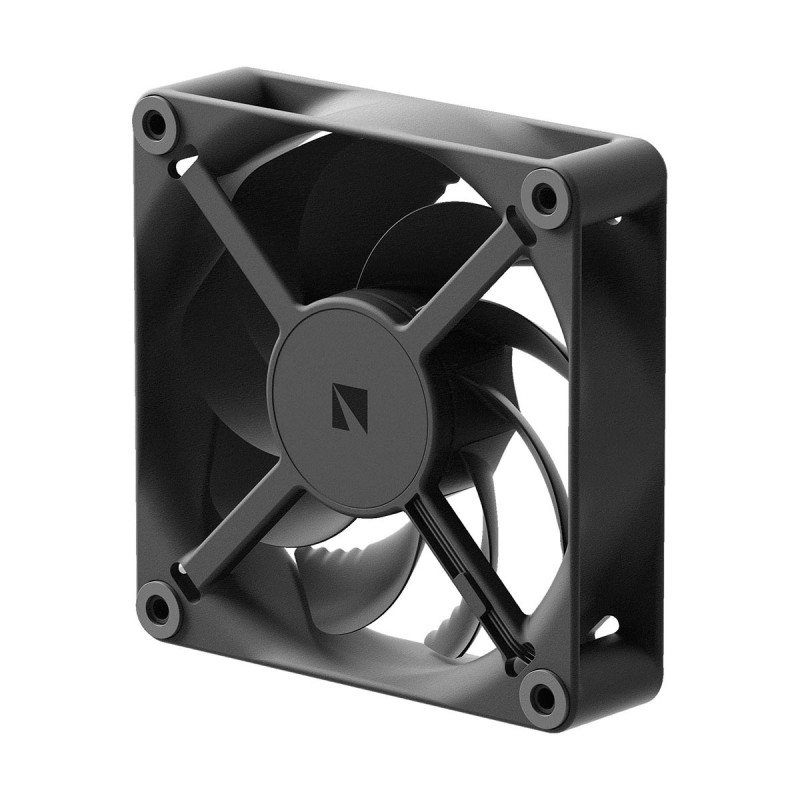

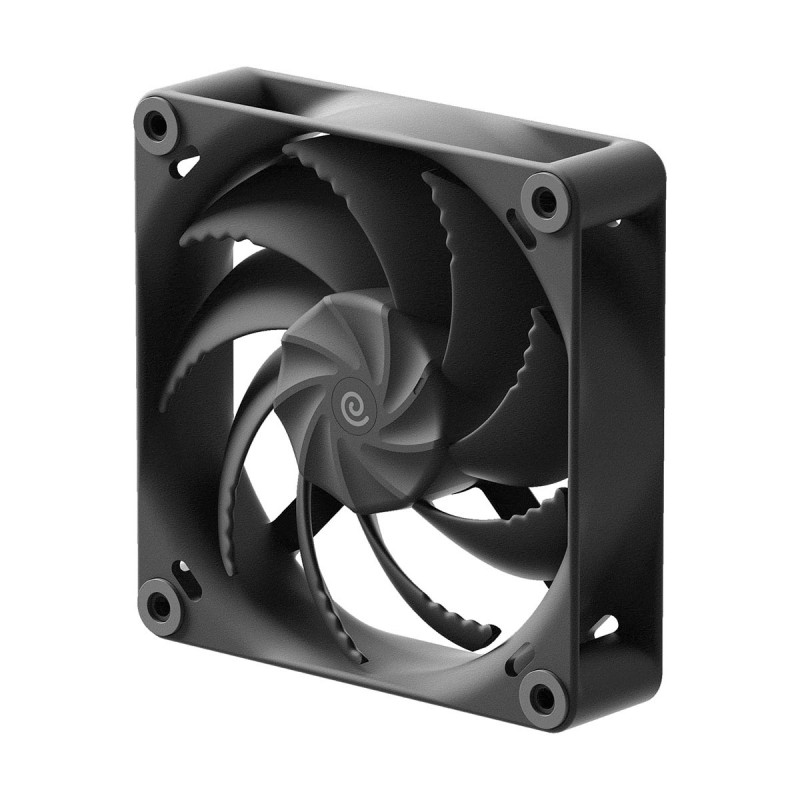

The HAVN H12 120mm PWM Case Fan is engineered for PC enthusiasts who demand powerful cooling, premium build quality and whisper-quiet operation. Designed for gaming systems, creator workstations and high-performance desktop PCs, the H12 combines advanced aerodynamic engineering with durable materials to deliver outstanding cooling efficiency in demanding environments.
Built around an enhanced 30mm-thick frame, the H12 provides greater blade depth than conventional 25mm fans, improving airflow and static pressure without sacrificing acoustics. Operating between 0 and 2100 RPM using PWM control, the fan delivers up to 72.44 CFM of airflow with an impressive 3.01 mmH₂O of static pressure, making it ideal for high-airflow chassis as well as radiator applications.
The premium Fluid Dynamic Bearing (FDB) utilises HAVN’s Triple Groove lubrication technology to ensure exceptionally smooth, reliable operation while extending bearing life beyond 150,000 hours MTTF. Combined with anti-vibration rubber corner pads and a durable PBT + 30% glass fibre construction, the H12 is built to deliver years of dependable cooling performance.
HAVN’s innovative Loopin daisy-chain cable system simplifies cable management by allowing compatible fans to connect together while reducing the number of motherboard fan headers required. Installation is cleaner, easier and perfectly suited to premium showcase PC builds.
Whether you’re replacing an existing fan or adding additional airflow to your gaming PC or workstation, the HAVN H12 offers outstanding cooling performance, premium engineering and exceptionally quiet operation in a compact single-fan design.
– Enhanced 30mm Frame – Larger blade depth improves airflow and cooling efficiency over standard fans.
– High Static Pressure Performance – Delivers up to 72.44 CFM airflow with 3.01 mmH₂O static pressure.
– Quiet PWM Operation – Automatically adjusts fan speed to balance cooling performance and noise levels.
– Premium FDB Bearings – Provides whisper-quiet operation with over 150,000 hours of reliability.
– Cleaner Cable Management – Loopin daisy-chain system minimises cable clutter and simplifies installation.
– Durable Premium Construction – PBT reinforced with 30% glass fibre ensures long-lasting performance.
– Built for Enthusiast PCs – Perfect for gaming systems, radiators and professional workstation builds.
| Specification | Details |
|---|---|
| Brand | HAVN |
| Product | H12 PWM Case Fan |
| Model | HVN-FS-H1230-02 |
| Colour | Black |
| Fan Quantity | 1 |
| Fan Size | 120mm |
| Fan Dimensions | 120 × 120 × 30mm |
| Bearing Type | Fluid Dynamic Bearing (FDB) |
| Speed Range | 0–2100 RPM |
| Fan Control | PWM |
| Maximum Airflow | 72.44 CFM |
| Static Pressure | 3.01 mmH₂O |
| Maximum Noise Level | 32.2 dB(A) |
| Connector | 4-Pin PWM |
| Rated Voltage | DC 12V |
| Rated Current | 0.35A |
| Power Consumption | 4.2W |
| Frame Material | PBT + 30% Glass Fibre |
| Blade Material | PBT + 30% Glass Fibre |
| Net Weight | 200g |
| MTTF | Over 150,000 Hours |
| Daisy-Chain Support | Yes (Loopin System) |
| Anti-Vibration Pads | Yes |
| Included Accessories | 1 × Sleeved Fan Extension Cable, 4 × Mounting Screws |
| Warranty | 2 Years |
