Description
-
- Patented Integrated Twin Turbines – The patented twin-turbine function runs parallel with one another and functions simunateously to push both currents toward the copper cold-plate to significantly reduce the temperature and keep hardware cool.
-
- Water Block Intricately Created by Sandblasting Anodized Aluminium (New!)
-
- Improved AIO Design to Accelerate Heat Dispatching (New!) Array of Microchannel Fins – The SR PRO Series possesses a high waterflow pump, which enhances cooling performance directly on the copper plate to cool the CPU. The copper plate hosts an array of microchannel fins that dissipates heat.
-
- Specially Designed ARGB Static Pressure Fans. Radiator Fans that Flow! – The Jupiter series AJF120 case fans are specially designed for liquid-cooling. The fans feature high airflow (101. 5 CFM), high static pressure (4. 22mm H2O) and possesses a high-speed mode that ramp up the RPMs to 2500.
-
- Behold, the Vibrant Intensity of 16.8 Million ARGB Color Combinations (New!) Cautionary LEDs – The pump illuminates a white LED logo under normal circumstances. If it detects an unusual current or excessive heat, the LEDs will flash red and blue to prevent damaging components.
-
- Syncs with Addressable Motherboards – There are about 16. 8 million ARGB color possibilities, which means the AJF120 case fans allow the customization to meet your build’s standards. Users can choose to control lighting independently by using the One-Click controller included or to sync with an addressable motherboard (3-pin, 5V).
| SPECIFICATIONS | |
| Brand | InWin |
| Series | SR36 PRO |
| Model | IW-LC-SR36PRO |
| Fan Specifications | |
| Model | Jupiter Series AJF120 |
| Dimensions | 120 x 120 x 26 mm |
| Quantity | 3 PCS |
| Speed | PWM 500-2500 RPM /- 10% |
| Airflow | 101.5 CFM (Max) |
| Noise Level | 23 dBA (Normal) |
| Static Pressure | 4.22 mm-H2O |
| Bearing Type | Double Ball Bearing |
| Connectors | 4-pin (12V, PWM) , 3-pin (5V, ARGB) |

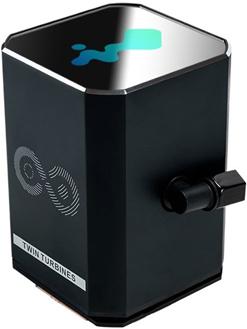

| Water Block & Pump | |
| Dimensions | 68 x 68 x 100 mm |
| Materials | Aluminum, Copper, Acrylic |
| Pump Speed | 2400±10%RPM |

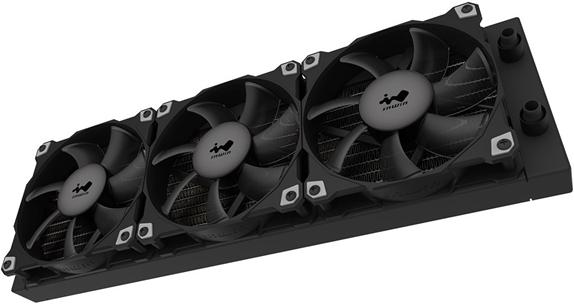

| Radiator Specifications | |
| Dimensions | 397 x 120 x 27 mm |
| Materials | Aluminium |
| Tube Length | 400 mm |
| Tube Materials | Rubber with Nylon Braided Sleeve |
| General | |
| Colour | Black |
| Compatibility | Intel: LGA 2066/2011-V3/2011/1366/1156/1155/1151/1150/1200 |
| AMD: AM5/AM4/AM3 /AM3/AM2 /AM2/FM2 /FM2/FM1/TR4 | |

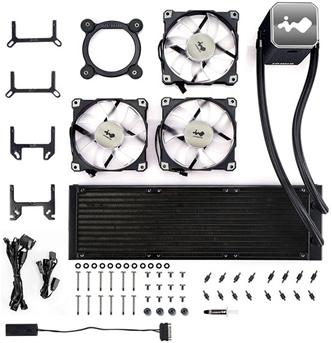

| Package Contents | InWin SR PRO Series 360mm CPU Liquid Cooler |
| 3x InWin AJF120 Addressable Fan | |
| ARGB One-Click Controller | |
| Fan and Radiator Mounting Screws Pack | |
| Mounting Kit for CPU Sockets | |
| Cable Pack | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
