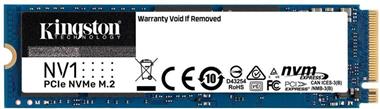

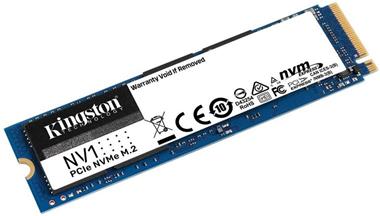

Kingston SNVS/250G NV1 250GB M.2 2280 NVMe SSD

Efficient Performance for Thinner Notebooks and Systems
Kingston’s NV1 NVMe PCIe SSD is a substantial storage solution that offers read/write¹ speeds up to 2,100/1,700MB/s, which is 3 to 4 times faster than a SATA-based SSD, and 35 times faster than a traditional hard drive. NV1 works with lower power, lower heat, and quicker loading time. The efficient performance and single-sided M.2 2280 (22x80mm) design makes NV1 ideal for thin notebooks and systems with limited space.

Available in capacities from 250GB ~ 2TB² to give you all the space you need for applications, documents, photos, videos, and more.

• • NVMe PCIe SSD Performance

• • Ideal for laptops & small form factor PCs

• • Capacities up to 2TB

• • Product contains drive only; cloning software not included

• • 3-year Kingston® manufacturer limited warranty

NVMe PCIe Performance at a Fraction of the Cost
Offers read/write speeds up to 2,100/1,700MB/s¹.

Ideal for Systems with Limited Space
Easily integrate into designs with M.2 connectors. Perfect for thin laptops and small form factor PCs.

Multiple Capacities
Available in a range of capacities up to 250GB ~ 2TB² to meet your data storage requirements.

Additional Information

Visit the Manufacturer Product Web Page for Full Details

Download the Manufacturer Datasheet for More Details

• • Laptops & Motherboards with available M.2 SATA port

• • Requires space for a 80mm long M.2 Drive

Make and Model	Kingston® NV1 Series M.2 PCI-E SSD, 250GB
Part Number	SNVS/250G
Capacity	250GB2
Data Transfer	Sequential: Reads: up to 2,100MB/s Writes: up to 1,700MB/s
Random IOPS	N/A
Interface	M.2 NVMe PCIe Gen 3.0 x4
Form Factor	M.2 2280
MTBF	1.5 million hours
Total Bytes Written	120TBW
Temperature	Operating: 0 ~ 70°C Storage: -40 to 85°C
Vibration	Operating: 2.17G peak, 7~800Hz Non-Operating: 20G peak, 10~2,000Hz
Power Consumption	Idle: 5mW Average: 205mW Read: up to 1.1W Write: up to 3.3W
Dimensions (LxWxH)	80 x 22mm x 2.1 mm
Weight	7g

1. 1. Based on “out-of-box performance” using a PCIe 3.0 motherboard. Speed may vary due to host hardware, software, and usage.

1. 1. Some of the listed capacity on a Flash storage device is used for formatting and other functions and thus is not available for data storage. As such, the actual available capacity for data storage is less than what is listed on the products. For more information, go to Kingston’s Flash Memory Guide.

1. 1. Total Bytes Written (TBW) is derived from the JEDEC Client Workload (JESD219A).

1. 1. Limited warranty based on 3 years or “Percentage Used” which can be found using the Kingston SSD Manager (kingston.com/SSDManager). For NVMe SSDs, a new unused product will show a Percentage Used value of 0, whereas a product that reaches its warranty limit will show a Percentage Used value of greater than or equal to one hundred (100). See kingston.com/wa for details.

• • Kingston® NV1 M.2 NVMe PCI-E 3.0 x4 SSD, 250GB

• • User’s Information
