Description

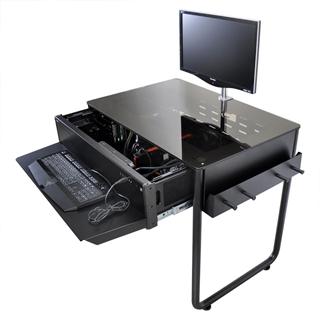

Lian Li DK-01 Aluminium Computer Desk Chassis

Tool-less HDD bay system

DK-01 has ten HDD bays. Each HDD bay allows for either 2.5″ or 3.5″ drives. ODD rack can be mounted a 2.5″ HDD.

Keyboard tray

Keyboard tray can be adjusted to low, medium, high loction.

Compatibility

VGA Card length: 400mm / PSU length: 400mm / CPU cooler height:175mm / Radiato: 240mm -360mm

Headphones rack

It can an be assembled on the left side or right side of the desk.

Padded Column

Padded columns are used to increase the height of your desk if it is too low. Each column is 30mm in height.

Monitor arms & stands support

Opening to monitor arms or stands.It’s size can be adjusted.

Specifications

• • Color: Black

• • Dimensions: (W)900mm x (H1)805mm x (H2)835mm x (D)600mmn

• • Keyboard tray: (W)800mm x (H)50mm x (D)270mm

• • Desktop Material: Tempered Glass (Max. load: 80kg)

• • Body Material: Aluminium

• • Leg Material: Iron

• • PSU: ATX PSU (Not included)

• • Drive bays
    • • 5.25″ drive bay (External): Slim ODD x1 or 2.5″ HDD x1



    • • 3.5″ drive bays: 3.5″/2.5″ HDD x10



    • • Expansion Slots: 10

• • Motherboard support: E-ATX, HPTX, XL-ATX, ATX , Micro-ATX

• • System Fans
    • • 120mm Fan x7

• • I/O Ports
    • • USB3.0 x 4



    • • HD Audio

• • Maximum Compatibility
    • • VGA Card length: 400mm



    • • PSU length: 400mm



    • • CPU cooler height:175mm



    • • Radiator support: 240mm -360mm

• • Package measurements and weight
    • • Packages: 2



    • • (1) (W)974mm x (H)674mm x (L)431mm



    • • (2) (W)854mm x (H)174mm x (L)663mm



    • • Weight: (1) 34kg, (2) 10kg
