Description

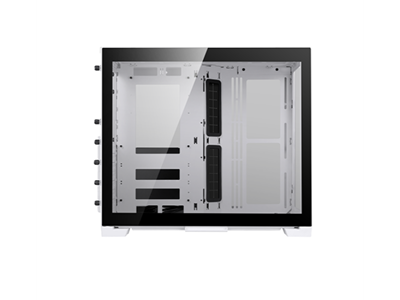

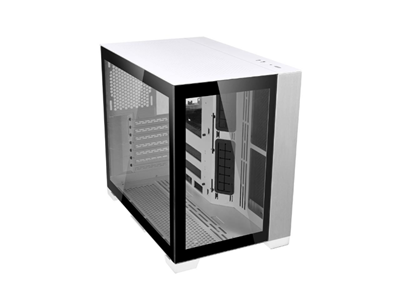

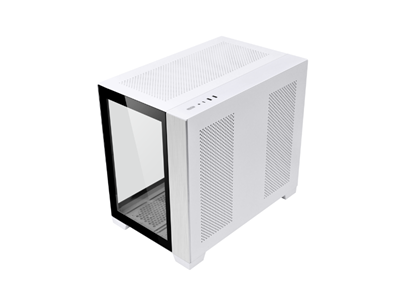

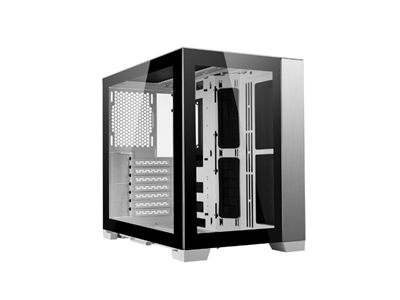

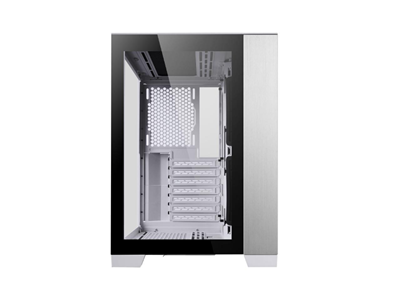

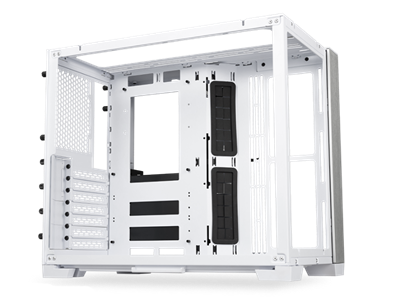

O11D MINI adding to the O11 Dynamic series, the classic and mordern looking. A case that would accommodate the maximum number of water-cooling configurations without being oversized. With a modular back panel design, the user has the option to choose from 3 slots/ 5 slots/ 7 slots I/O shield to optimize the case to the configuration of user’s choice. Supports mini-ITX, micro-ATX, ATX, and E-ATX motherboard sizes. and up to 9 fans to cool the chassis.
THINK BIG, BUILD SMALL !
With the capacity and flexibility of the O11D Mini, you can expand your creativity and water-cooling potential inside its compact frame.
CONFIGURATION OF YOUR CHOICE

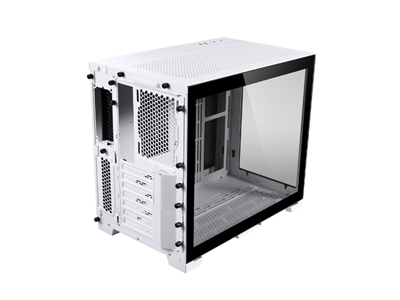

MODULAR BACK PANEL
Decide how many expansion slots you need. Calculate the size of your fans & accessories.
Pick your motherboard type. 3 kinds of back panels to meet your demand!
SIDE RADIATOR CONFIGURATION WITH LONG GPU
The 30mm space behind the side fan / radiator bracket allows users to mount fans, thus efficiently intake fresh air to directly cool the radiator and leaves enough space to install long GPUs in this compact case.
FLAT PUMP STAND
IDEAL FOR MOUNTING THE PUMP DIRECTY AT THE BOTTOM OF THE CASE.
ELEVATED PUMP STAND
MOUNTING THE PUMP NEXT TO THE 240/280MM RADIATOR. EASILY MATCH INTERFACE.
FLOATING PUMP STAND
MOUNTING ABOVE A 120MM FAN ON A RADIATOR. EASILY MATCH INTERFACE.
EXQUISITE APPEARANCE
With a blend of brushed aluminum and tempered glass, the O11D Mini not only looks classic and modern,
but also has a high-quality feel and touch on the exterior.
DUAL-CHAMBER DESIGN FOR CABLE MANAGEMENT
Carried from the design of the O11D series, cables quickly pass to the second chamber through rubber grommets. Multiple tie points and Velcro strap channels are provided to tidy up the cables while the SSD mounting bar helps keep the loose cables all snuggled up to ensure a clean look and prevent the right-side panel from not closing or bulging.
COMPLETE DUST PROTECTION
All 3 ventilation intake sides are equipped with magnetic dust filters and a removable dust tray to prevent the dust from entering the case.
German Engineering Approved
The O11 Dynamic series from LIAN LI is developed in collaboration with DER8AUR, a world-renowned German overclocking, water cooling, and gaming evangelist. Always looking for ways to improve computer design and performance, DER8AUER volunteered his time to review and test the design concepts of the O11D series.
Starting with the first O11 Dynamic and up until the most recent models of the O11D series, LIAN LI appreciates the input from DER8AUER which helped make the O11D series exceptional cases, especially in terms of custom water cooling compatibility, ease of build, and features offered. As a result, DER8AUER’s seal of approval is elegantly displayed beside the LIAN LI logo, standing as a statement of quality and reliability
| SPECIFICATIONS | |
| Brand | Lian-Li |
| Series | O11 Dynamic |
| Model | O11D Mini-W |
| Physical Details | |
| Colour | White |
| Materials | 0.8mm SPCC (body) |
| 1mm SPCC (interior, back panel) | |
| 4 mm Tempered Glass | |
| 2mm Aluminum (top and left panel) | |
| I/O Ports | 2x USB 3.0 |
| 1x USB 3.1 Type-C | |
| 1x HD Audio | |
| Power Button | |
| Motherboard Support | ATX/ Micro-ATX/ Mini-ITX |
| Expansion Slots | 3 or 5 or 7 slots (Depends on Back Panel) |
| Drive Bays | Right side 2x 2.5″ SSD |
| Back Plate 2x 3.5″ HDD / SSD | |
| PSU Support | SFX/ SFX-L |
| Dimensions | 269.5 x 380 x 420 mm (WxHxD) |
| Weight | 8.5kg |
| Fan Support | |
| Side | 2x 120mm or 2x 140mm |
| Top | 3x 120mm or 2x 140mm |
| Bottom | 3x 120mm or 2x 140mm |
| Rear | 1x 120mm |
| Radiator Support | |
| Side | 240mm or 280mm |
| Top | 360mm or 280mm or 240mm |
| Bottom | 360mm or 280mm or 240mm |
| Clearance | |
| CPU Cooler Height Limitation | 170mm |
| GPU Length Limitation | 395mm |
| General | |
| Dust Filters | 1 x Top, 1 x Bottom, 2 x Side |
| Warranty Information | |
| Warranty | 1 Year Warranty |
