Description

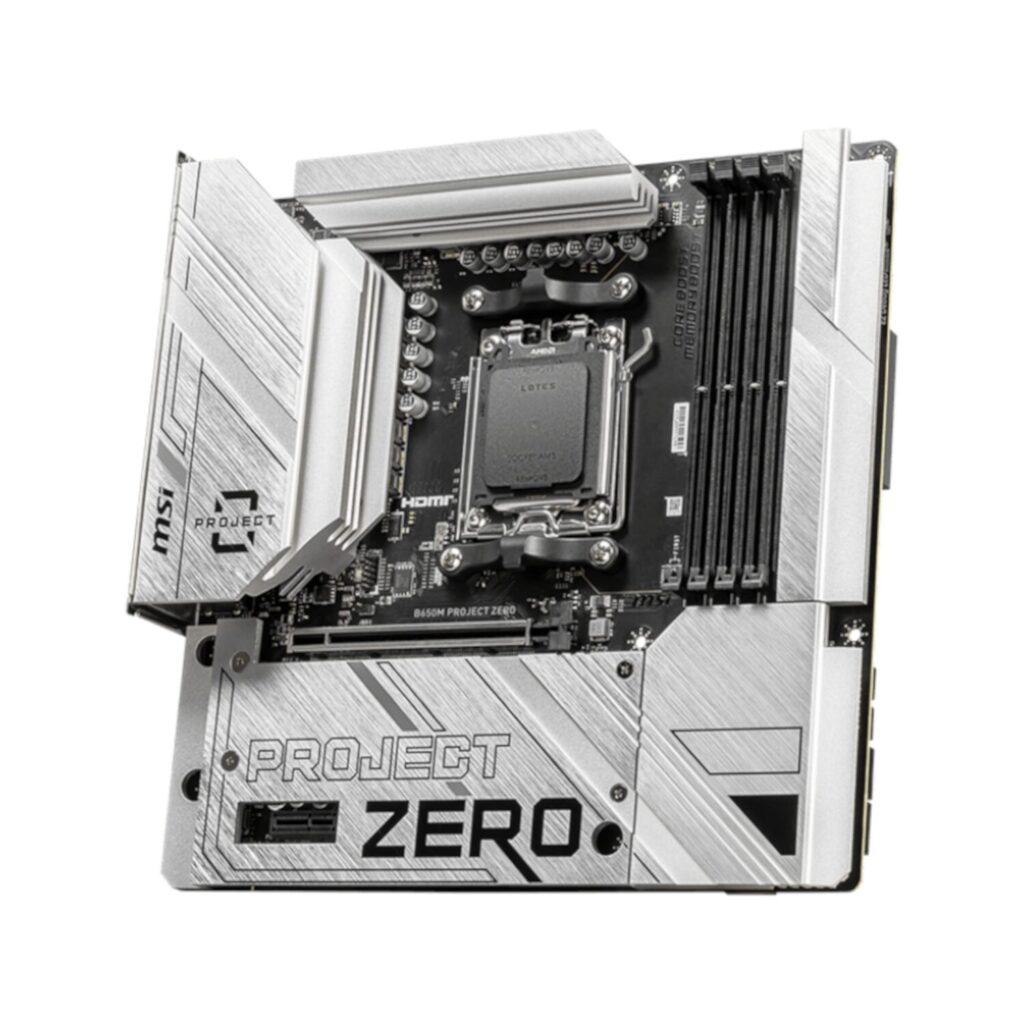

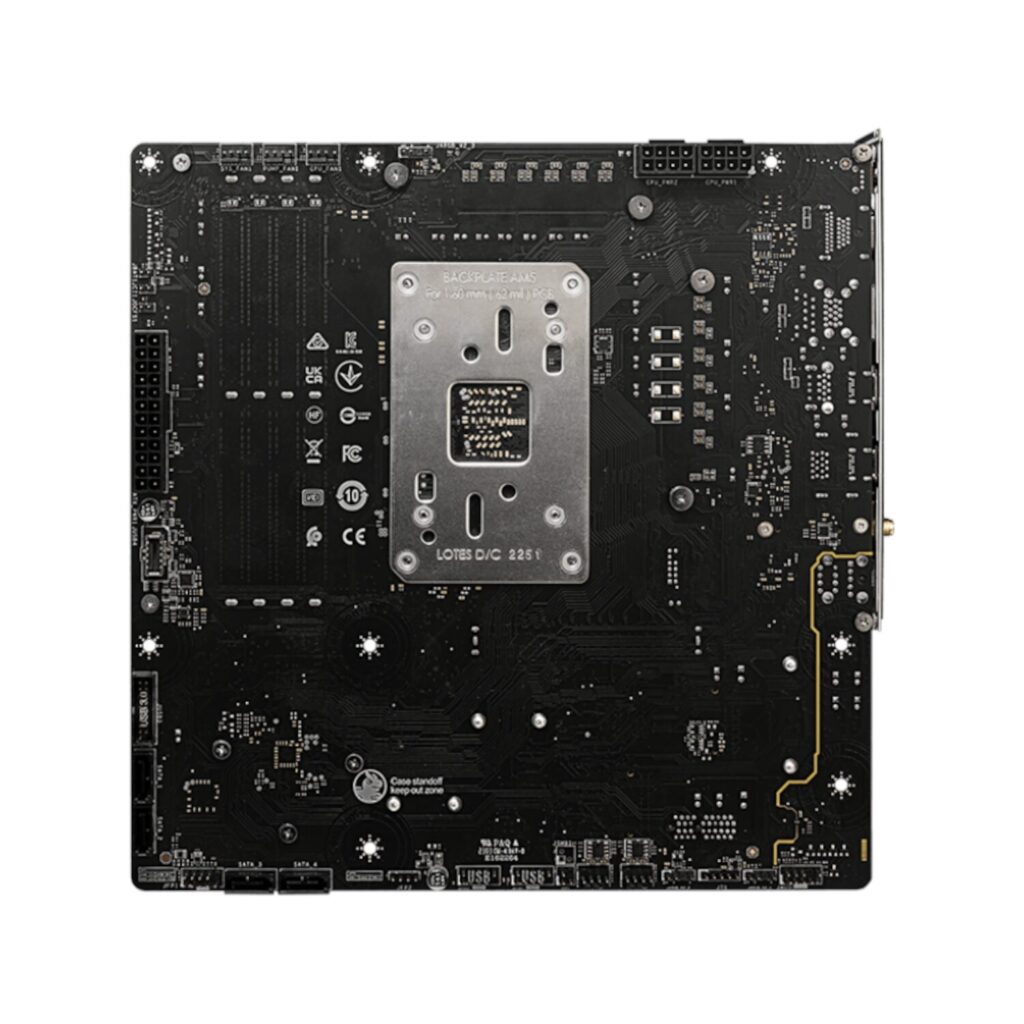

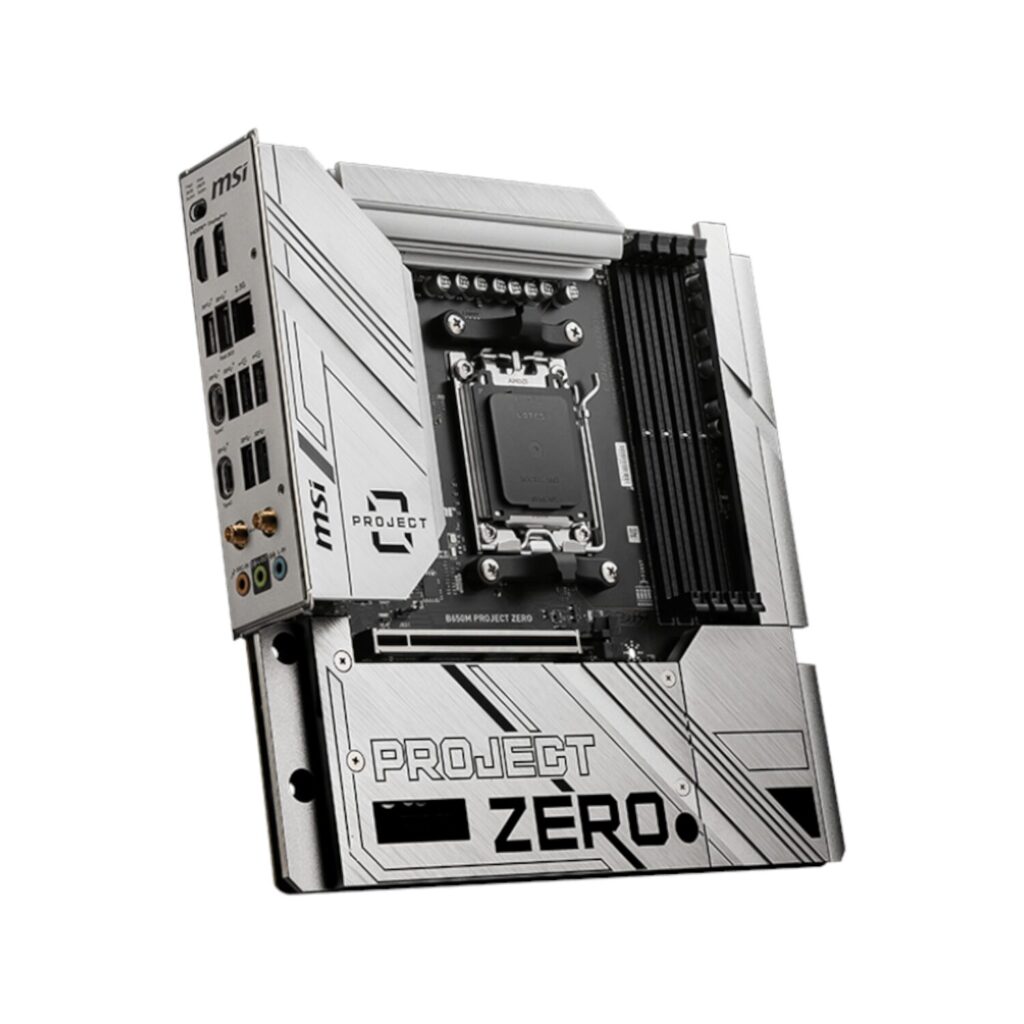

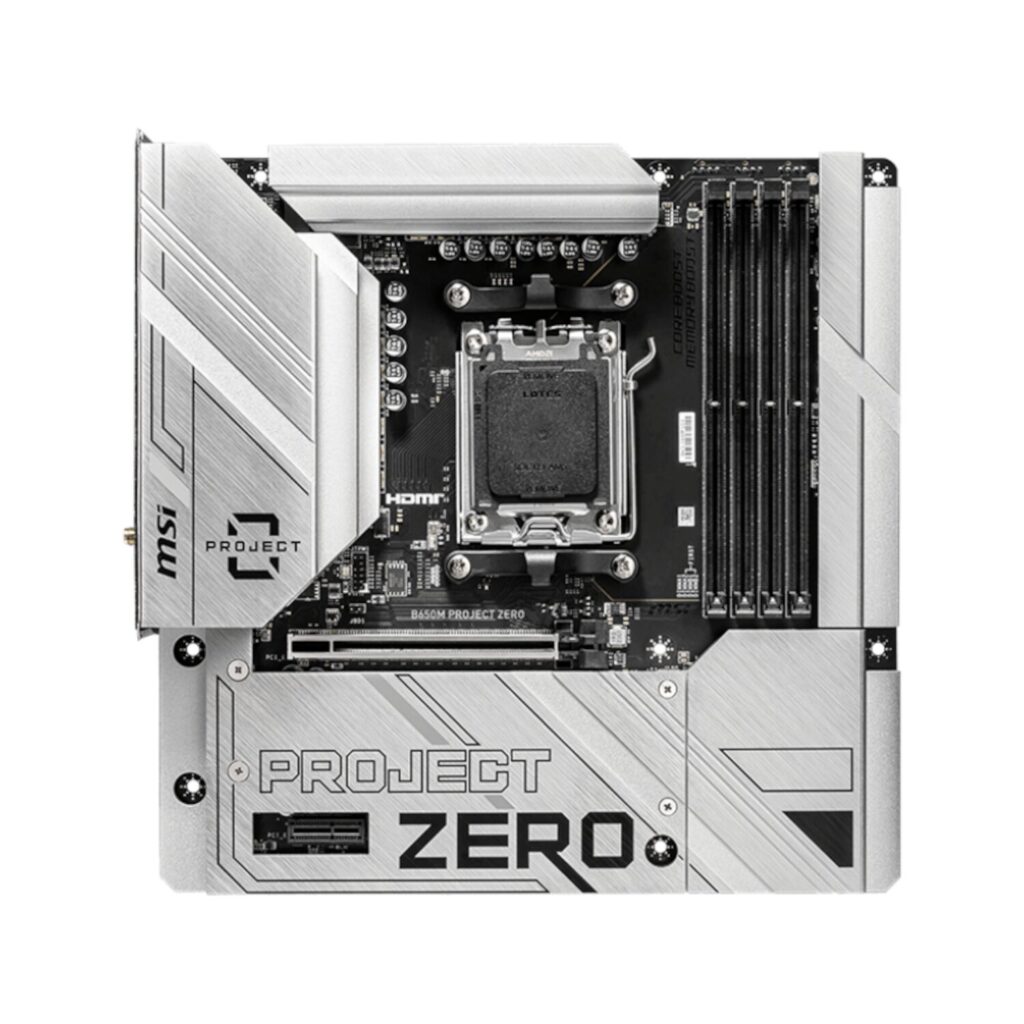

The MSI B650M PROJECT ZERO motherboard redefines modern PC building with a unique combination of form, function, and cutting-edge technology. Tailored for gamers, content creators, and tech enthusiasts, this micro-ATX motherboard supports AMD Ryzen™ 7000 series processors, providing an efficient and high-performance platform for your next-generation build. The standout feature of the MSI B650M PROJECT ZERO is the ‘Back Connect Design,’ which relocates essential connectors and headers to the motherboard’s rear, improving airflow and ensuring a clean and efficient front-facing build.
Built with robust thermal management in mind, it features an extended heatsink for better heat dissipation, while the M.2 Shield Frozr helps prevent SSD thermal throttling. Whether you’re into competitive gaming or resource-intensive tasks, this motherboard supports high-speed networking via Wi-Fi 6E and a 2.5Gbps LAN port, ensuring uninterrupted online experiences. Additionally, the motherboard offers a vast array of USB ports, including high-speed USB 3.2 and Type-C, perfect for transferring large files swiftly.
The MSI B650M PROJECT ZERO’s design not only prioritizes performance but also supports future-proofing with its DDR5 memory overclocking capabilities, empowering your system to handle the latest software and demanding workloads. This motherboard is engineered for those who demand the best in both aesthetics and performance, with every feature meticulously crafted to maximize your computing experience.
FEATURES:
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, up to 7600+(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop work
- 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
- Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
- Audio Boost: Reward your ears with studio-grade sound
Compatibility
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors for Socket AM5
Note: Requires a Project Zero compatible case for full compatibility.
System Requirements
- Windows® 11 / 10, 64 bit
Specifications
| Make and Model | MSI B650M PROJECT ZERO Motherboard |
|---|---|
| Part Number | B650M PROJECT ZERO |
| Windows® Support | Windows® 11 / 10, 64 bit |
| CPU Support | Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors for Socket AM5 |
| Chipset | AMD B650 Chipset |
| Memory | 4x DDR5 Memory Slots, Maximum Memory Capacity 128GB (4x 32GB) Overclocked Memory Support: 7600+ / 7400 / 7200 / 7000 / 6800 / 6600 / 6400 / 6200 / 6000 / 5800 / 5600 / 5400 / 5200 / 5000 MHz Stock Clocked Memory Support: 4800 MHz Maximum Overclocking Frequency: Supports non-ECC, un-buffered memory |
| Onboard Graphics* | 1x HDMI v2.1 port*, up to 4K UHD @ 60Hz w/ HDR 1x DisplayPort v1.4 port* up to 4K UHD @ 60Hz *Available only on Processors featuring integrated graphics. Graphics specifications may vary based on the CPU. |
| Expansion Slots | 1x PCI-E 4.0 x16 slot 1x PCI-E 3.0 x1 slot |
| Storage | 2x M.2 Slots M.2_1 Slot: PCIe 4.0 x4 slot for a 2280 / 2260 device M.2_2 Slot: PCIe 4.0 x4 slot for a 2280 / 2260 device M.2 Slots support RAID 0 and RAID 1 4x SATA III 6Gbps ports |
| USB | Rear USB Ports: 1x USB 3.2 Gen2x2 (20Gbps) Type C port 1x USB 3.2 Gen2 (10Gbps) Type C port 3x USB 3.2 Gen2 (10Gbps) Type A ports 2x USB 3.2 Gen1 (5Gbps) Type A ports 2x USB 2.0 (480Mbps) Type A ports Front Panel USB Ports: |
| LAN | Realtek® RTL8125BG 2.5Gbps LAN Chipset 1x 2.5Gbps RJ45 LAN port |
| Wi-Fi | AMD® Wi-Fi 6E Chipset Supports Wi-Fi 6E (IEEE 802.11ax) w/ MU-MIMO TX/RX 20MHz, 40MHz, and 80MHz bandwidths in 2.4GHz/ 5GHz / 6GHz bands Supports IEEE-802.11 ax / ac / n / g / b / a The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Bluetooth | AMD® Wi-Fi 6E Chipset Bluetooth v5.3 |
| Audio | Realtek® ALC897 Codec: 7.1-Channel USB High Definition Audio Rear Audio jacks: Front Panel Audio jack: |

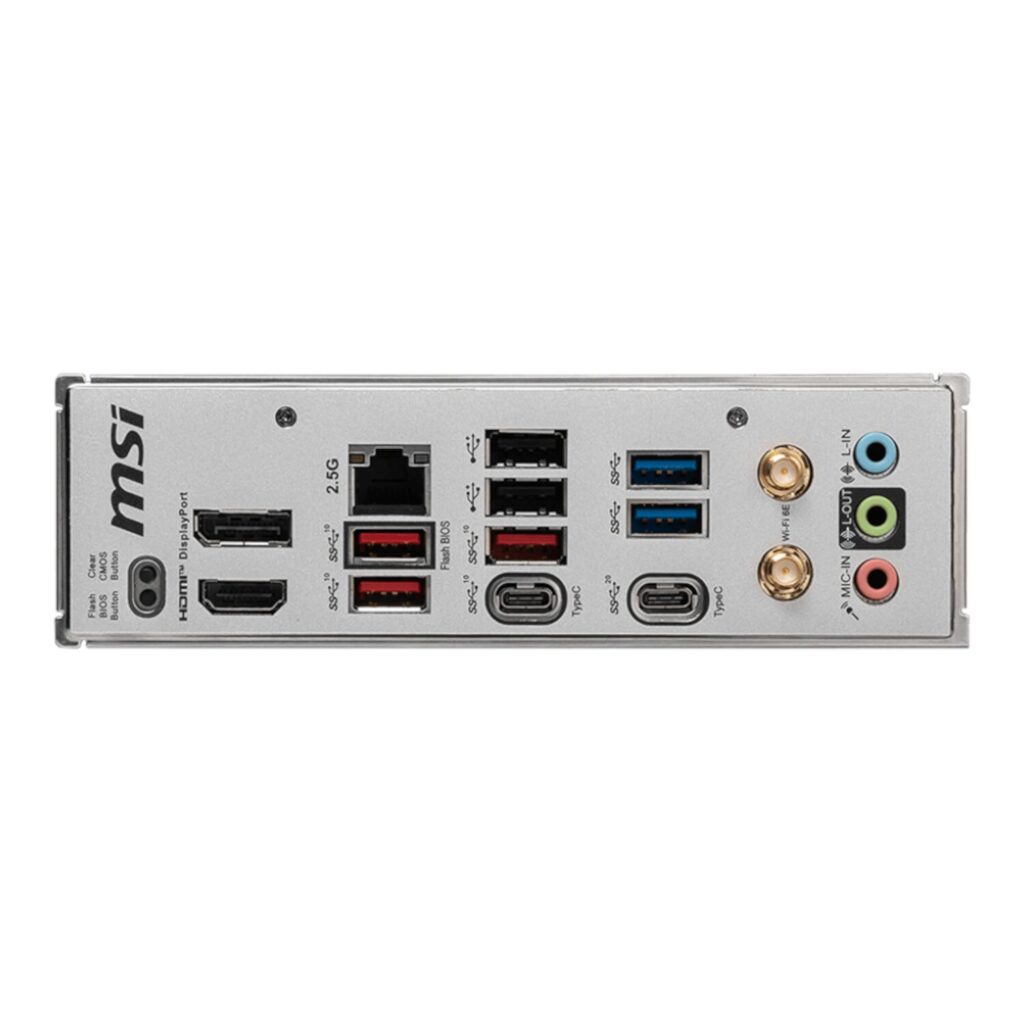

| Rear I/O Ports | 1x HDMI v2.1 port (up to 4K UHD @ 60Hz) 1x DisplayPort v1.4 port (up to 4K UHD @ 60Hz) 1x USB 3.2 Gen2x2 (20Gbps) Type C port 1x 2.5Gbps RJ45 LAN port 3x 3.5mm Audio jacks 1x Flash BIOS Button |
| Internal I/O Connectors | 1x Power Connector (ATX_PWR) 2x Power Connector (CPU_PWR) 1x CPU Fan Connector 2x Front Panel Connectors (JFP) 1x Chassis Intrusion Connector (JCI) 1x Front Audio Connector (JAUD) 3x Addressable V2 RGB LED Connector (JARGB_V2) 1x TPM pin header (Supports TPM 2.0) 1x USB 3.2 Gen2 (10Gbps) Type C port via 1x USB 3.2 Connector |
| LED Indicators | 4x EZ Debug LEDs |
| Form Factor | mATX Form Factor |
| Dimensions | 243.8 x 243.8mm |
| Weight | N/A |
