Description

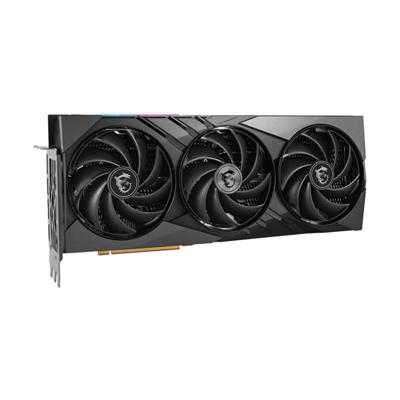

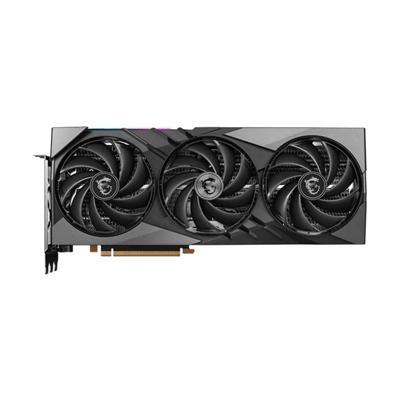

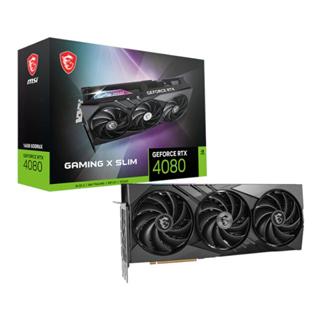

RTX 4080 GAMING X SLIM 16G
The NVIDIA® GeForce RTX™ 4080 delivers the ultra-performance and features that enthusiast gamers and creators demand. Bring your games and creative projects to life with ray tracing and AI-powered graphics with DLSS 3. It’s powered by the ultra-efficient NVIDIA Ada Lovelace architecture and up to 16GB of superfast G6X memory. The MSI GAMING SLIM series is a thinner variant of the GAMING series while maintaining high-performance capabilities and aggressive looks.
Its lightened design is made for those building a gaming rig with space constraints. Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control. Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.
The heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.
Core pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touches the GPU baseplate and spreads the heat along the full length of the heatsink. Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.
Specifications:
| Graphics Processing | GeForce RTX 4080 SUPER |
| Core Clock | Extreme Performance: 2625 MHz (MSI Center) (Reference Card: 2550 MHz) Boost: 2610 MHz (Reference Card: 2550 MHz) |
| CUDA Cores | 10240 |
| Ray Tracing Cores | 80 |
| Tensor Cores | 320 |
| Streaming Multi-Processors | 80 |
| Memory Clock | 23000 MHz |
| Memory Size | 16 GB |
| Memory Type | GDDR6X |
| Memory Bus | 256 bit |
| Memory Bandwidth (GB/sec) | 736 GB/s |
| Card Bus | PCI-E 4.0 x16 |
| Digital max resolution | 7680 x 4320 |
| Multi-view | 4 |
| Card size | 322mm x 136mm x 62mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 850w |
| Power Connectors | 1 x 16-pin |
| Output | 2 x DisplayPort 1.4a 2 x HDMI 2.1a |
| Multi-GPU Support | No |
| Accessories | Adapter Cable (1 to 3) GPU Support Bracket |
