Description

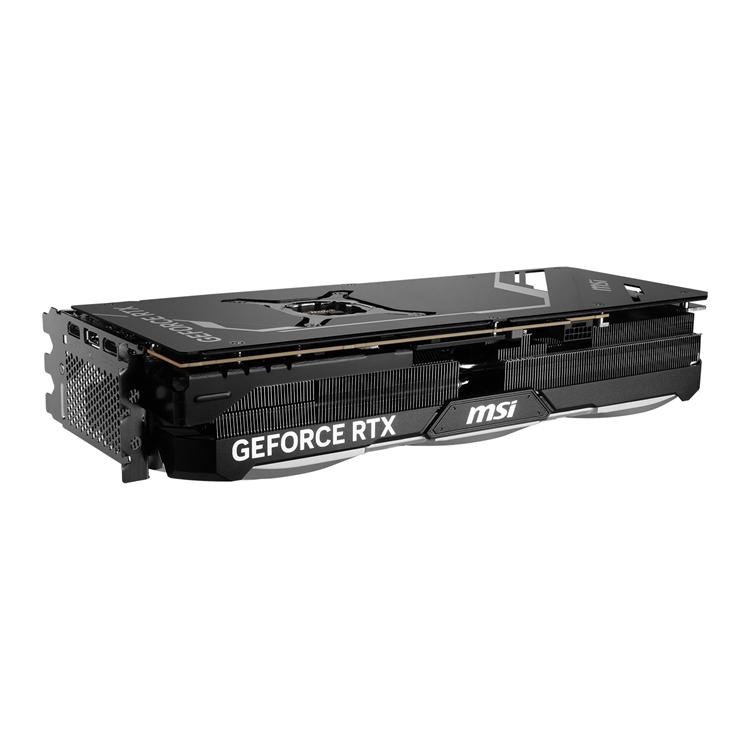

MSI GeForce RTX 4080 SUPER VENTUS 3X OC Edition 16GB GDDR6X 256-bit PCIe 4.0 Desktop Graphics Card

RTX-4080-SUPER-16G-VENTUS-3X-OC

Take the Essentials

VENTUS brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 and Airflow Control lets VENTUS breeze through any task.

TORX Fan 4.0

TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the Dual-Fan cooling system.

Copper Baseplate

Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.

Airflow Control

Stay stealthy with Airflow Control which improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling.

Core Pipe

Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.

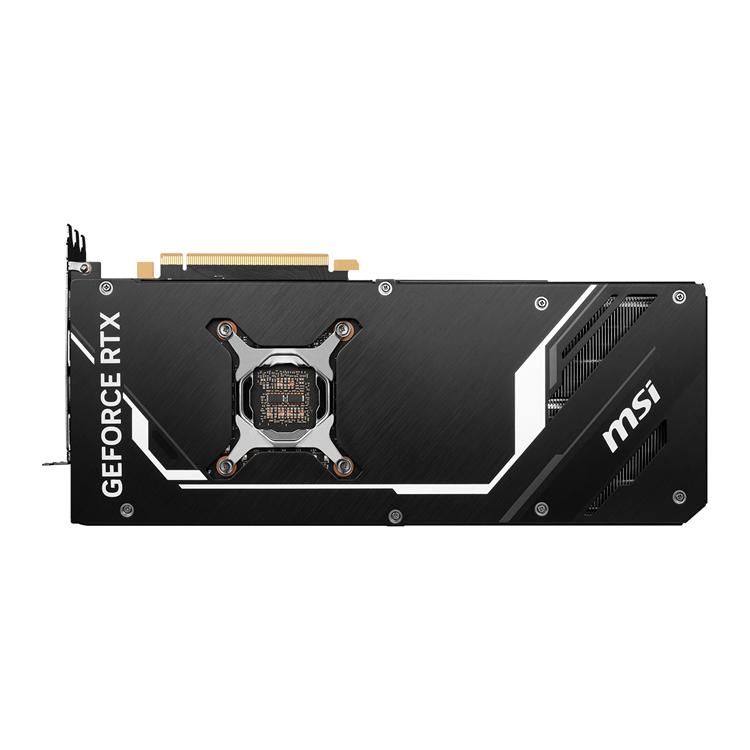

Metal Backplate

A sturdy brushed aluminium backplate features a flow-through design that provides additional ventilation.

Zero Frozr

The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is not needed. The fans will automatically start spinning again when the heat is on during gaming.

Fuse

Additional fuses built into the custom PCB provide additional safeguards against electrical damage.

Ray Tracing

The Ada architecture unleashes the full glory of ray tracing, which simulates how light behaves in the real world. With the power of RTX 40 Series and third-gen RT Cores, you can experience incredibly detailed virtual worlds like never before.

NVIDIA DLSS 3

DLSS is a revolutionary breakthrough in AI graphics that multiplies performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional frames and improve image quality.

NVIDIA Reflex

NVIDIA Reflex and GeForce RTX 40 Series GPUs deliver the lowest latency and best responsiveness for the ultimate competitive advantage. Built to optimize and measure system latency, Reflex provides faster target acquisition, quicker reaction times, and the best aim precision for competitive games.



SPECIFICATIONS
Brand	MSI
Series	VENTUS Series
Model	GeForce RTX 4080 SUPER 16G VENTUS 3X OC Edition (RTX-4080-SUPER-16G-VENTUS-3X-OC)
Chipset
GPU	GeForce RTX 4080 SUPER
Chipset Manufacturer	NVIDIA
Interface	PCIe 4.0 x16
Base Clock	2210 MHz
Boost Clock	Up to 2580 MHz
MSI Center Extreme Performance Boost Clock	Up to 2595 MHz
CUDA Cores	10420 Cores
GPU Architecture	NVIDIA Ada Lovelace
Memory
Effective Memory Clock	22.4Gbps
Memory Size	16GB
Memory Interface	256-bit
Memory Type	GDDR6X
3D API
DirectX	Microsoft DirectX 12.1 Ultimate
OpenGL	OpenGL 4.6
Vulkan	Vulkan RT API
Connectivity
Ports	2x HDMI 2.1a
	2x DisplayPort 1.4a
HDCP Support	Yes, 2.3
Multi-Monitor Support	Up to 4
Maximum Digital Resolution	7680 x 4320
VR Ready	Yes
General
SLI Support	N/A
Features	MSI VENTUS 3X Cooling System with TORX 4.0 Fans
	Ventilated Supporting Metal Back Plate
	MSI Afterburner Overclocking Utility
	MSI Center Utility
	NVIDIA Optical Flow Accelerator Technology
	3rd Gen Ray Tracing Cores
	4th Gen Tensor Cores
	PCI Express Gen 4
	Real-Time Ray Tracing Technology
	NVIDIA GeForce Game Ready & Studio Drivers
	NVIDIA G-Sync Premium
	NVIDIA Reflex
	NVIDIA Broadcast
	NVIDIA AV1 Encoder
	NVIDIA Omniverse 3D Design
	NVIDIA Canvas
	NVIDIA GPU Boost
	NVIDIA Encoder, 8th Generation
	NVIDIA Decoder, 5th Generation
Power Requirements
Recommended Power Supply	850W
Power Connector	1x 16-Pin 12VHPWR Connector (or 3x 8-pin PCI PEG Connectors)
Physical Aspects
Form Factor	ATX
Slot Width	3-Slot
Dimensions	322 x 136 x 62mm (L x W x H)
RGB	N/A
Boxed Accessories	1x MSI PCIe Support Bracket
	1x 12VHPWR Adapter Cable
Warranty Information
Warranty	3 Year Warranty
