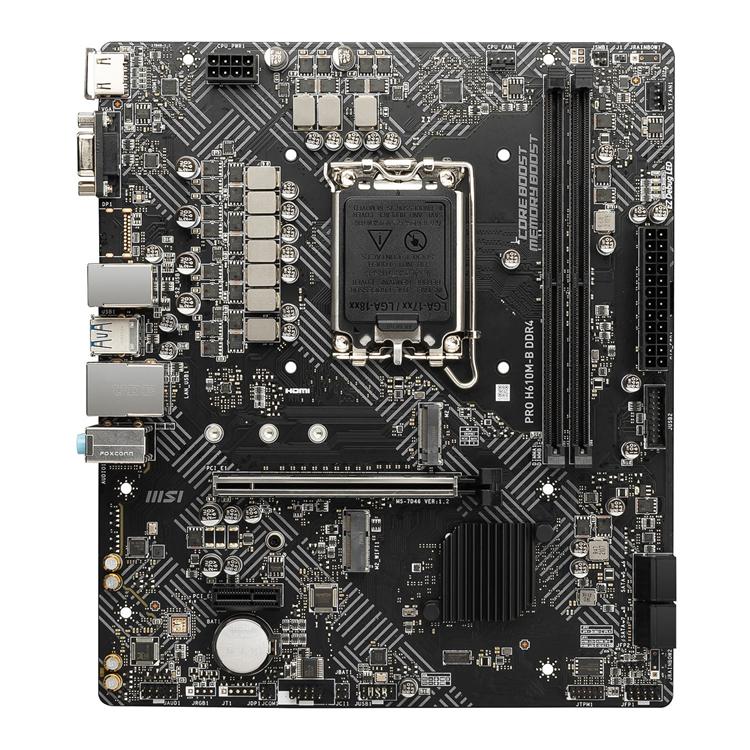

MSI H610M-B PRO Intel LGA1700 M-ATX Motherboard
MSI H610M-B PRO Intel LGA1700 M-ATX Motherboard - Image 2
MSI H610M-B PRO Intel LGA1700 M-ATX Motherboard - Image 3
MSI H610M-B PRO Intel LGA1700 M-ATX Motherboard - Image 4

MSI H610M-B PRO Intel LGA1700 M-ATX Motherboard

R1938.00 Incl. Vat

KEY FEATURES:

– Intel Socket LGA 1700

– Intel H610 Chipset

– 2x DDR4 Slots – up to 64GB

– 4x SATA 6Gb/s | 1x M.2 Slot

– 1 x HDMI Port

– Micro-ATX Form Factor

Out of stock

SKU: PROH610M-BDDR4 Categories: , , , , Tags: , , , , , , ,

Description

PRO H610M-B DDR4 Intel 12th Gen M-ATX Motherboard from MSI

BUSINESS ORIENTED DESIGN
MSI have returned with the Pro H610 series motherboards here to support the very latest 12th Generation Intel processors; boasting the brand new Intel 1700 LGA. The PRO H610M-B DDR4 is a business-oriented micro-ATX motherboard featuring the latest Intel H610 chipset that includes legacy-friendly display connectivity. The PRO H610M-B DDR4 features PCIe 4.0 technology, Gen3 M.2 support, Core & DDR4 Memory boosts, a thorough cooling solution with Frozr AI cooling, EZ Debug LEDs and a fully comprehensive rear I/O. The PRO H610M-G DDR4 combines all of these features with incredible durability and a fair price-point creating the perfect motherboard for daily usage and PC enthusiasts.

Intel H610 Chipset

LGA 1700 CPU Socket

12th generation Intel Compatible CPUs

M-ATX Form Factor

An Impeccable Feature Set

AUDIO BOOST
Reward your ears with studio grade sound quality for the most immersive gaming experience.

CORE BOOST
With premium layout and digital power design to support high end multi-core processors and provide better performance.

MEMORY BOOST
The fully isolated DDR circuit delivers pure data signals for the best gaming and sublime overclocking performance.

LIGHTNING GEN4 SOLUTION
The latest Gen4 PCI-E solution with up to 64GB/s bandwidth for maximum transfer speeds.

Experience The Boundaries Of Modern Performance

SUPPORTS INTEL CORE 12TH GEN PROCESSORS
The PRO H610M-B DDR4 motherboard supports 12th Gen Intel Core, Pentium Gold, and Celeron processors.

Experience Core Boost

FASTER AND UNDISTORTED CURRENT DELIVERY
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU.

Amp Up Your Storage

GEN3 M.2 CONNECTOR
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. The PRO H610M-G DDR4 motherboard features MSI’s Turbo Gen3 M.2 slot.

The Latest Generation

FORTIFIED PCI-E 4.0 X16

MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.

Specifications

Core Specifications
Edition PRO H610M-B DDR4
Form Factor MicroATX
CPU Socket 1700
Chipset Intel B660
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
    • DDR4 – 2133
    • DDR4 – 2666
    • DDR4 – 2933
    • DDR4 – 3200
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
    • D-Sub (VGA)
    • HDMI 2.1
Internal Connectivity
Expansion Slots
    • 1 x M.2 Key E (Supports Wi-Fi modules)
    • 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
    • 1 x PCIe 3.0 x1
    • 1 x PCIe 4.0 x16
    • 4 x SATA 6GB/s
SATA Support N/A
RAID Support via
Storage Mode Support
Internal I/O
    • 1 x 24-pin (Power)
    • 1 x 4-pin CPU Fan Connector
    • 1 x 4-pin System Fan Connector
    • 1 x 4-pin Water Pump Connector
    • 1 x 8-pin (Power)
    • 1 x Chassis Intrusion connector
    • 1 x Clear CMOS jumper
    • 4 x EZ Debug LED
    • 1 x Front Panel Connector
    • 2 x M.2
    • 1 x MONO out header
    • 4 x SATA III – 6Gb/s
    • 1 x Serial (COM) Header
    • 1 x SMBus header
    • 2 x System panel connector
    • 1 x TBT connector
    • 1 x TPM (Trusted Platform Module)
    • 2 x USB 2.0 Header
    • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)

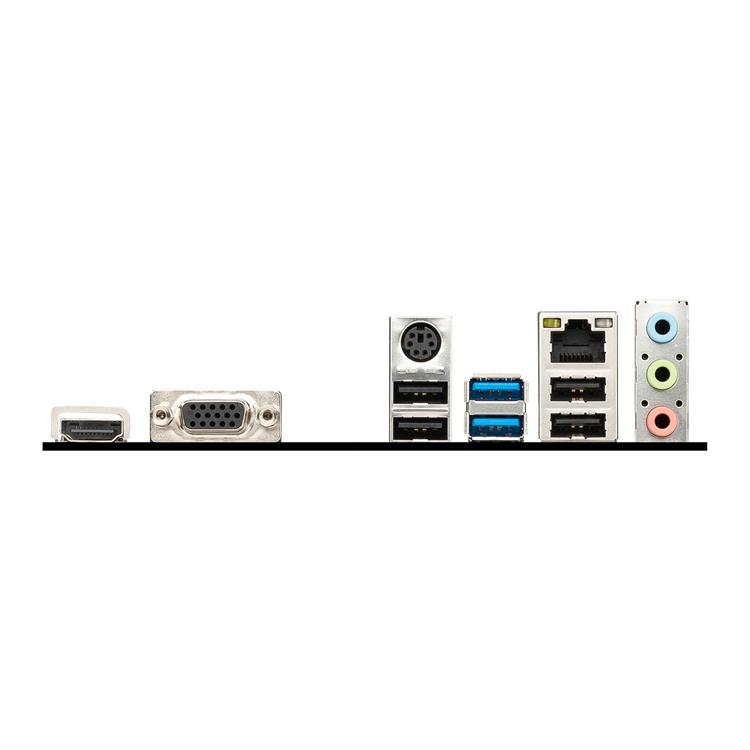

Rear I/O Connectors
    • 1 x 10/100/1000 (LAN)
    • 3 x Audio I/O
    • 1 x D-Sub (VGA)
    • 1 x HDMI 2.1
    • 1 x Line In
    • 1 x Line Out
    • 1 x Mic-In
    • 1 x PS/2 Keyboard/Mouse Combo
    • 1 x S/PDIF-In (Optical)
    • 4 x USB 2.0
    • 2 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 211 mm
Note

Additional information

Weight 2 kg
CPU Socket Type

CPU Cooling Socket Support

Memory Form Factor

Memory Type

Motherboard Brand

Motherboard Category

Form Factor

Motherboard Socket Type

Motherboard Chipset
