Description

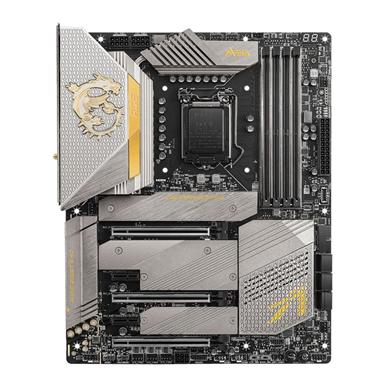

MEG Z590 ACE GOLD ED 11th Generation Intel ATX Motherboard from MSI
YOUR ACE IN THE HOLE
Ready to experience the future of gaming? As well as an element of prestige The MSI Z590 Ace GOLD Edition is here to support the very latest 11th Generation Intel processors; Bolstered with an arsenal of top-shelf features including; an extreme digital power design, outstanding cooling solution including an aluminium cover, VRM heatpipe, 7W/mK thermal pads, M.2 Frozr technologies and an aluminum backplate to ensure extreme performance with low temperatures, Dual TB4 ports, Quadruple M.2 connectors for maximum storage with one lightning PCIe 4.0 solution. Next generation connectivity is handled by an onboard 2.5G LAN and the latest Wi-Fi 6E support and in order to ensure maximum product longevity the motherboard itself has been fitted with an 8 layer PCB and a smart button to handle multiple forms of hardware control such as reset, safe boot, turbo fan and EZ LED control with a single click. The GOLD edition also features premium aesthetics with a platinum colour finish and genuine 24K-gold foil heatsink to perfectly redefine the concept of beauty. The MSI Z590 Ace GOLD Edition has what it takes to ensure you receive a high performance immersive gaming experience. Can you handle it?
Ready to experience the future of gaming? As well as an element of prestige The MSI Z590 Ace GOLD Edition is here to support the very latest 11th Generation Intel processors; Bolstered with an arsenal of top-shelf features including; an extreme digital power design, outstanding cooling solution including an aluminium cover, VRM heatpipe, 7W/mK thermal pads, M.2 Frozr technologies and an aluminum backplate to ensure extreme performance with low temperatures, Dual TB4 ports, Quadruple M.2 connectors for maximum storage with one lightning PCIe 4.0 solution. Next generation connectivity is handled by an onboard 2.5G LAN and the latest Wi-Fi 6E support and in order to ensure maximum product longevity the motherboard itself has been fitted with an 8 layer PCB and a smart button to handle multiple forms of hardware control such as reset, safe boot, turbo fan and EZ LED control with a single click. The GOLD edition also features premium aesthetics with a platinum colour finish and genuine 24K-gold foil heatsink to perfectly redefine the concept of beauty. The MSI Z590 Ace GOLD Edition has what it takes to ensure you receive a high performance immersive gaming experience. Can you handle it?
Intel Z590 Chipset
LGA 1200 CPU Socket
10th & 11th Gen Intel Compatible CPUs
ATX Form Factor
Special Features of the Z590 ACE GOLD ED
8-LAYER PCB DESIGN
Multi-layer printed circuity optimises power delivery increasing system stability and thermal efficiency.
Multi-layer printed circuity optimises power delivery increasing system stability and thermal efficiency.
DIGITAL PWM
The Ace uses the highest quality components with direct digital power, 90A SPS and titanium choke III making sure your system runs smoothly even under the most extreme conditions.
2OZ THICKENED COPPER
A 2oz thickened PCB provides an increase to performance and long-lasting system stability without any compromise.
PCIE STEEL ARMOR
Protecting VGA cards against bending and EMI for better performance, stability and strength.
Protecting VGA cards against bending and EMI for better performance, stability and strength.
SMART BUTTON
A simple button that offers multiple forms of hardware control with a single click.
A simple button that offers multiple forms of hardware control with a single click.
Next Generation Connectivity with MSI
2.5G LAN
Get ready to crush your enemies on the battlefield with MSI LAN Manager. Onboard 2.5G LAN delivers a supreme online experience without worrying about lag.
Get ready to crush your enemies on the battlefield with MSI LAN Manager. Onboard 2.5G LAN delivers a supreme online experience without worrying about lag.
DUAL THUNDERBOLT™ 4 PORTS
Brings Thunderbolt performance to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture to bring you incredible connectivity.
Brings Thunderbolt performance to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture to bring you incredible connectivity.
QUADRUPLE M.2 CONNECTORS
Onboard quadruple M.2 connectors for maximum storage performance with one Lightning Gen 4 solution.
Onboard quadruple M.2 connectors for maximum storage performance with one Lightning Gen 4 solution.
INTEL WI-FI 6E
The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
Premium Thermal Solution
ALUMINIUM COVER
A full coverage aluminium IO cover and extended heatsink design provide maximum surface area to ensure maximum heat dissipation efficiency.
A full coverage aluminium IO cover and extended heatsink design provide maximum surface area to ensure maximum heat dissipation efficiency.
M.2 FROZR
Onboard m.2 thermal solution helps to prevent throttling keeping your M.2 SSDs safe and allowing them to run at maximum performance.
Onboard m.2 thermal solution helps to prevent throttling keeping your M.2 SSDs safe and allowing them to run at maximum performance.
ALL ALUMINIUM BACKPLATE
The heavy and durable aluminium backplate provides additional cooling to your MOSFETs with it’s dedicated thermal pad.
The heavy and durable aluminium backplate provides additional cooling to your MOSFETs with it’s dedicated thermal pad.
HEATPIPE DESIGN
A heatpipe is used to connect the two MOS heatsinks to increase the overall surface of heat dissipation.
A heatpipe is used to connect the two MOS heatsinks to increase the overall surface of heat dissipation.
Unbelievable Power Solution
INTERSIL DIGITAL PWM
Unleash and sustain maximum performance with an aggressive VRM design built with a total of 16+2+1 digital power phases. Combining dual power connectors and exclusive Mirrored Power Arrangement, MEG series motherboards are ready for the challenge of high-end processors.
Unleash and sustain maximum performance with an aggressive VRM design built with a total of 16+2+1 digital power phases. Combining dual power connectors and exclusive Mirrored Power Arrangement, MEG series motherboards are ready for the challenge of high-end processors.
See Whats Under The Cover
The Future is Now
LIGHTNING GEN 4 SOLUTION
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.
Fast and Future Ready Storage
MAXIMUM STORAGE SUPPORT
The Z590 Ace GOLD Edition supports a staggering amount of onboard storage with support for the latest standards, which allows users to connect any ultra-fast storage device allowing you to access transfer speeds you only dreamed of.
The Z590 Ace GOLD Edition supports a staggering amount of onboard storage with support for the latest standards, which allows users to connect any ultra-fast storage device allowing you to access transfer speeds you only dreamed of.
Unmatched Memory Performance
ADVANCED PERFORMANCE WITH DDR4 BOOST
MSI motherboards are crammed with features to fuel your system’s memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds compared to other brands. Enjoy the additional boost in operational performance or when working with large video and photography files. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what.
MSI motherboards are crammed with features to fuel your system’s memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds compared to other brands. Enjoy the additional boost in operational performance or when working with large video and photography files. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what.
Protecting your PCIe Slots
FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR
MEG Z590 ACE GOLD Edition supports multiple GPU solutions. Optimal PCI-Express slot placement allows for better fitting and higher-quality airflow. That way, you can enjoy the best graphics at the highest framerates with the action jumping from your screen when running the NVIDIA® SLI™ and AMD® CrossFire™ setup. Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.
MEG Z590 ACE GOLD Edition supports multiple GPU solutions. Optimal PCI-Express slot placement allows for better fitting and higher-quality airflow. That way, you can enjoy the best graphics at the highest framerates with the action jumping from your screen when running the NVIDIA® SLI™ and AMD® CrossFire™ setup. Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.
Professional Gaming Audio
AMPLIFY YOUR GAME WITH AUDIO BOOST 5 HD
Like a dedicated sound card, Audio Boost 5 HD offers a premium audio processor, ESS audio DAC, dedicated amplifier and high quality audio capacitors all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy. Powered by ALC 4082 audio processor, this motherboards supports 120dB SNR, 32-bit/384kHz, delivers game-changing studio grade sound.
Like a dedicated sound card, Audio Boost 5 HD offers a premium audio processor, ESS audio DAC, dedicated amplifier and high quality audio capacitors all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy. Powered by ALC 4082 audio processor, this motherboards supports 120dB SNR, 32-bit/384kHz, delivers game-changing studio grade sound.
Next Generation Connectivity
WI-FI 6E SUPPORT
Use your LAN port for online gaming while using Wi-Fi for other online applications. The Wi-Fi 6E adopts latest OFDMA, two-way MU-MIMO technologies and 6GHz band, delivering wireless transmission speeds up to 2.4Gbps.
Specifications
Core Specifications
Edition
MEG Z590 ACE Gold Edition
Form Factor
ATX
CPU Socket
1200
Chipset
Intel Z590
RAM Memory Support
Memory Type
DDR4
Memory Channel
Dual (2)
Memory Type (ECC)
Non-ECC
Memory Type (R/U)
UDIMM (Unbuffered)
Memory Speed (Mhz)
- DDR4 – 2133n
- DDR4 – 2400
- DDR4 – 2666
- DDR4 – 2933
- DDR4 – 3000(OC)
- DDR4 – 3200(OC)
- DDR4 – 3300(OC)
- DDR4 – 3333(OC)
- DDR4 – 3400(OC)
- DDR4 – 3466(OC)
- DDR4 – 3600(OC)
- DDR4 – 3733(OC)
- DDR4 – 3866(OC)
- DDR4 – 4000(OC)
- DDR4 – 4133(OC)
- DDR4 – 4200(OC)
- DDR4 – 4266(OC)
- DDR4 – 4300(OC)
- DDR4 – 4400(OC)
- DDR4 – 4533(OC)
- DDR4 – 4600(OC)
- DDR4 – 4800(OC)
- DDR4 – 5000(OC)
- DDR4 – 5333(0C)
- DDR4 – 5600(OC)
Max. Memory Capacity
128GB
Audio
Audio
7.1 Channel HD Audio
Graphics Support
Primary GPU Interface
PCIe 4.0 (x16)
NVIDIA SLI Support
2-Way SLi
AMD CrossFire Support
3-Way CrossFire
Integrated Graphics
Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
HDMI 2.0b
Internal Connectivity
Expansion Slots
- 1 x M.2, 22-42/60/80, PCIe Gen3x4
- 2 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
- 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
- 2 x PCIe 3.0 x1
- 1 x PCIe 3.0 x16
- 2 x PCIe 4.0 x16
- 6 x SATA 6GB/s
SATA Support
SATA3
RAID Support via
SATA3 / M.2
Storage Mode Support
- Intel Optane Memory Ready
- RAID 0
- RAID 1
- RAID 10 (SATA only)
Internal I/O
- 1 x 24-pin (Power)
- 1 x 4-pin CPU Fan Connector
- 1 x 4-pin Water Pump Connector
- 1 x 6-pin PCIe (Power)
- 1 x 8-pin (Power)
- 1 x Chassis Intrusion connector
- 1 x Front Panel Audio Header
- 4 x M.2
- 6 x SATA III – 6Gb/s
- 6 x System Fan header
- 2 x System panel connector
- 1 x TPM Header
- 2 x USB 2.0 Header
- 1 x USB 3.2 Gen1 Header
- 1 x USB 3.2 Gen2 Header
External Connectivity
Network Interface Type
- 802.11ax WiFi LAN
- Wired 2.5 Gigabit LAN
Network Chip/Modules
- 1 x Intel Wi-Fi 6 AX210 (ax WiFi, BT5.2)
- 1 x Intel® I225V (2.5GbE LAN)
Rear I/O Connectors
- 1 x Central Speaker Out
- 1 x Clear CMOS Button
- 1 x Flash BIOS Button
- 1 x HDMI 2.0b
- 1 x Line In
- 1 x Line Out
- 1 x Mic-In
- 1 x Mini DisplayPort
- 1 x Rear Speaker Out
- 1 x RJ-45
- 1 x S/PDIF-Out
- 2 x Thunderbolt 4
- 2 x USB 2.0
- 4 x USB 3.2 Gen1 Type-A
- 2 x USB 3.2 Gen2 Type-A
Additional Specifications
Water Cooled
No
Cooling
QPI Speed
N/A
Board Dimensions
305 x 244 mm
