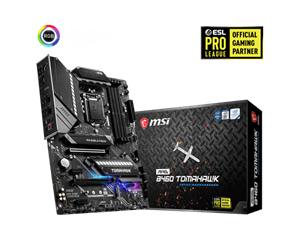

MSI MAG B460 TOMAHAWK MOTHERBOARD

Description

MSI MAG B460 TOMAHAWK

Meet the MSI MAG B460 TOMAHAWK, with exclusive features such as core boost technology, PCIe steel armour, Mystic Light and more. With a premium layout design, the MAG B460 is ready to unleash its maximum performance. Mystic light allows you to select from 16.8 million colours and 29 effects in just one click. For protection, PCIe steel armour protects your VGA cards against bending and EMI for increased performance, stability and strength. The highest quality component digital power IC makes sure your system runs smooth under the most extreme conditions.

Premium Thermal Solution
With an extended heatsink, M.2 Shield Frozr and more, the B460’s thermal solutions ensures your motherboard and its components are kept stable and secure. M.2 Shield Frozr keeps M.2 SSDs safe, heatsinks with 7W/mK thermal pad provides better heat transfer to the heatsink, and there is even pump fan support to control watercooling pump speeds.

High Speed Transition
Enjoy lightning fast speeds thanks to Turbo 2.0 with 2×2 M.2 slots, lightning 20G, DDR4 boost and more. Built-in USB 3.2 Gen 2×2 port offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1. With onboard 2.5G, Gigabits LAN with LAN manager, enjoy better online network experiences without lag.

Technical Specifications

• • Model Name: MAG B460 TOMAHAWK

• • CPU Support: Supports 10th Gen Intel® CoreTM and Pentium® Gold /Celeron®

• • processors

• • CPU Socket: LGA 1200 Socket

• • Chipset: Intel® B460 Chipset

• • Graphics Interface: 2x PCI-E 3.0 x16 slots | Support 2-way AMD® CrossFireTM Technology

• • Display Interface: DisplayPort, HDMI – Requires Processor Graphics

• • Memory Support: 4 DIMMs, Dual Channel DDR4-2933Mhz (Max.)

• • Expansion Slots 1x PCI-E 3.0 x1 slot

• • Storage: 2x M.2 slots, 6x SATA 6Gb/s

• • SATA RAID: RAID 0, 1, 5, 10 – Available on ports SATA1 to SATA6

• • USB ports: 1x USB 3.2 Gen 2×2 Type C | 2x USB 3.2 Gen 2 | 4x USB 3.2 Gen 1 + 6x USB 2.0

• • LAN: Intel® I219V 1G LAN

• • Realtek®: 8125B 2.5G LAN

• • Wireless / Buletooth Intel®: WiFi 6 AX200 + Bluetooth 5.1

• • Audio: 7.1 Channel HD Audio with Audio Boost (ALC1200)
