Description
Elevated Copper Plate
The unique curved copper plate is designed to fully cover the CPU while offering rapid heat dissipation.
Pump Motor Resonance Elimination
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
HIGH THERMAL DISSIPATION
The radiator has a 12 pathway designed to help rapidly dissipate heat.
EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
EXTENSIVE COMPATIBILITY

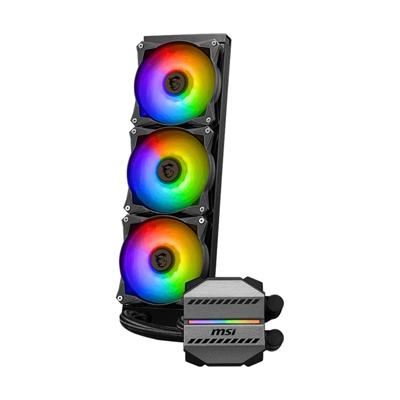

Stylish yet built for flexibility, the MAG CORELIQUID M360 has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.
Intel Socket
LGA 1150/1151/1155/1156/1200/1700
LGA 2011/2011-3/2066
AMD Socket
AM5/AM4/TR4
| SPECIFICATIONS | |
| Brand | MSI |
| Series | MAG CoreLiquid M Series |
| Model | CoreLiquid M360 Black |
| Fans | |
| Number Of Fans | 3x fans |
| Dimensions | 120 x 120 x 25mm |
| Fan Speed | N/A |
| Fan Power Consumption | 4.2W (each) |
| Fan Rated Current | 0.35 A |
| Fan Rated Voltage | 12V DC |
| Fan Bearing | Dual Ball Bearing |
| Fan Air Pressure | N/A |
| Fan Noise Level | N/A |
| Fan Air Flow | 21.63 – 78.73 CFM |
| Fan Lighting | 3-Pin 5V ARGB |
| Fan ARGB Cable Connector | Pin and Socket |
| PWM Mode | Yes |
| Fan Cable Length (5V ARGB / PWM CABLE) | 350mm |
| Radiator | |
| Radiator Material | Aluminum |
| Radiator Dimensions | 397 x 120 x 27mm (L x W x D) |
| Radiator Pipe Length | N/A |
| CPU Block | |
| Block Dimensions | 67.26 x 59.95 x 55.9mm (W x D x H) |
| Block Lighting | 3-Pin 5V ARGB |
| Block ARGB 5V Cable Length | N/A |
| Block ARGB Cable Connector | Pin and Socket |
| Pump Specifications | |
| Pump Load Current | 0.38 A |
| Pump Rated Voltage | 12V DC |
| Pump Speed | 3100 RPM ± 10% |
| Pump Power Consumption | 4.56W |
| Pump Connector | 3-Pin 12V |
| General | |
| Colour | Black |
| Socket Compatibility | Intel LGA 1700 / 115x / 1200 / 20xx |
| AMD Socket AM5 / AM4 | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
