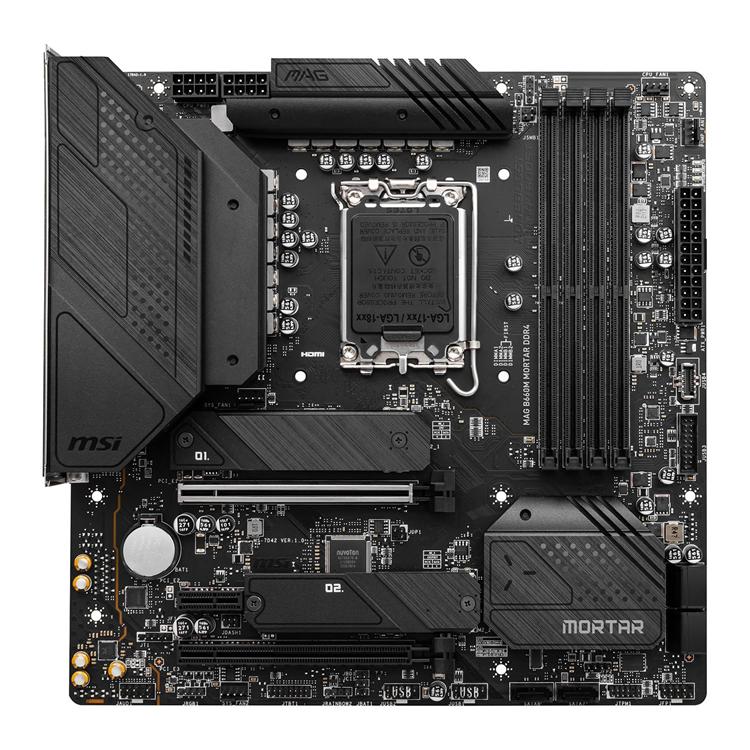

MAG B660M MORTAR DDR4 Intel 12th Gen Micro-ATX Motherboard from MSI
Take a step into the future. MSI have returned with the MAG B660 series motherboards here to support the very latest 12th Generation Intel processors; boasting the brand new Intel 1700 LGA. The MAG B660M MORTAR DDR4 is a gaming oriented micro-ATX motherboard constructed around the latest Intel B660 chipset that balances value with cutting-edge hardware. The B660M Mortar DDR4 features PCIe 4.0 technology, Dual Gen4 M.2 support, lightning 20G USB connectivity, Core & DDR4 Memory boosts, a thorough cooling solution with extended heatsinks with thermal pads, onboard M.2 Shield Frozr and a fully comprehensive rear I/O. The B660M Mortar Wi-Fi combines all of these features with incredible durability and stunning aesthetics to squeeze every ounce of performance from your new CPU. Heed the call of the next-generation with MSI.
Intel B660 Chipset
LGA 1700 CPU Socket
12th generation Intel Compatible CPUs
mATX Form Factor
Exclusive Features of the MAG B660M MORTAR DDR4
With a premium layout design, that is ready for unleashing the maximum performance.
Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.
6 layer PCB provides higher performance and long-lasting system stability without any compromise.
Protecting VGA cards against bending and EMI for better performance, stability and strength.
Premium Thermal Solution
MSI extended heatsink and enhanced circuit design ensure even high-end processors to run in full speed.
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Control watercooling pump speeds for best flow and noise control.
The 7W/mK thermal pad provides better heat transfer to the heatsink.
Next Generation Connectivity with MSI
Featuring premium 2.5G LAN with LAN manager delivers better network experience.
The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.
The latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
Built-in USB 3.2 Gen 2×2 port, offers the 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
Experience The Boundaries Of Modern Performance<
The MAG B660M MORTAR DDR4 motherboard supports 12th Gen Intel Core, Pentium Gold, and Celeron processors.
Aggressive Power Design
1 PHASEGT Power
1 PHASEAUX Power
DIGITAL PWM IC
12+1+1 DUET RAIL POWER SYSTEM
With its dual 8-pin power connectors and exclusive Core Boost Technology, The MAG B660M MORTAR DDR4 is able to sustain heavy CPU power loads to support system-demanding game settings
Experience Core Boost
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU.
The Next Generation
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimised by steel armor design and server grade PCB, you can enjoy next-gen devices without any compromise.
Fast and Future-Ready Storage
GEN4 M.2 CONNECTORS
MSI B660 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
Specifications
Core Specifications
Edition
MAG B660M MORTAR DDR4
Form Factor
ATX
CPU Socket
1700
Chipset
Intel B660
RAM Memory Support
Memory Type
DDR4
Memory Channel
Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz)
DDR4 – 4800(OC)
Max. Memory Capacity
128GB (4x32GB)
Audio
Audio
8-Channel(7.1) HD Audio with Audio Boost
Graphics Support
Primary GPU Interface
PCIe 4.0 (x16)
NVIDIA SLI Support
Not Supported
AMD CrossFire Support
Supported
Integrated Graphics
Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
- DisplayPort 1.4
- HDMI 2.1
Internal Connectivity
Expansion Slots
- 2 x M.2, 22-42/60/80, PCIe Gen4x4
- 1 x PCIe 3.0 x1
- 1 x PCIe 3.0 x16
- 1 x PCIe 4.0 x16
- 6 x SATA 6GB/s
SATA Support
SATA3 / M.2
RAID Support via
Storage Mode Support
Internal I/O
6 x SATA III – 6Gb/s
External Connectivity
Network Interface Type
Wired 2.5 Gigabit LAN
Network Chip/Modules
1 x Realtek RTL8125 (2.5G LAN)

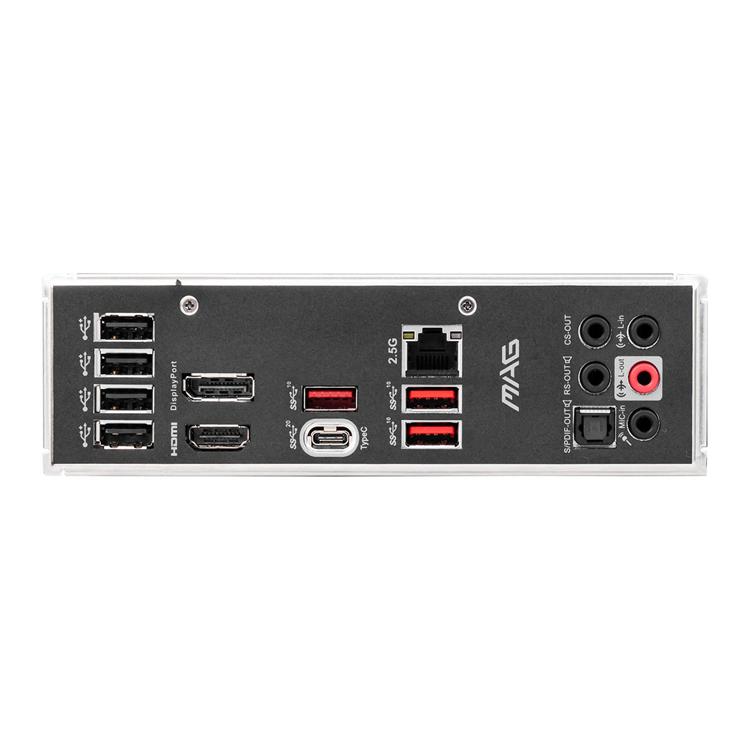

Rear I/O Connectors
- 1 x Central Speaker Out
- 1 x DisplayPort 1.4
- 1 x Flash BIOS Button
- 1 x HDMI 2.1
- 1 x Headphone-Out
- 1 x Line Out
- 1 x Mic-In
- 1 x Rear Speaker Out
- 1 x RJ-45
- 1 x S/PDIF (Optical)
- 1 x S/PDIF-Out (Optical)
- 4 x USB 2.0
- 3 x USB 3.2 Gen2 Type-A
- 1 x USB 3.2 Gen2x2 Type-C
- 1 x WiFi 802.11ax 6E / Bluetooth 5.2
