Description
Features
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 5200(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN and Intel® Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe based SSDs
- Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™
Compatibility
Intel® Processor Support:
This MSI Motherboard supports 12th Gen Intel® Core™ Processors for Socket LGA-1700.
Operating System Support:
Windows® 11
Specifications
| Make and Model | MSI MAG Z690 TOMAHAWK WIFI DDR4 Motherboard |
|---|---|
| CPU Support | Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Processor socket LGA1700 See supported processors |
| Chipset | Intel® Z690 Chipset |
| Memory | 4 x DDR4 memory slots, support up to 128GB Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Max. overclocking frequency:
Supports Dual-Channel mode |
| Integrated Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz * Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Storage |
|
| Expansion Slots |
|
| Multi-GPU Support | Supports AMD® CrossFire™ Technology |
| USB Ports | Intel® Z690 Chipset 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel 4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector, 3 Type-A ports on the back panel) 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal connector) 1x USB 2.0 Type-A port on the back panelUSB Hub-GL850G 5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors) |
| LAN | Intel® I225V 2.5Gbps LAN controller |
| Wireless | Intel® Wi-Fi 6 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Bluetooth | Supports Bluetooth v5.2 |
| Audio | Realtek® ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |

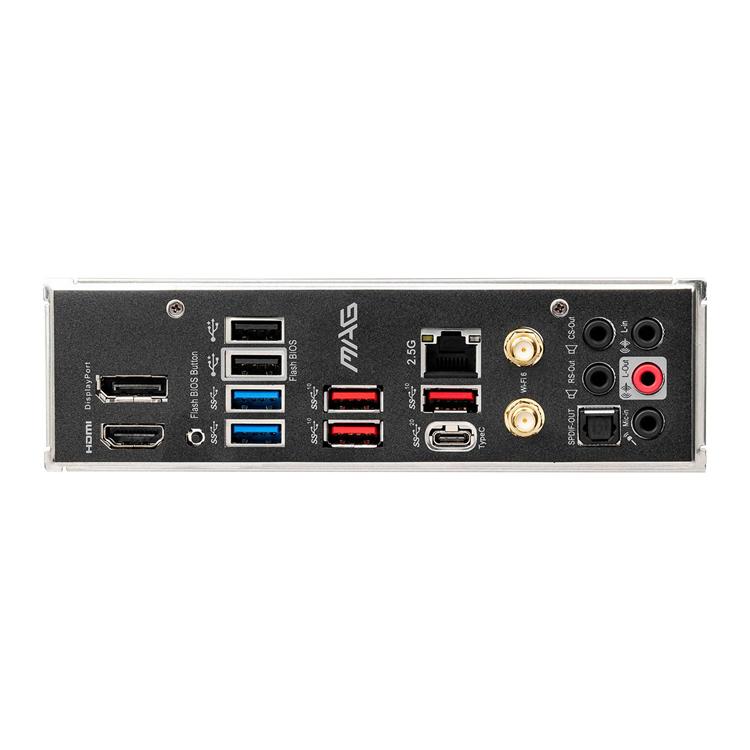

| Back Panel I/O Ports | DisplayPort 1.4 USB 2.0 Port USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI 2.1 Port Flash BIOS Button USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2 10Gbps Type-A USB 3.2 Gen 2×2 20Gbps Type-C Optical S/PDIF OUT |
| Internal I/O | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector |
| Operating System | Windows® 11, 64 bit, Windows® 10, 64 bit |
| Form Factor | ATX Form Factor: 30.5 x 24.4 cm (12″ x 9.6″) |
Package Contents

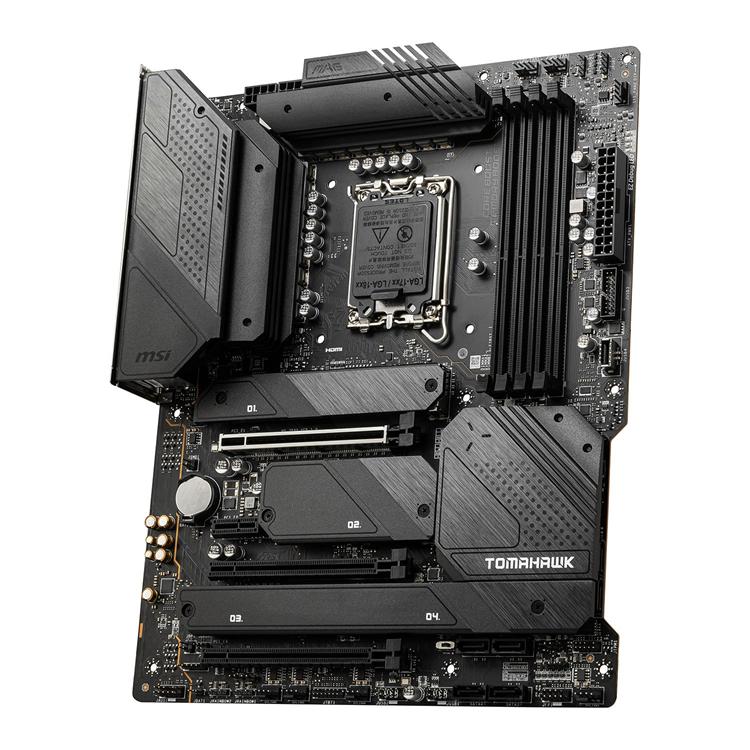

- MSI MAG Z690 TOMAHAWK WIFI DDR4 ATX Motherboard
- 2 x SATA Cables
- Wi-Fi Antenna
- EZ M.2 Clip
- USB Drive
- MAG Sticker(s)
- Case Badge
- Registration Card
- Product Catalog
- Quick Installation Guide
- User Manual
