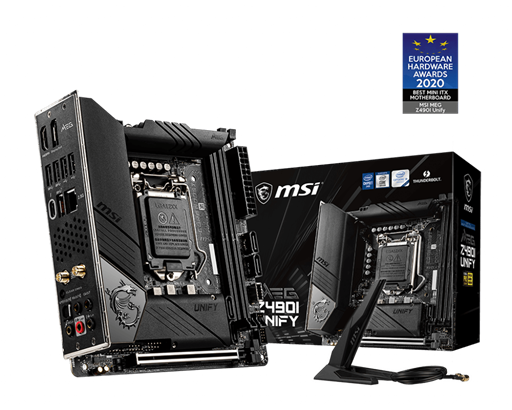

MSI MEG Z490I UNIFY MOTHERBOARD

Description

MSI MEG Z490I UNIFY Motherboard

Exclusive Features
The MEG Z490I UNIFY features outstanding cooling solutions, unlimited connectivity and more to be the stable cornerstone of your new gaming system. Featuring the latest Wi-Fi 6 solution and 2.5G LAN – it’s never been quicker!

With Frozr Heatsink Design and Zero Frozr Technology, the active cooling solution is ready to release it’s maximum performance. Onboard M.2 Shield Frozr keeps M.2 SSD’s nice stable, to prevent throttling, and make them run cooler and faster! The aluminium cover also helps with cooling by providing the maximum surface of heat dissipation.
Premium Thermal Solution
Extreme Power Design

• • ISL Digital PWM, Direct 8 Phases with 90A SPS and dual CPU power connectors to unleash your true power!

2.5G LAN

• • With 2.5G LAN, enjoy the best online gaming experience.

WiFi 6

• • The latest wireless solution delivers speeds up to 2400Mbps.

Aluminium Cover

• • A fully aluminium cover is ready for breaking the world record- it provices the maximum surface of heat dissipation!

Technical Specifications

CPU

• • Supports 10th Gen Intel Core and Pentium Gold/Celeron processors.

Socket

• • LGA 1200

Chipset

• • Intel® Z490 Chipset

Graphics Interface

• • 1 x PCIe 3.0 x 16

Display Interface

• • thunderbolt 3 (Type-C), DisplayPort 1.4, HDMI – Requires processor graphics

Memory

• • 2 x DIMM | Dual Channel DDR4-5000MHz(OC)

Storage

• • 2 x Turbo M.2 32GB/s slots, supports Intel Optane Technology | 4 x SATA 6Gb/s

USB

• • 3 x USB 3.2 Gen 2 10Gbps (1 Type A + 2 Type-C), 4 x USB 3.2 Gen 1 5Gbps (Type-A), 4 x USB 2.0

LAN

• • Realtek 8125B 2.5G LAN

WiFi/BT

• • Intel WiFi 6 AX201, Bluetooth 5.1

Audio

• • 8-channel(7.1) HD Audio with Audio Boost

Mini-ITX

Specifications

Socket	Intel Socket 1200
Chipset	Intel Z490
Memory slots	2x DDR4
Memory Slot Support	Up to 64GB Memory Support
SATA Ports	4x SATA 6Gb/s
Internal USB Connectors	3 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, 4 x USB 2.0
M.2 Slot	2x M.2
DisplayPort Connector	1 x DisplayPort
HDMI Connector	1 x HDMI Port
Thunderbolt Ports	1x Thunderbolt
PCI-E x16 slot	1x PCI-E X16
Form Factor	Mini-ITX
NVIDIA SLI/AMD CrossFire	NVIDIA SLI/AMD CrossFire

Please note:
Pictures are for illustration only. Please contact us if you wish to confirm the specification before ordering.
