Description

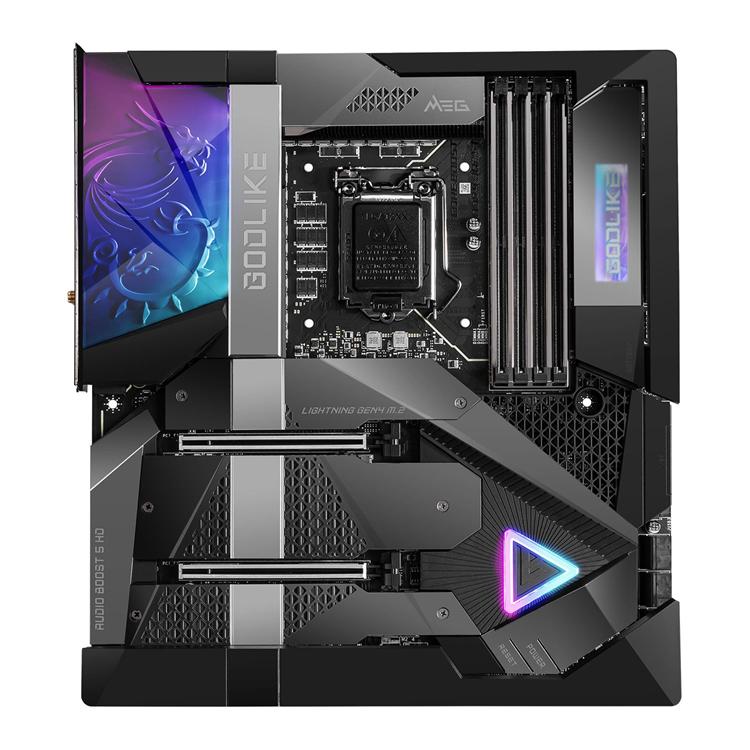

MSI MEG Z590 GODLIKE – One Board To Rule Them All
Features
-
- Direct 20 Phases with 90A SPS
INTERSIL digital PWM, direct 20 phases with 90A Smart Power Stage, Titanium Choke Ill and dual CPU power connectors to unleash the maximum performance.
- Direct 20 Phases with 90A SPS
-
- Quadruple M.2 Connectors
Onboard quadruple M.2 connectors for the maximum storage performance with one Lightning Gen 4 solution.
- Quadruple M.2 Connectors
-
- Premium Thermal Module
Wavy fin design, 8mm heatpipe, 7W/mK thermal pads, Frozr Heatsink and Aluminum backplate ensure the extreme performance with low temperature.
- Premium Thermal Module
-
- Dual Thunderbolt™ 4 Ports
Thunderbolt™ 4 brings Thunderbolt to USB-C at true 40 Gb/s speeds, SK display support, Daisy-Chaining and Multi-Port Accessory Architecture.
- Dual Thunderbolt™ 4 Ports
-
- Dynamic Dashboard II
A colorful OLED panel indicates the status of your GODLIKE and shows off your own personality.
- Dynamic Dashboard II
-
- 10G Super LAN
Next level network speed, secure networking with fastest data throughput to improve efficiency.
- 10G Super LAN
-
- Smart Button
Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click.
- Smart Button
-
- 8 Layers PCB with 2oz Thickened Copper
An Enhanced PCB design provides higher performance and long lasting system stability without any compromise.
- 8 Layers PCB with 2oz Thickened Copper
-
- Double Side M.2 Shield Frozr
Double side M.2 thermal solution to keep M.2 SSDs safe while preventing throttling, making them run cooler & faster.
- Double Side M.2 Shield Frozr
Compatibility
Operating System Support:
Requires Windows® 10, 64 bit
Specifications
| Make and Model | MSI MEG Z590 GODLIKE ATX Motherboard |
|---|---|
| CPU | Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1 Supports processor socket LGA1200 1. Please go to intel.com for compatibility information. |
| Chipset | Intel® Z590 Chipset |
| Memory | 4x DIMMs, Dual Channel DDR4-5600 MHz (OC), 128GB max. Supports Dual-Channel mode Supports non-ECC mode, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) 1. Please refer www.msi.com for more information on compatible memory. |
| Expansion Slots | 2x PCle 4.0 xl6 slots 1x PCle 3.0 xl6 slot |
| Multi-GPU Support | Support 2-way NVIDIA® SLI™ Technology / 3-way AMD® Crossfire™ Technology |
| Onboard Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
| Storage | 1x M.2 Gen4 x4 64Gb/s slot 3x M.2 Gen3 x4 32Gb/s slots Supports Intel® Optane™ Technology 6x SATA 6Gb/s ports Supports RAID 0, RAID1, RAID 5 and RAID 10 |
| USB | 3x USB 3.2 Gen 2 l0Gbps (2 Type-A + 1 Type-C) 10x USB 3.2 Gen 1 5Gbps (10 Type-A) 4x USB 2.0 |
| LAN | 1x Aquantia® AQC107 10Gbps LAN 1x Intel® I225-V 2.5Gbps LAN |
| Wireless Communication | Intel® AX210 + Bluetooth v5.2 |
| Audio | 8-Channel (7.1) HD Audio with Audio Boost 5 HD |
| Display Interface | 2x Thunderbolt™ 4 (Type-C) Input from mini DisplayPort |
| Thunderbolt™ 4 | 2x USB Type-C up to 40G Charging support up to 5V/3A, 15W 2x Mini DisplayPort input ports |

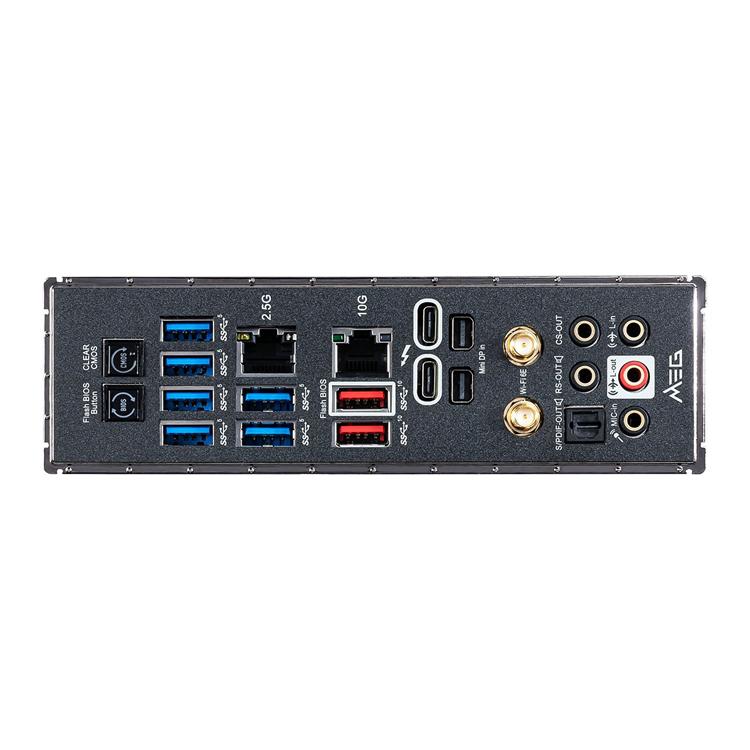

| Back Panel I/O | TBA |
| Internal I/O Connectors | TBA |
| Operating System | Supports Windows® 10 64-bit |
| Form Factor | ATX Form Factor |
| Dimensions (LxW) | N/A |
| Weight | N/A |
