R8414.00 Incl. Vat
(Displayed price above applies to EFT / Bank Transfer payments only.)
KEY FEATURES:
– ATX Motherboard with AMD X870E chipset & AM5 socket
– Supports AMD Ryzen 7000 / 8000 / 9000 Series CPUs
– Supports DDR5 up to 8400+ MHz (OC), up to 256GB, AMD EXPO ready
– Expansion Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
– Storage: 4x M.2 (2x PCIe 5.0 / 2x PCIe 4.0), 6x SATA 6Gb/s
– USB Ports: 1x USB4 40Gbps Type-C, 1x USB 20Gbps Type-C, multiple USB 10Gbps & 5Gbps
– Networking: 5Gb LAN + WiFi 7 + Bluetooth 5.4
– Audio: Audio Boost 5, 7.1 HD Audio
– Power Design: 14+2+1 Duet Rail with 80A Smart Power Stages
– Cooling: Extended heatsinks, heatpipe design, M.2 Shield Frozr
– Extra Features: EZ Debug LED, BIOS Flashback, EZ PCIe Release, Mystic Light RGB
– Warranty: 3 Years

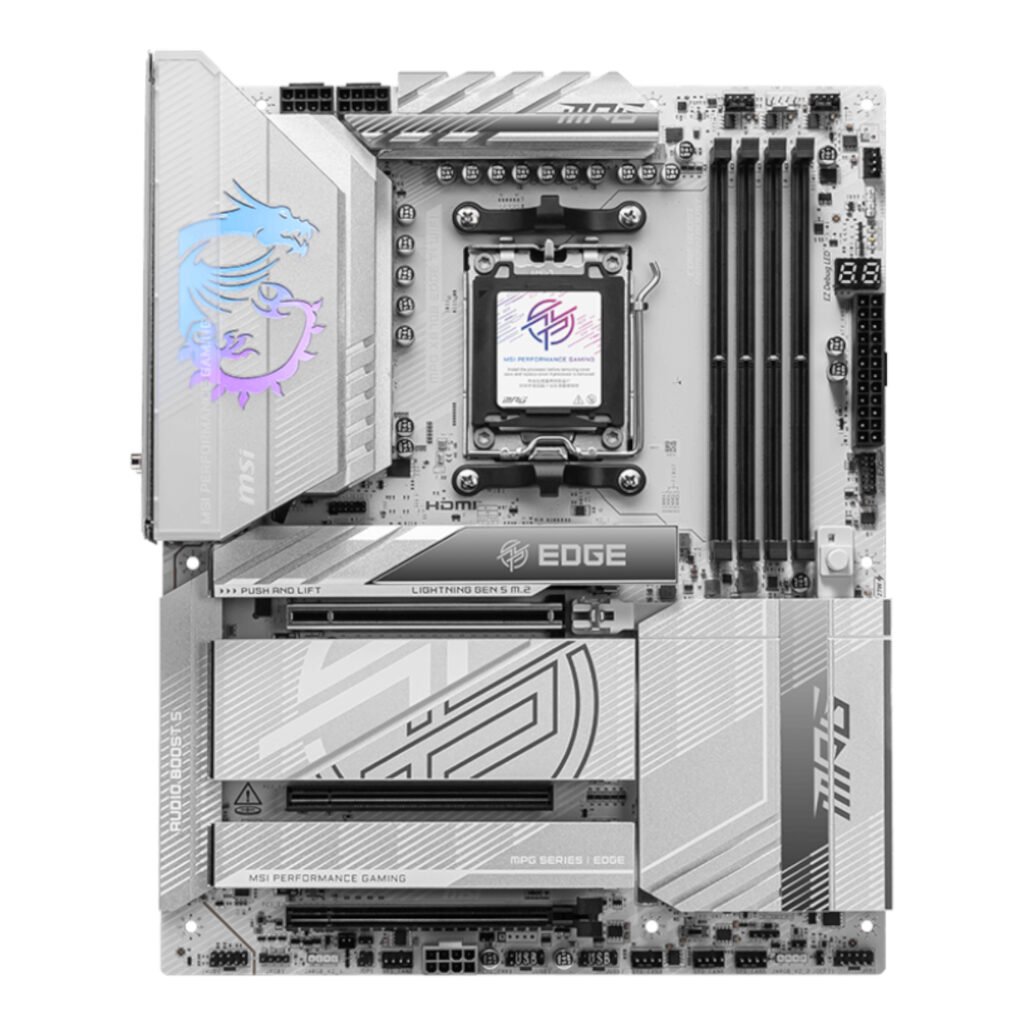

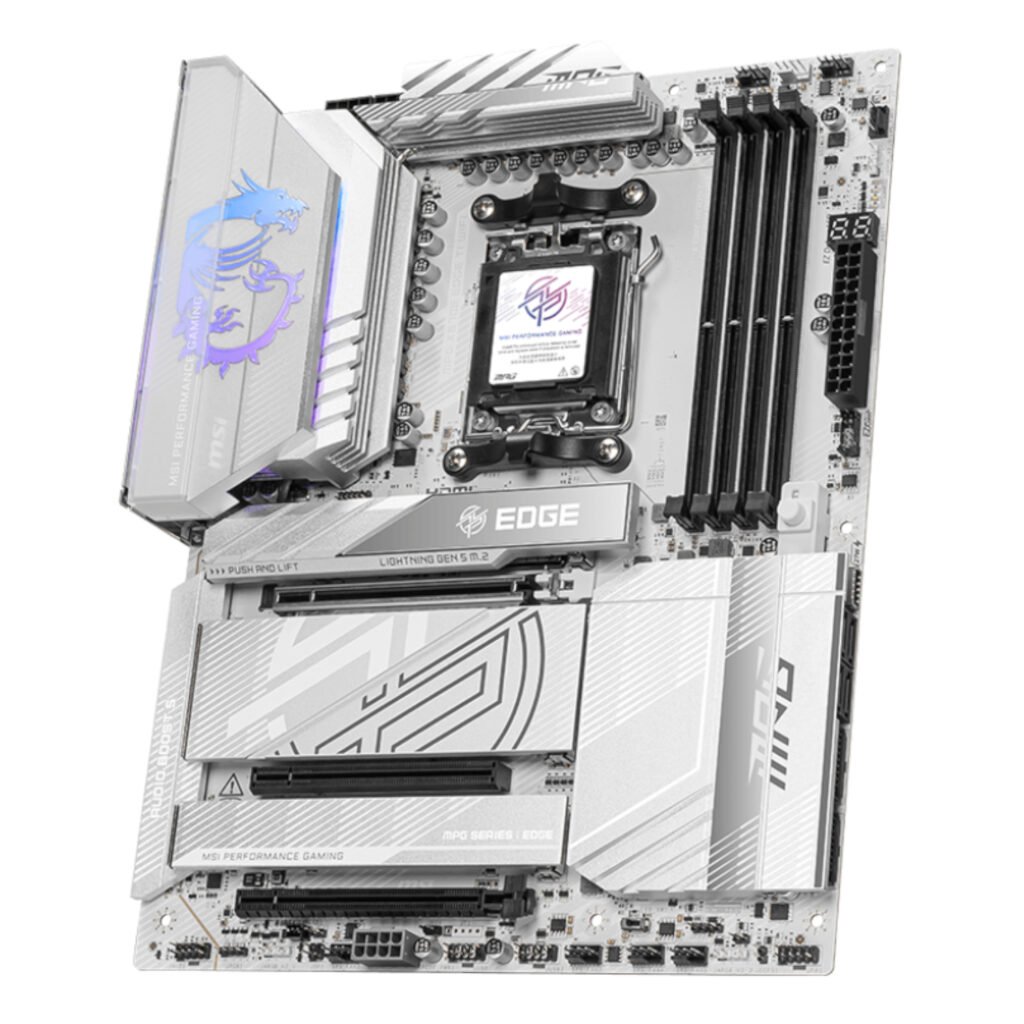

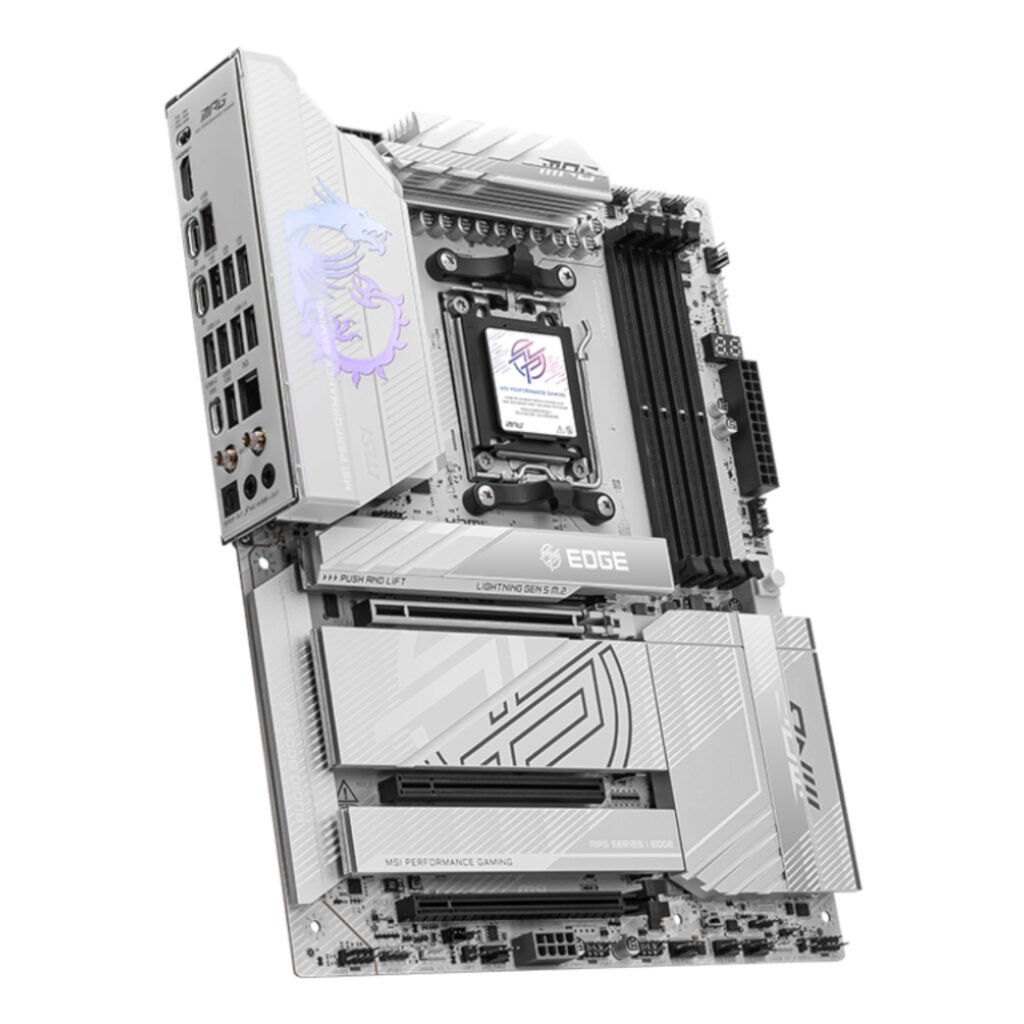

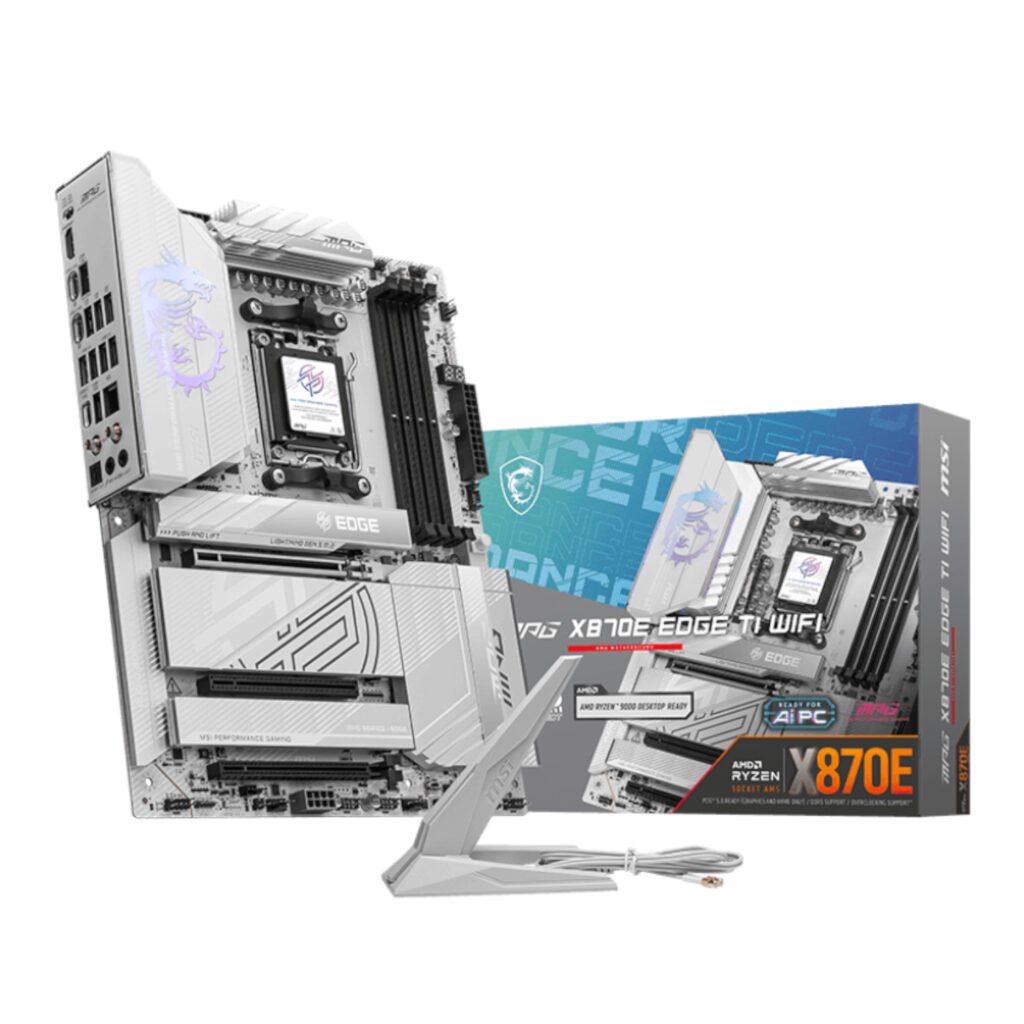

The MSI X870E EDGE TI WIFI AM5 ATX DDR5 Gaming Motherboard is the ultimate choice for gamers and PC enthusiasts seeking a premium white-themed build with cutting-edge performance. Part of the MSI MPG (MSI Performance Gaming) Series, this motherboard blends sleek, modern aesthetics with top-tier engineering to support the latest AMD Ryzen™ 9000, 8000, and 7000 Series processors. With Wi-Fi 7, 5G LAN, USB 4.0, and full PCIe 5.0 compatibility, it delivers blazing-fast connectivity and next-gen speed for gaming and content creation. The silver-white design makes it a showstopper in any build, while Mystic Light RGB control allows you to create a custom lighting setup with millions of colors and effects.
Engineered for enthusiasts, the MSI X870E EDGE TI WIFI features EZ DIY tools like EZ PCIe Release, EZ M.2 Clip II, and EZ Antenna, ensuring effortless component installation and upgrades. With EZ M.2 Shield Frozr II, installing or removing SSDs is tool-free and hassle-free, while the pre-installed I/O shield guarantees a smooth and secure fit during assembly. Designed with professionals and power users in mind, this motherboard supports USB 40Gbps Type-C, multiple high-speed USB ports, and ultra-fast Lightning Gen 5 M.2 storage, making it ideal for large data transfers and high-performance workflows.
The 14+2+1 Duet Rail Power System with 80A Smart Power Stages ensures stable overclocking and reliable power delivery, even under heavy gaming or rendering workloads. With dual 8-pin CPU connectors, enlarged heatsinks with heat-pipes, and MOSFET thermal pads rated at 7W/mK, the board keeps your system cool while pushing the limits of DDR5 memory speeds up to 8400+ MT/s (OC). MSI Memory Boost technology and the optimized PCB design enhance bandwidth, reduce latency, and maximize stability, making it perfect for demanding applications, eSports, and streaming.
Connectivity and audio performance are equally impressive with Realtek ALC4080 codec, 7.1-channel HD sound, and Audio Boost 5 for an immersive gaming experience. With support for 4 x M.2 slots, RAID 0/1/10, HDMI, and dual Type-C display outputs, this ATX motherboard is future-proof for both gaming and professional setups. The MSI X870E EDGE TI WIFI sets a new benchmark for performance, aesthetics, and usability, making it the best white X870E ATX DDR5 gaming motherboard for high-end Ryzen builds.
| Make and Model | MSI MPG X870E EDGE TI WIFI |
|---|---|
| Part Number | MPG X870E EDGE TI WIFI |
| Color | White |
| Chipset | AMD X870E |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8400 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/sSupports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. |
| Onboard Graphics | 1x HDMI™ Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
| Audio | Realtek® ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on front panel Supports S/PDIF output |
| Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6GM.2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2 slot |
| RAID | •Supports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 5x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear) |
| LAN | 1x Realtek® 8126 5G LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| Wireless LAN & Bluetooth | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/b/g/n/ac/ax/beSupports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. |
| LED Feature | 4x EZ Debug LED 1x EZ Digi-Debug LED |

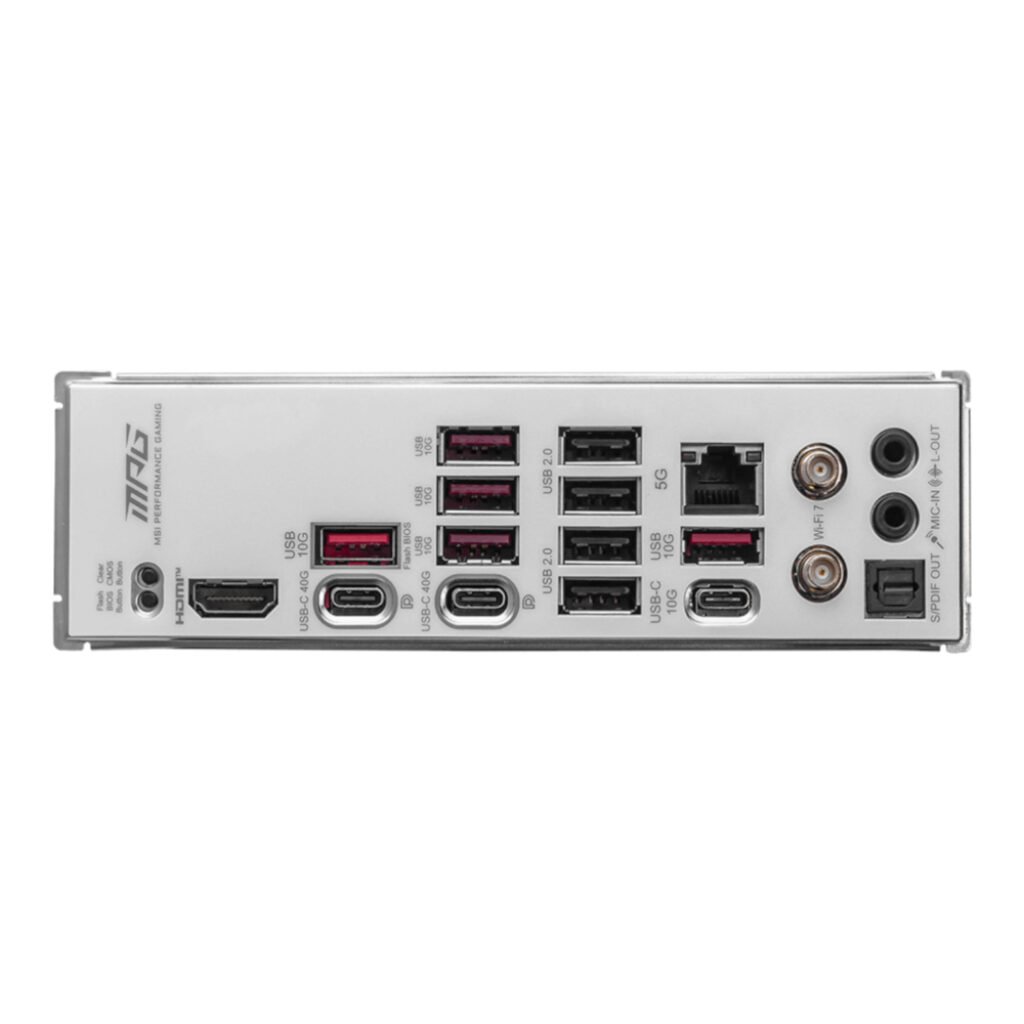

| Back Panel Ports | 1 x Clear CMOS Button 4 x USB 10Gbps Type-A 3 x USB 2.0 1 x 5G LAN 2 x Wi-Fi / Bluetooth 2 x Audio Connectors 1 x Flash BIOS Button 1 x HDMI™ 2 x USB 40Gbps Type-C 1 x USB 10Gbps Type-A 1 x USB 10Gbps Type-C 1 x Optical S/PDIF Out |
| Operating System | Support for Windows® 11 64-bit |
| Form Factor | ATX 243.84 x 304.8 mm |
| Weight | N/A |
| Motherboard Brand | |
|---|---|
| Motherboard Category | |
| Motherboard Chipset | |
| Motherboard Form Factor | |
| Motherboard Ram Support | |
| Motherboard Socket Type |
