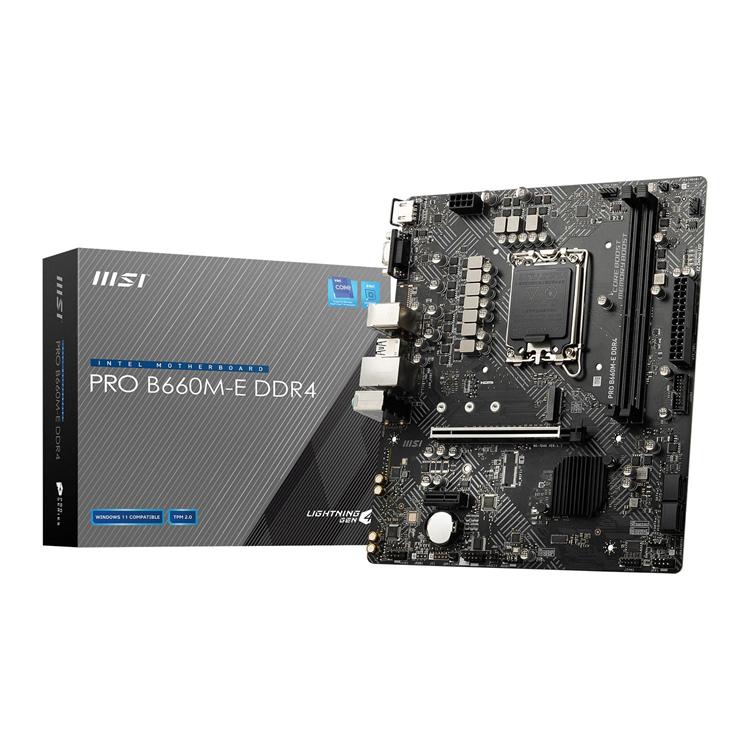

PRO B660M-E DDR4 Intel 12th Gen M-ATX Motherboard from MSI
BUSINESS ORIENTED DESIGN
MSI have returned with the Pro B660 series motherboards here to support the very latest 12th Generation Intel processors; boasting the brand new Intel 1700 LGA. The PRO B660M-E DDR4 is a business-oriented micro-ATX motherboard featuring the latest Intel B660 chipset and a plethora of technologies designed to keep you working at peak performance. The PRO B660M-E DDR4 features PCIe 4.0 technology, Gen3 M.2 support, Core & DDR4 Memory boosts, Frozr AI cooling, EZ Debug LEDs and a fully comprehensive rear I/O. The PRO B660M-E DDR4 combines all of these features with incredible durability and stunning aesthetics, creating the perfect motherboard for daily usage and PC enthusiasts.Intel B660 Chipset
MSI have returned with the Pro B660 series motherboards here to support the very latest 12th Generation Intel processors; boasting the brand new Intel 1700 LGA. The PRO B660M-E DDR4 is a business-oriented micro-ATX motherboard featuring the latest Intel B660 chipset and a plethora of technologies designed to keep you working at peak performance. The PRO B660M-E DDR4 features PCIe 4.0 technology, Gen3 M.2 support, Core & DDR4 Memory boosts, Frozr AI cooling, EZ Debug LEDs and a fully comprehensive rear I/O. The PRO B660M-E DDR4 combines all of these features with incredible durability and stunning aesthetics, creating the perfect motherboard for daily usage and PC enthusiasts.Intel B660 Chipset
LGA 1700 CPU Socket
12th generation Intel Compatible CPUs
M-ATX Form Factor
Key Features of the B660M-E DDR4
CORE BOOST
With premium layout and digital power design to support more cores and provide better performance.MEMORY BOOST
The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.
With premium layout and digital power design to support more cores and provide better performance.MEMORY BOOST
The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.
LIGHTNING GEN 4
The Gen 4 PCI-E solution with up to 64GB/s bandwidth for maximum transfer speed.
AUDIO BOOST
Reward your ears with studio grade sound quality for the most immersive gaming experience.
SUPPORTS INTEL CORE 12TH GEN PROCESSORS
The PRO B660M-E DDR4 motherboard supports 12th Gen Intel Core, Pentium Gold, and Celeron processors.-
Experience Core Boost
FASTER AND UNDISTORTED CURRENT DELIVERY
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU.
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU.
The Next Generation
FORTIFIED PCI-E 4.0 X16
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimised by steel armor design and server grade PCB, you can enjoy next-gen devices without any compromise.
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimised by steel armor design and server grade PCB, you can enjoy next-gen devices without any compromise.
Maximise Your Storage
1X PCIE 3.0 M.2
MSI B660 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
MSI B660 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
Maximise Your Memory
2 X DDR4 DUAL CHANNEL MEMORY
A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB tested and can be easily enabled with auto power settings for optimised memory speed and stability.
SPECIFICATIONS |
|
| Brand | MSI |
| Series | PRO Series |
| Model | PRO B660M-G DDR4 |
| CPU | Supports 12th Gen Intel Core, Pentium Gold, and Celeron processors |
| Processor Socket LGA 1700 | |
| Chipset | Intel B660 Chipset |
| Memory | 2 x DDR4 Memory Slots, Support Up to 64GB |
| Supports ADL-s 1R 2133 / 2666 / 2933 / 3200MHz | |
| 1DPC 1R Max speed up to 4600 MHz | |
| 1DPC 2R Max speed up to 4000 MHz | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports Intel Extreme Memory Profile (XMP) | |
| Expansion Slots | |
| CPU Native | 1 x PCIe 4.0 x16 Physical, x16 Electrical |
| Chipset | 1 x PCIe 3.0 x1 Physical, x1 Electrical |
| Multi-GPU | N / A |
| Graphics | |
| On-Board Graphics | 1 x HDMI 2.1 with HDR, maximum resolution of UltraHD 4K (3840 x 2160) @ 60Hz |
| 1 x VGA S-Sub, maximum resolution of 2048 x 1536 @ 50Hz, 2048 x 1280 @ 60Hz, 1920 x 1200 @ 60Hz | |
| Storage | |
| Chipset | 1 x PCIe 4.0 x4 M.2 Key M, supports M.2 2242 / 2260 / 2280 devices |
| 4 x SATA 6GB/s ports (Supports RAID 0 / 1 / 5 / 10) | |
| Intel Optane Memory Ready | |
| Connectivity | |
| USB | Intel B560 Chipset |
| 2 x USB 3.2 Gen 1 5Gbps Type-A ports (Rear I/O) | |
| 2 x USB 3.2 Gen 1 5Gbps Type-A ports (internal connector) | |
| 2 x USB 2.0 Type-A ports (internal connector) | |
| Genesys Logic GL850G | 4 x USB 2.0 ports (Rear I/O) |
| Audio | Realtek ALC892/896 Codec |
| 7.1-Channel High Definition Audio | |
| LAN | 1 x Intel I219V Gigabit LAN Controller |
| Ports & Connectors | |
| Internal Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 4 x SATA 6Gb/s connectors | |
| 1 x USB 2.0 connector (support additional 2 USB ports) | |
| 1 x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports) | |
| 1 x 4-pin CPU fan connector | |
| 1 x 4-pin system fan connector | |
| 1 x Front panel audio connector | |
| 2 x System panel connectors | |
| 1 x Serial port connector | |
| 1 x TPM module connector | |
| 1 x Chassis Intrusion connector | |
| 1 x Clear CMOS jumper | |

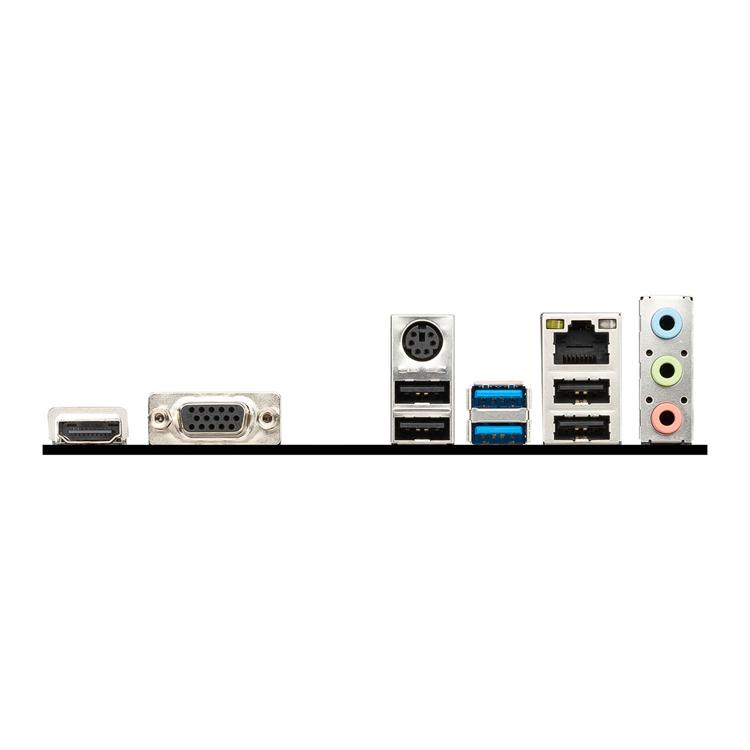

| Back Panel Ports | 4 x USB 2.0 Type-A |
| 1 x RJ-45 Gigabit LAN Port | |
| 3 x 3.5mm HD Audio Connectors | |
| 1 x HDMI | |
| 1 x VGA D-Sub | |
| 2 x USB 3.2 Type-A Gen 1 5Gbps | |
| 1 x PS/2 Port | |
| LED Features | |
| On-Board | 4 x EZ Debug LED |
| 1 x 4-pin RGB LED connectors | |
| 2 x 3-pin RAINBOW LED connectors | |
| General | |
| Dimensions | Micro-ATX, 244 x 211 mm |
| Box Contents | 1 x MSI PRO B660M-E DDR4 Motherboard |
| 2 x SATA cables | |
| MSI EZ M.2 clips | |
| Driver DVD | |
| Quick installation guide | |
| Product registration card | |
| MSI Case Badge | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
