Description

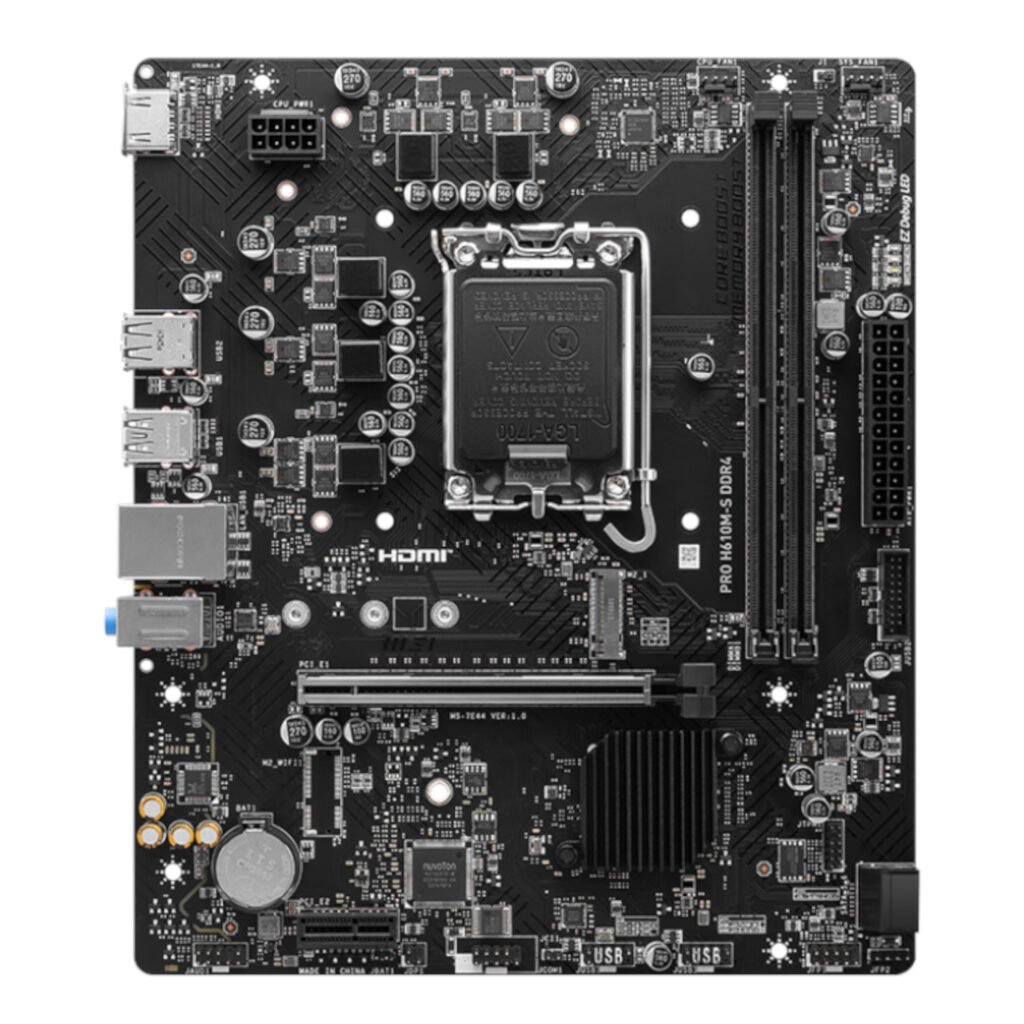

ModelPRO H610M-S DDR4
Built for stability, efficiency, and seamless professional productivity, the MSI H610M-S PRO LGA1700 Motherboard is the foundation of your next high-performance desktop build. Designed to support Intel® 14th, 13th, and 12th Gen Core™, Pentium® Gold, and Celeron® processors, this micro-ATX motherboard balances powerful features with everyday reliability, making it the ideal choice for system builders, office environments, and content creators alike.
Equipped with DDR4 dual-channel memory support up to 3200MHz, the H610M-S PRO ensures smooth multitasking and application performance. MSI’s Memory Boost and Core Boost technologies deliver enhanced signal integrity and optimized power delivery, giving your system the extra edge in stability and speed. The PCIe 4.0 x16 slot allows users to harness the latest GPU performance, while the M.2 Gen3 x4 slot and two SATA 6Gbps ports support ultra-fast storage solutions—ideal for reducing load times and boosting data transfer.
MSI’s hallmark design features make DIY installation straightforward and frustration-free. The inclusion of Steel Armor reinforcement on the PCIe x16 slot offers extra durability for graphics cards, while EZ Debug LEDs help simplify diagnostics by identifying potential hardware issues during boot. Fan management is made easy with Total Fan Control, allowing you to configure up to four temperature targets to optimize cooling and acoustics.
Whether you’re running a compact office workstation or a custom home build, the H610M-S PRO offers flexible I/O including four USB 2.0 ports, two USB 5Gbps Type-A ports on both the front and rear, HDMI™ 1.4 output for 4K@30Hz video, and Realtek® RTL8111H Gigabit LAN for reliable network performance. The Audio Boost system with 7.1-channel HD audio delivers immersive sound, ideal for both work and entertainment.
With its robust 8-channel audio, high-speed connectivity, and support for the latest Intel CPUs, the MSI H610M-S PRO is built to power through demanding tasks, extend component longevity, and ensure seamless daily productivity.
FEATURES:
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR4 Memory, up to 3200(MAX) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
SPECIFICATIONS |
|
| Brand | MSI |
| Series | PRO Series |
| Model | PRO H610M-S DDR4 |
| CPU Support | Supports 14th, 13th & 12th Gen Core Processors |
| Chipset | Intel H610 |
| Memory Support | |
| 14th, 13th & 12th Gen Core Processors | 2x DDR4, Maximum Memory Capacity 64GB |
| Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Video | |
| HDMI | 1x HDMI, Supports HDMI 1.4b, maximum resolution of UltraHD 4K 30Hz |
| Integrated Intel graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 4.0 x16 Physical, x16 Electrical |
| Intel H610 Chipset | 1x PCIe 3.0 x1 Physical, x1 Electrical |
| Storage | |
| Intel H610 Chipset | M.2_1 supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| 2x SATA 6Gb/s Ports | |
| Supports RAID 0, RAID 1 for SATA storage devices | |
| Networking | |
| LAN | Realtek Gigabit Ethernet RJ-45 |
| WiFi | N/A |
| Bluetooth | N/A |
| Audio | |
| Codec | Realtek ALC892 High-Definition Codec |
| 7.1-Channel High Definition Audio with front-panel jack retasking | |
| Connectivity | |
| Ports | 2x USB 5Gbps Type-A Ports |
| 4x USB 2.0 Type-A Ports | |
| 1x PS/2 Combo Port (Keyboard/Mouse) | |
| 1x HDMI 1.4b Port | |
| 3x 3.5mm Audio Jacks | |
| 1x Realtek Gigabit Ethernet RJ-45 LAN | |
| Buttons | N/A |
| General | |
| Internal Connectors | 1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Com Port (JCOM) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| I/O Controller | NUVOTON NCT6687-R Controller Chip |
| LED Displays | 4x EZ Debug Diagnostic LEDs |
| BIOS | 256Mb UEFI AMI BIOS |
| ACPI 6.4, SMBIOS 3.4, Multiple languages | |
| Form Factor | ATX Form Factor, 236.16 x 200mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit (Recommended) | |
| Box Contents | 1x Motherboard |
| 1x Quick installation guide | |
| 1x European Union regulatory notice | |
| 1x SATA 6Gb/s cable | |
| 1x M.2 screw and standoff package (1 set/pack) | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
